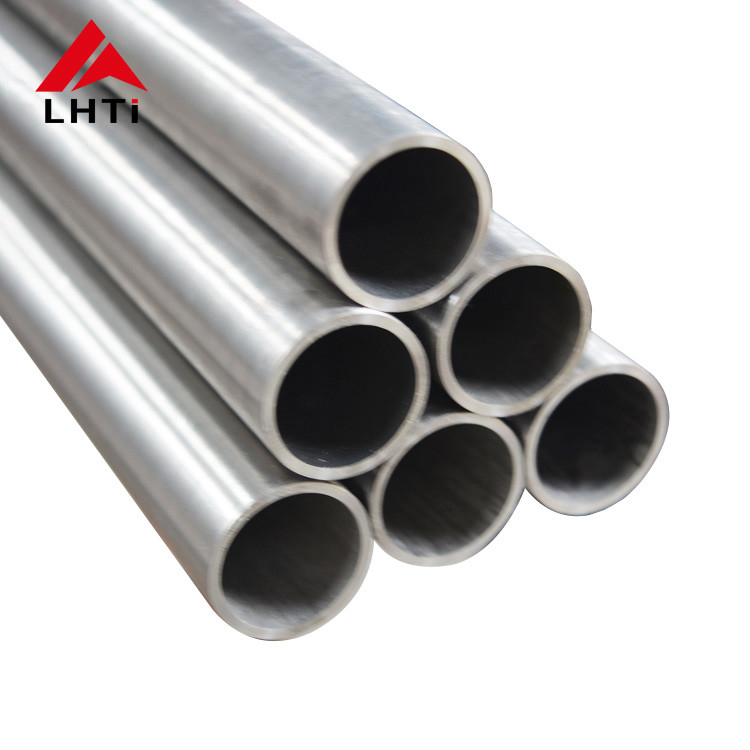

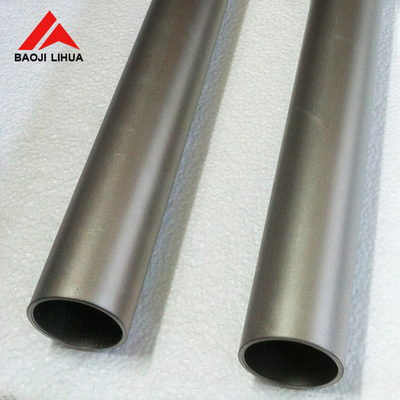

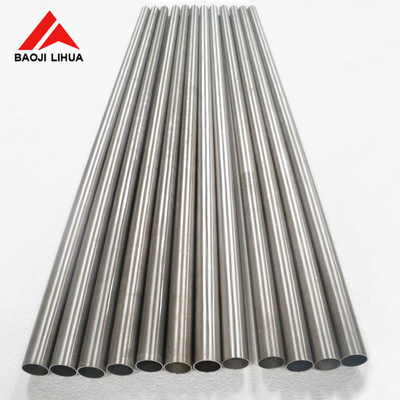

ASTM B338 Pickling Surface Straight Titanium Tube Gr1 GR2

Brand Name:	LHTI
Model Number:	LH-01
MOQ:	1kg of each size
Price:	US dollar $23/kg-US dollar $31/kg
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi China

Certification:

ISO9001

Key Words 1:

Titanium Tube

Key Words 2:

GR2 Titanium Straight Tube

Key Words 3:

Titanium Pipe

Material:

Pure Titanium

Grade:

Grade 2

Purity:

99.5%min

Length:

1000mm In Stock

Surface:

Pickling Surface

Application:

Industrial

Production Time:

3 Working Days

Payment Term:

T/T,Paypal,Western Union Etc

Packaging Details:

Each tube with environmental protection bags,outside is standard plywood case

Supply Ability:

5 tons per month

Highlight:

ASTM B338 Titanium Tube

Titanium Tube Gr1

Industrial Titanium Straight Tube

Product Description

ASTM B338 Titanium Tube Grade 1 GR2

This Titanium Exhaust Pipe GR2 is equipped with advanced process, which has the advantage of light weight, high strength and superior mechanical properties. Due to the high performance, our Titanium Exhaust Pipe GR2 plays an important role in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes. On the other hand, it ensures longer service life for use and there is no special need of maintaining.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
