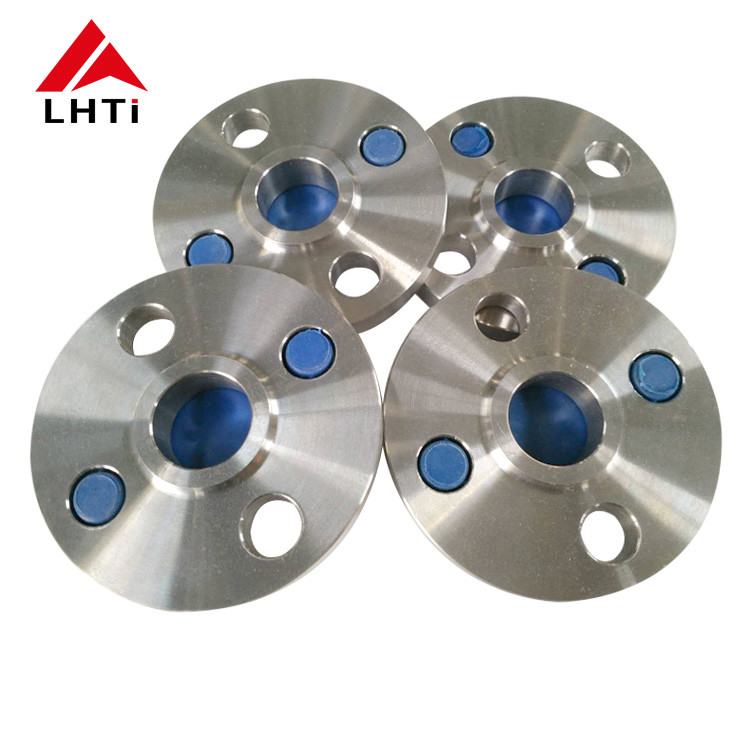

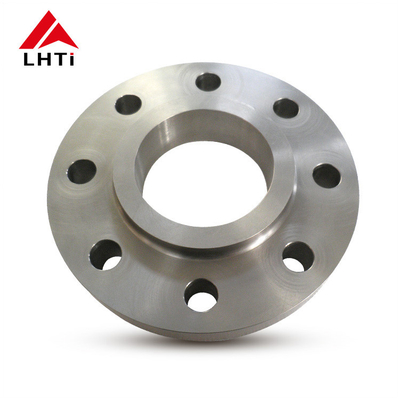

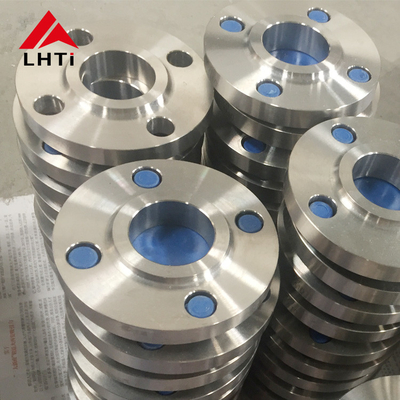

Welding Machining Titanium Flange Polished Surface Gr1 Gr2 Gr5 Gr7 Gr12

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

Threaded Flange

Standard:

ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME

Material:

Gr1 Gr2 Gr5 Gr7 Gr12 Etc.

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

Class150/300/600/9001500/2500

Surface:

Polished

Technique:

Forged Casting

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Welding Machining Titanium Flange

Titanium Blind Flange Gr5

Polished Surface Titanium Pipe Flange

Product Description

Welding Machining Titanium Flange Polished Surface Gr1 Gr2 Gr5 Gr7 Gr12

High-quality titanium flanges available in grades Gr1, Gr2, Gr5, Gr7, and Gr12, featuring precision welding machining and polished surfaces for superior performance in demanding industrial applications.

Key Selection Considerations

Environmental Conditions: Assess pipeline system parameters including temperature, pressure, and medium corrosion properties to ensure proper titanium alloy material and flange type selection
Size and Standard: Match piping system dimensions with relevant industry standards for appropriate titanium flange sizing and connection methods
Seal and Fasten: Ensure correct gasket and bolt selection and installation for reliable flange sealing and connection integrity

Product Specifications

Item Name	Titanium Pipe Flange
Standard	ANSI B16.5, DIN2630~2633, BS etc
Material	Gr1, Gr2
Size	DN10~600
Pressure Rating	0.6~32Mp
Working Temperature	-60°C~250°C
Flange Surface	FF, RF, TG, RJ etc
Quality Control	Ultrasonic Testing & Material Test Report
Packaging	Plywood case lined with foam or as per client request

Technical Parameters

Size Range	1/2"~30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grade	Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7
Available Dimensions	OD: 200-1300mm, ID: 100-900mm, Height: 35-250mm
