Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

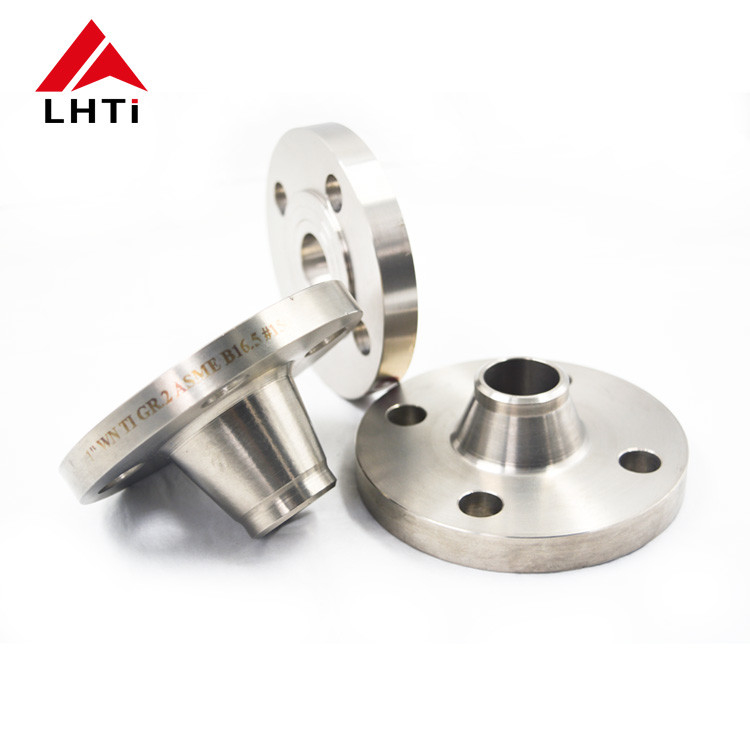

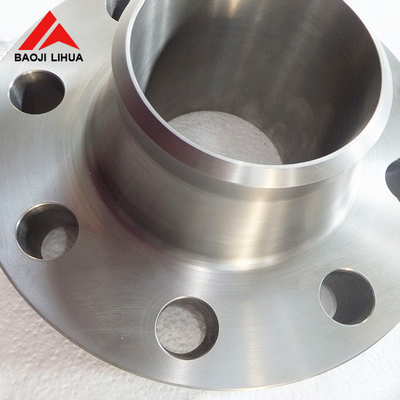

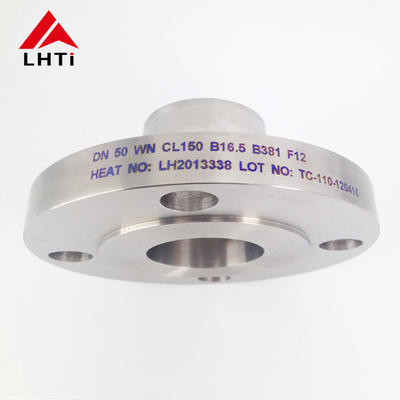

WN RF Welding Neck Titanium Flange ANSI B16.5
When installing titanium flanges, it is crucial to ensure proper alignment and sealing to prevent leakage. The flanges are typically connected using bolts or studs, and gaskets made from suitable materials are used to create a seal between the flange faces.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
