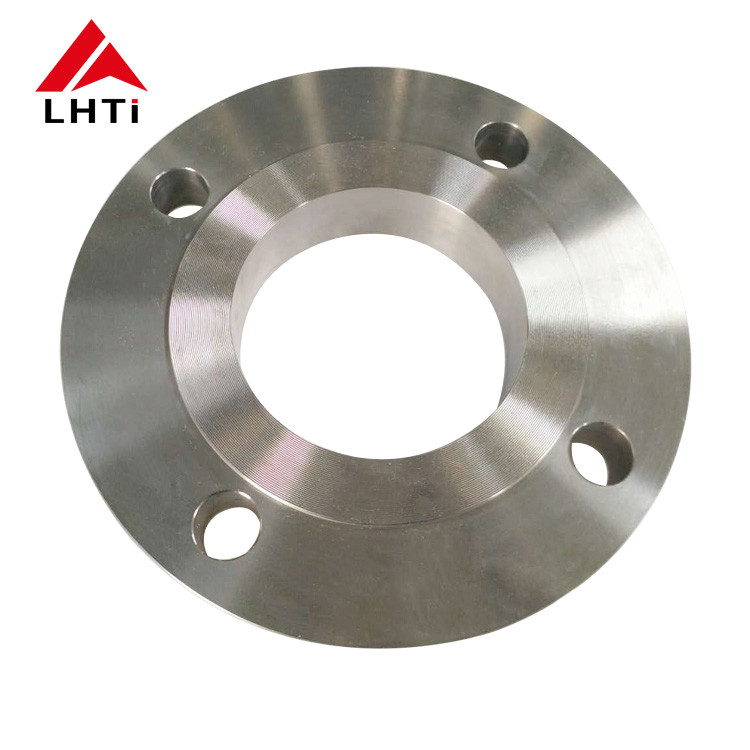

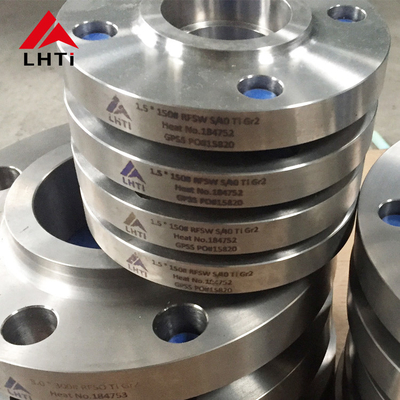

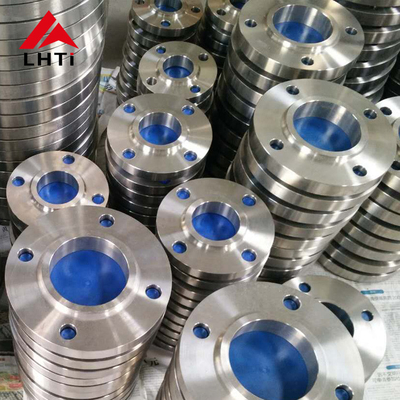

Polished Gr2 Titanium WN Pipe Flange DN 10 - 2000 ASME B16.5

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Polished Titanium WN Flange

Gr2 Titanium Pipe Flange

DN 10 Titanium Flange

Product Description

Polished Gr2 Titanium WN Pipe Flange DN 10 - 2000 ASME B16.5

Product Overview

Gr2 Titanium WN Pipe Flange DN 10 - 2000 ASME B16.5. The manufacturing process of titanium flanges involves machining, forging, or casting titanium or titanium alloy materials. Machining techniques such as milling, drilling, and turning are used to shape the flange, while forging or casting methods are employed to achieve the desired dimensions and mechanical properties. Welding is also commonly used to attach the flanges to pipes or other components.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18
