Polished Titanium Welded Neck Flange Ti6Al4V

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

GR2 Titanium WN Flange

Ti6AL4V Titanium Welded Neck Flange

CNC Machined Polished Titanium Flange

Product Description

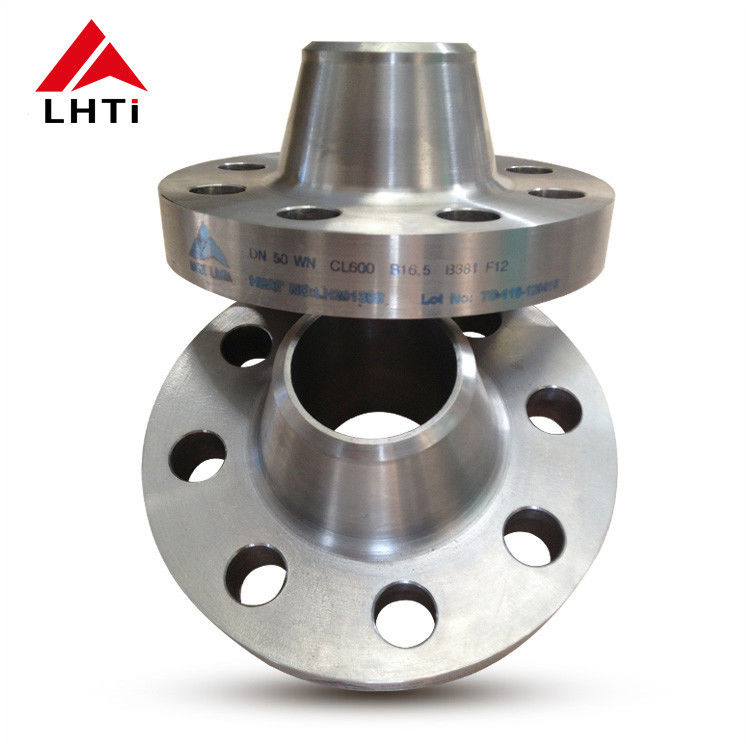

Polished Titanium Welded Neck Flange Ti6Al4V

Titanium flanges are widely used in industries that require resistance to corrosion, such as chemical processing, petrochemical, oil and gas, marine, and aerospace, and are particularly suitable for aggressive environments, high temperatures and high-pressure conditions. This polished weld neck flange is forged and CNC machined in Ti6Al4V (Gr5), Gr2 and other grades with a raised face sealing surface.

Polished Titanium Welded Neck Flange

Technical Specifications

Type	WN, SO, BL, SW, PL, lap joint, customized
Standard	ANSI B16.5, JIS B2220, DIN 2627-2628, ASME, GB/T 9116, ASTM B16.5
Material	Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Sealing Surface	RF
Size	1/2"~30" NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6-PN64, etc.
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing & material test report EN10204.3.1

Chemical Requirements (max %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min	Yield Strength min	Elongation (%)
1	35 KSI / 240 MPa	20 KSI / 138 MPa	24
2	50 KSI / 345 MPa	40 KSI / 275 MPa	20
5	130 KSI / 895 MPa	120 KSI / 828 MPa	10
7	50 KSI / 345 MPa	40 KSI / 275 MPa	20
12	70 KSI / 438 MPa	50 KSI / 345 MPa	18

Applications & Titanium Advantages

This titanium flange is used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump and valve, pipeline, aerospace and ocean industry. Titanium offers high strength at low weight, excellent corrosion resistance and biocompatibility, so flanged joints stay leak-free and durable in aggressive, high-temperature and high-pressure service.

Quality, Customization & Inquiry

LHTi manufactures to ANSI, ASME, DIN, JIS and GB/T standards under ISO 9001 with TUV inspection, and performs ultrasonic testing with a material test report to EN10204.3.1. Types, sizes, pressure classes and surface finish can be customized and OEM service is available. Packaging is foam wrapped in a plywood box for export. Please send your specification for a quotation.
