Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

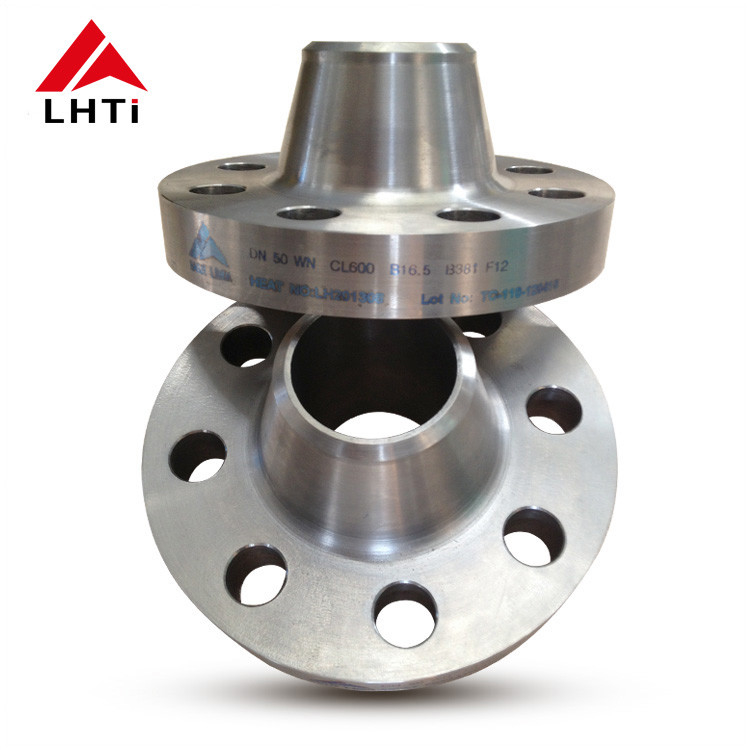

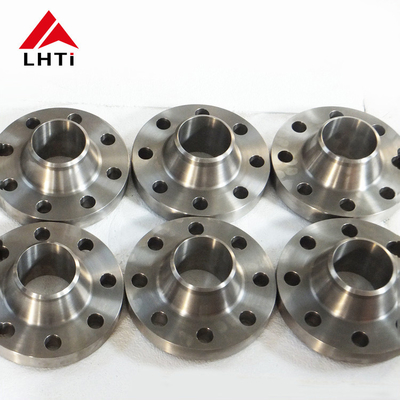

Ti6AL4V GR2 GR5 Titanium Welded Neck Flange
Titanium flanges are widely used in industries that require resistance to corrosion, such as chemical processing, petrochemical, oil and gas, marine, and aerospace. They are particularly suitable for applications involving aggressive environments, high temperatures, and high-pressure conditions.
Chemical requirements | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements | |||||
Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
KSI | MPa | Ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
12 | 70 | 438 | 50 | 345 | 18 |
