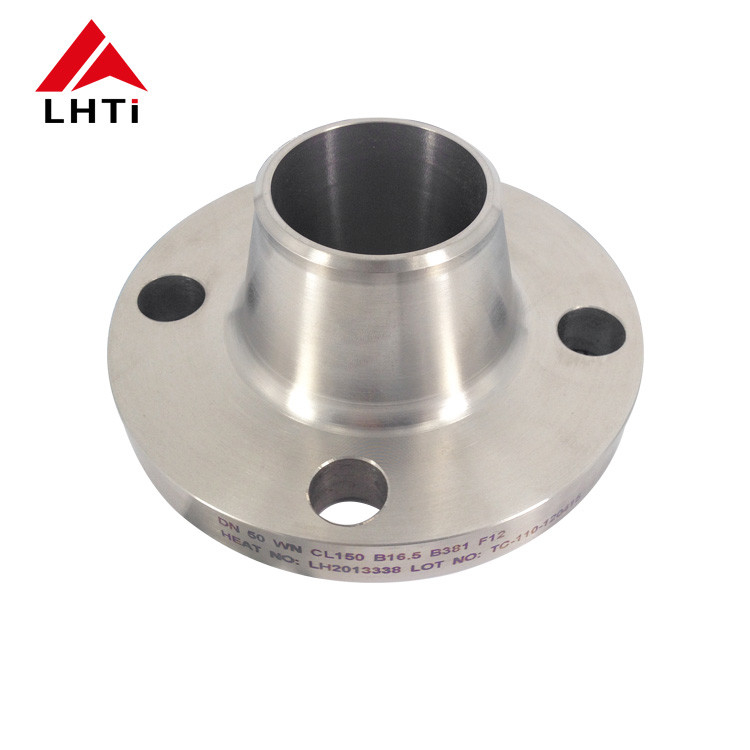

Chemical Industry Titanium WN Welding Neck Flange ASNI ASME B16.5

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Chemical Industry Titanium WN Flange

Welding Neck Flange ASME B16.5

Gr12 WN Titanium Flange

Product Description

Titanium WN Welding Neck Flange ASNI ASME B16.5

Titanium flanges are mechanical connectors used in piping systems to connect pipes, valves, and other equipment. They are specifically designed and manufactured using titanium or titanium alloy materials, which offer exceptional corrosion resistance, high strength-to-weight ratio, and excellent compatibility with various corrosive media.

Specifications:ASTM B381 / ASME SB381
Standard:ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades:Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
Dimensions:ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size:1 / 2” to 18"
Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Physical Properties

Grade	Tensile strength(min)		Yeild strength(min)		Elongation (%)
Grade	ksi	MPa	ksi	MPa	Elongation (%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	438	15
GR12	70	438	50	345	18

Detailed images:

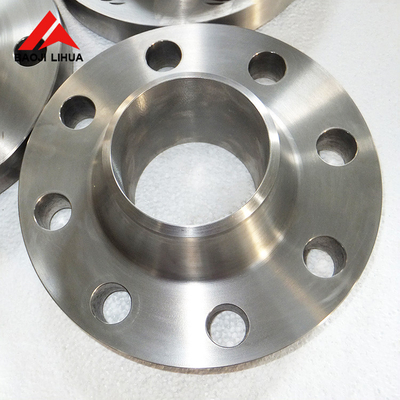

Chemical Industry Titanium WN Welding Neck Flange ASNI ASME B16.5 0

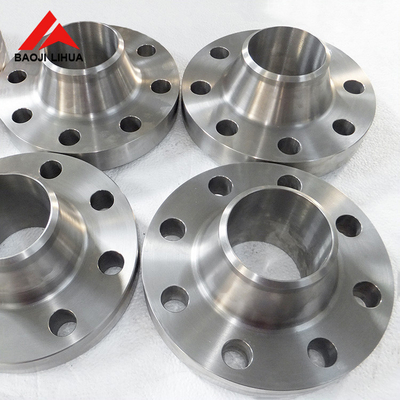

Chemical Industry Titanium WN Welding Neck Flange ASNI ASME B16.5 1
