Titanium Flange
Created with Pixso.

Forged Gr2 Titanium WN RF Flange ANSI B16.5

Forged Gr2 Titanium WN RF Flange ANSI B16.5

Brand Name: LH-Ti
Model Number: LH-BL
MOQ: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pcs per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001, TUV etc.
Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Packaging Details:
Wrapped by foam contained in plywood box for export
Supply Ability:
5000 pcs per month
Highlight:

WN Titanium Flange ANSI B16.5

,

RF Welding Neck Titanium Flange

,

1/2" Titanium RF Flange

Product Description

Forged Gr2 Titanium WN RF Flange ANSI B16.5

This welding neck flange is forged from Grade 2 titanium, CNC machined and finished with a raised face to ANSI B16.5. The long tapered neck is butt welded to the pipe so the joint carries the load smoothly and holds pressure well, which is why a WN flange is often selected for high pressure and high temperature lines. Titanium keeps the joint light and strongly resistant to chlorides, sea water and many acids, and the forged structure gives a dense, uniform grain that machines cleanly and holds its face flat.

Technical Specifications

Type WN welding neck flange
Material Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standard ANSI B16.5, ASTM B16.5, JIS B2220, DIN 2627-2628, ASME, GB/T 9116
Sealing Surface RF (raised face)
Size NPS 1/2 to NPS 24 (DN10 to DN2000)
Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6 to PN64
Technique Forged and CNC machined
Surface Polished
Inspection Ultrasonic testing and material test report EN 10204 3.1

Chemical Composition Requirements (%)

Grade N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile Strength Requirements

Grade Tensile Strength min Yield Strength min Elongation (%)
1 35 KSI / 240 MPa 20 KSI / 138 MPa 24
2 50 KSI / 345 MPa 40 KSI / 275 MPa 20
5 130 KSI / 895 MPa 120 KSI / 828 MPa 10
7 50 KSI / 345 MPa 40 KSI / 275 MPa 20
12 70 KSI / 438 MPa 50 KSI / 345 MPa 18

Product Pictures

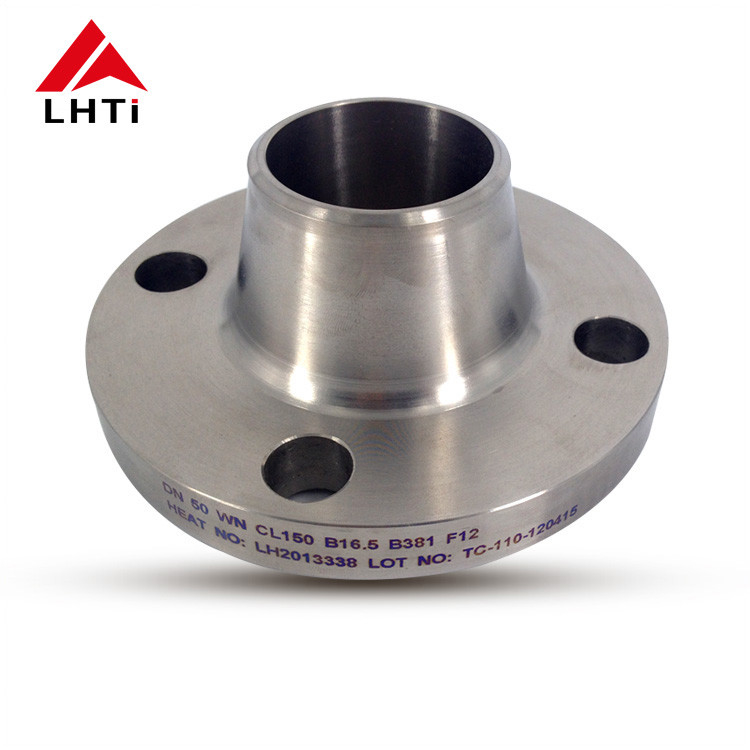

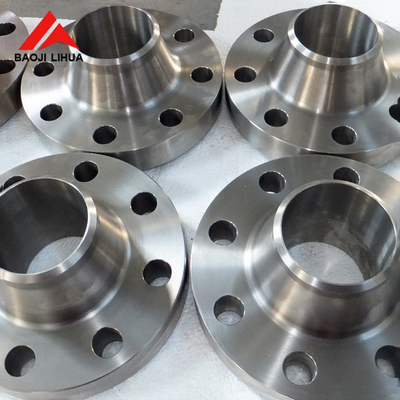

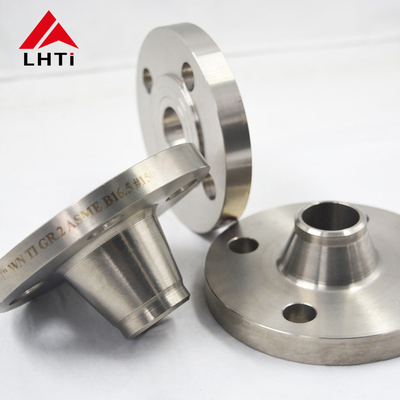

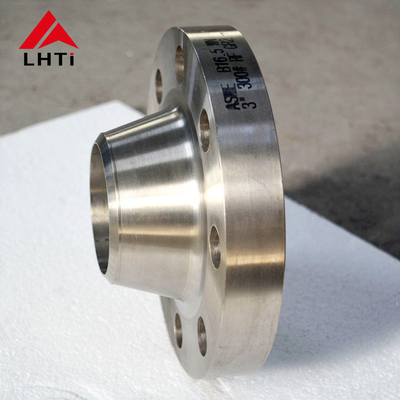

Forged Gr2 titanium WN RF flange ANSI B16.5

Applications and Quality Assurance

Welding neck flanges of this type are used on pumps and valves, pipelines, pressure vessels, chemical and petrochemical plant, aerospace ground equipment and off shore and marine systems that need a light flange which resists chlorides and sea water. Other types in the same range include SO, BL, SW, PL and lap joint flanges. Quality control covers mechanical testing (tensile strength and hardness), chemical analysis by spectro and PMI, dimensional checks from material procurement to final delivery, and full certification documentation, with ultrasonic testing and a material test report to EN 10204 3.1 on request.
