Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

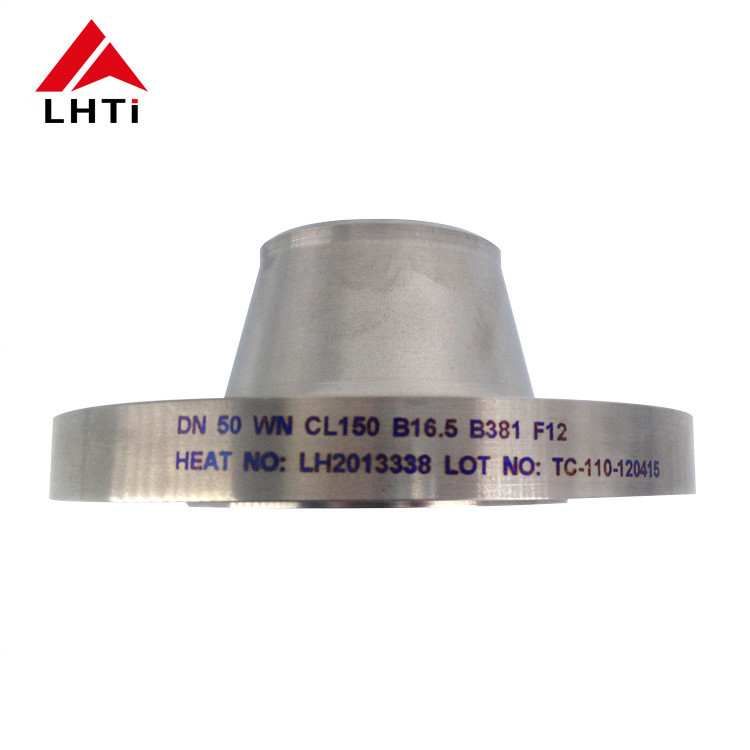

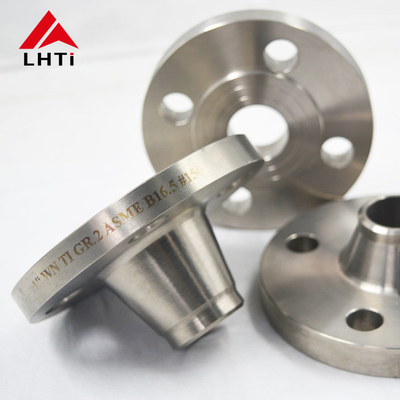

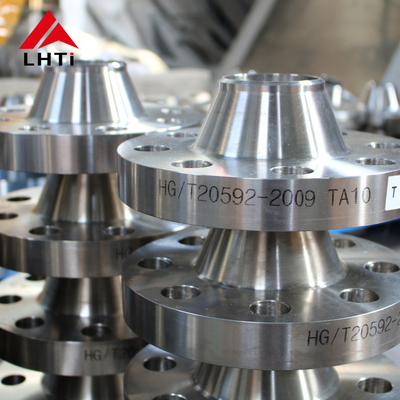

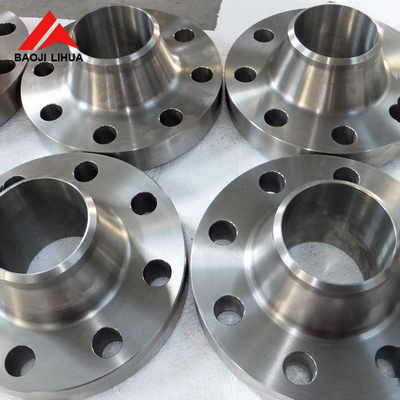

ANSI B16.5 Grade 2 WN welding neck titanium flange
There are holes in Titanium Asme B16.5 Wn Rf Blind flange and bolts make two titanium flanges connected to each other. Titanium flanges can be made by casting, threaded connection or welding.flange joint includes a pair of titanium flanges, a gasket, a number of bolts and nuts. The gasket is put between the contact surfaces of two titaniun flange. After the bolts are tightened,the specific pressure on gasket are up to a certain value, then the gasket are out of shape and fill in contacting surface of two titanium flanges in order to seal flange joint closely.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
