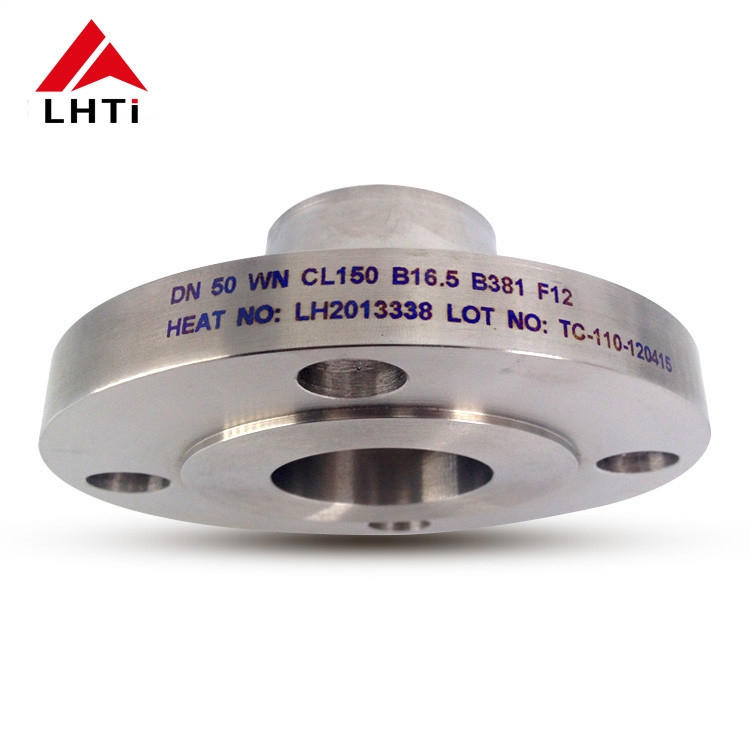

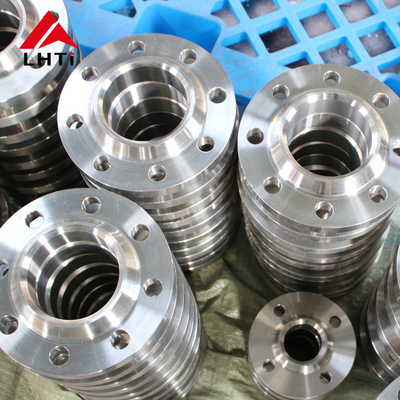

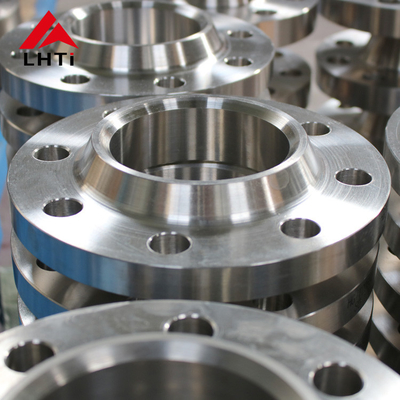

ANSI B16.5 Grade 2 WN Welding Neck Titanium Flange Polished Surface

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Grade 2 WN Titanium Flange

Polished Welding Neck Titanium Flange

Product Description

ANSI B16.5 Grade 2 WN Welding Neck Titanium Flange with Polished Surface

ANSI B16.5 Grade 2 WN Welding Neck Titanium Flange with Polished Surface offers exceptional performance characteristics for demanding industrial applications.

Key Features & Benefits

Superior protection against acid and alkaline corrosion
High mechanical strength with excellent ductility
Outstanding strength-to-weight ratio
Excellent corrosion resistance inherent to titanium alloys
Polished surface finish for enhanced performance

These titanium flanges deliver reliable performance across diverse industries including aerospace, automotive, chemical processing, power generation, oil and gas extraction, medical applications, and sports equipment.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18
