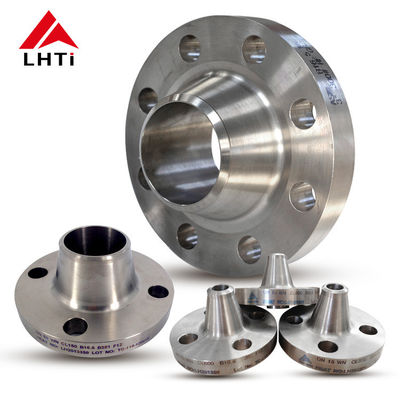

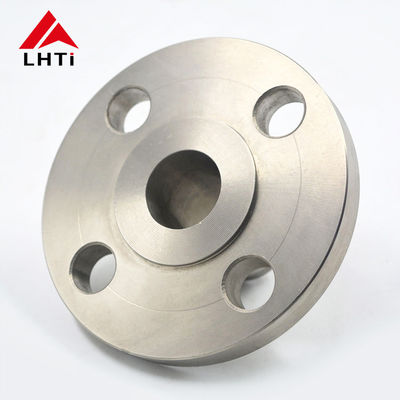

Ti6AL4V GR2 GR5 Titanium Welded Neck Flange For Aerospace Industry - Forged and CNC Machined

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Ti6AL4V Welded Neck Flange

GR5 Titanium Welded Neck Flange

Aerospace Industry Titanium Flange

Product Description

Ti6AL4V GR2 GR5 Titanium Welded Neck Flange For Aerospace Industry

Our titanium welded neck flanges are engineered for demanding aerospace applications, offering exceptional performance in corrosive environments with low density and superior strength characteristics.

Available Flange Types

Blind Flanges
Welding Neck Flanges
Long Welding Neck Flanges
Socked Weld Flanges
Lap Ring Joint Flanges
Threaded Flanges
Slip On Flanges
Plate Flanges
Orifice Flanges

Custom Manufacturing: We offer customized titanium flanges manufactured to your specific drawings and requirements through our precision machine shop.

Industrial Applications

Titanium and titanium alloy flanges serve as critical pipe connections for chemical processing equipment, petrochemical systems, and aerospace components where corrosion resistance and lightweight properties are essential.

Inventory & Supply Capabilities

We maintain comprehensive inventory and supply chain management for various titanium flange types including slip-on, blind, weld neck, orifice, and lap joint configurations.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18
