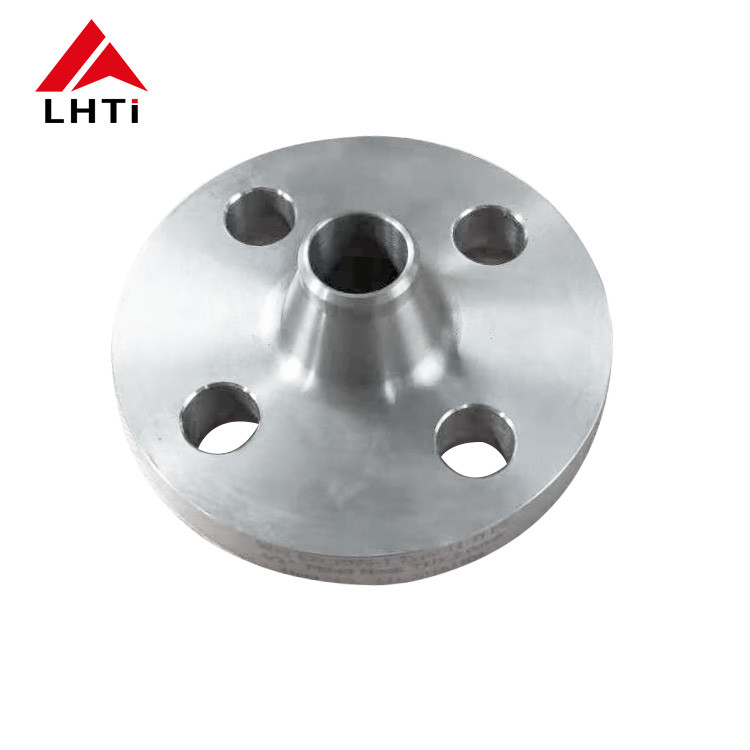

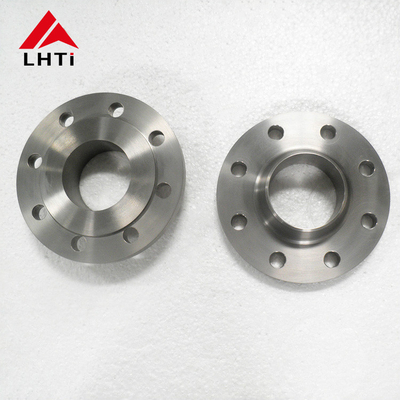

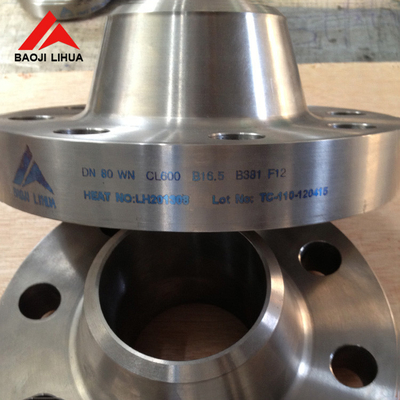

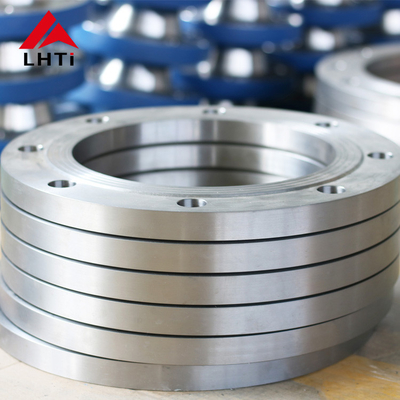

GR2 GR5 Titanium SO Weld Neck Flange For Medical Equipment

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Medical Equipment Titanium SO Flange

GR2 Titanium SO Weld Neck Flange

NPS 24 Titanium Blind Flange

Product Description

GR2 GR5 Titanium SO Weld Neck Flange For Medical Equipment

Titanium Long Weld Neck Flanges are precision components manufactured from high-grade titanium alloys. These specialized flanges are typically custom-made to order rather than stocked as standard inventory items. Smaller LWN flanges can be produced through machining processes using titanium bar or billet stock, with trepanning techniques employed for core material removal.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24%
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20%
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10%
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20%
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18%
