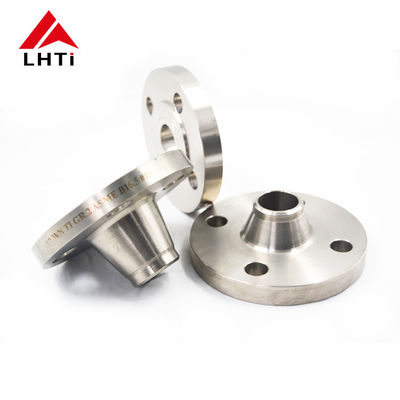

Gr2 Gr7 Gr12 Titanium WN Flange for Chemical Industry ANSI B16.5 Standard

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Chemical Industry Welding Neck Flange

Titanium WN Welding Neck Flange

Gr12 Titanium WN Flange

Product Description

Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange

Designed specifically for the chemical industry, these titanium welding neck flanges provide exceptional corrosion resistance and durability in demanding applications.

Applications

Water conservancy systems
Electric power and power station facilities
Industrial pipe fittings and pressure vessels
Chemical processing equipment

Product Features

Manufactured using precision forging process
Available in multiple titanium grades (Gr1, Gr2, Gr5, Gr7, Gr9, Gr12)
Dimensional tolerances conform to ASME B16.5 standards
Flange bore diameters compatible with ASME B36.9M Sch-40S wall pipe
Standard serrated spiral finish per ASME B16.5
Permanent electro-chemical etching marking
Custom bore diameters and gasket surfaces available upon request

Material Grades Available

Titanium Flanges
Nickel Flanges
Zirconium Flanges

Physical Properties

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
GR1	35 ksi / 240 MPa	20 ksi / 138 MPa	24
GR2	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR5	130 ksi / 895 MPa	120 ksi / 828 MPa	10
GR7	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR9	90 ksi / 620 MPa	70 ksi / 438 MPa	15
GR12	70 ksi / 438 MPa	50 ksi / 345 MPa	18
