Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $25/kg-US dollar $150/kg
Packaging Details: standard export plywood case
Delivery Time: 5-10 days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
99.0% Gr5 Titanium Forged Rings
High tangential strength and ductility make rolled rings well suited for torque, pressure and fatigue resistant components, such as gears, bearings, couplings, flanges, valve bodies, rotor spacers among others. Compared with castings that may present high gas porosity, rolled rings eliminate that problem. Every ring is made to order and we can supply titanium Seamless Rolled Rings from one piece to high volume orders.
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

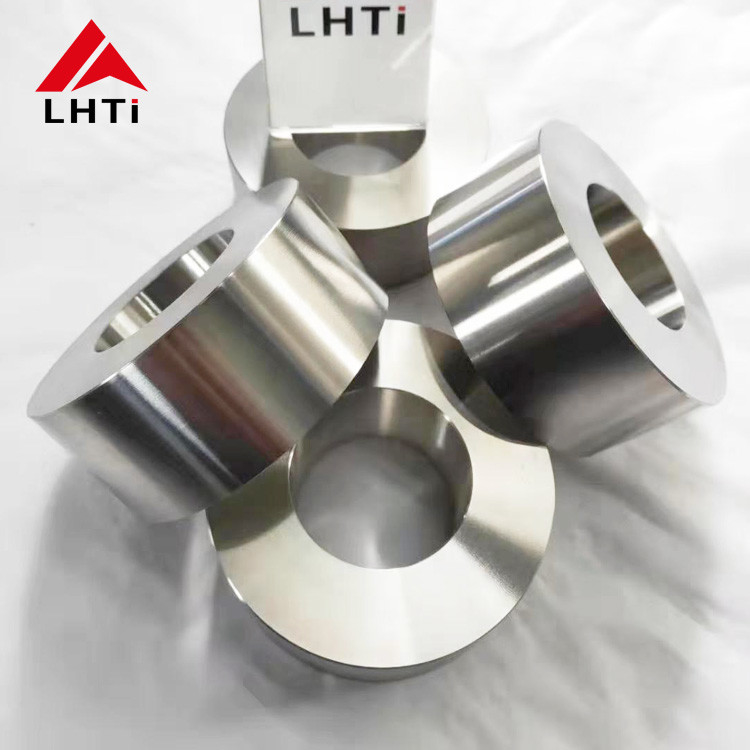

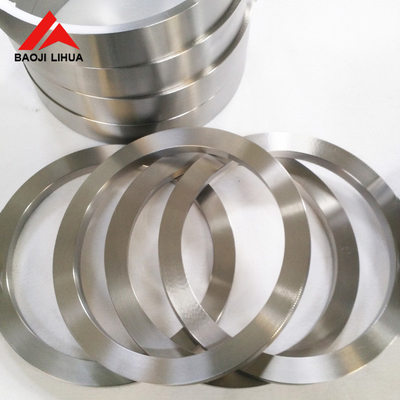

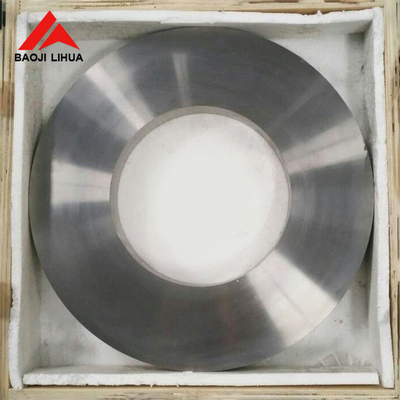

Product picture:
