Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $25/kg-US dollar $150/kg
Packaging Details: standard export plywood case
Delivery Time: 5-10 days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
AMS4928 Forged Titanium Rings 6al4v Gr5
A titanium Seamless Rolled Ring is made in three steps. This process directs grain flow in tangential and radial directions and provides the pieces with the mechanical properties such as strength, ductility, and resistance to impact and fatigue. First: a preform is made on a press out of an ingot cut Second: a hole in punched on the center creating the form of a doughnut, Third: the preform is placed on a ring mill that expands the material to the right dimensions. Advantages of titanium Seamless Rolled Ring Forging For use in Oil & Gas, Power Generation, Mining, Aerospace and other critical applications, Performance-wise, there is no equal for Rolled Rings.
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

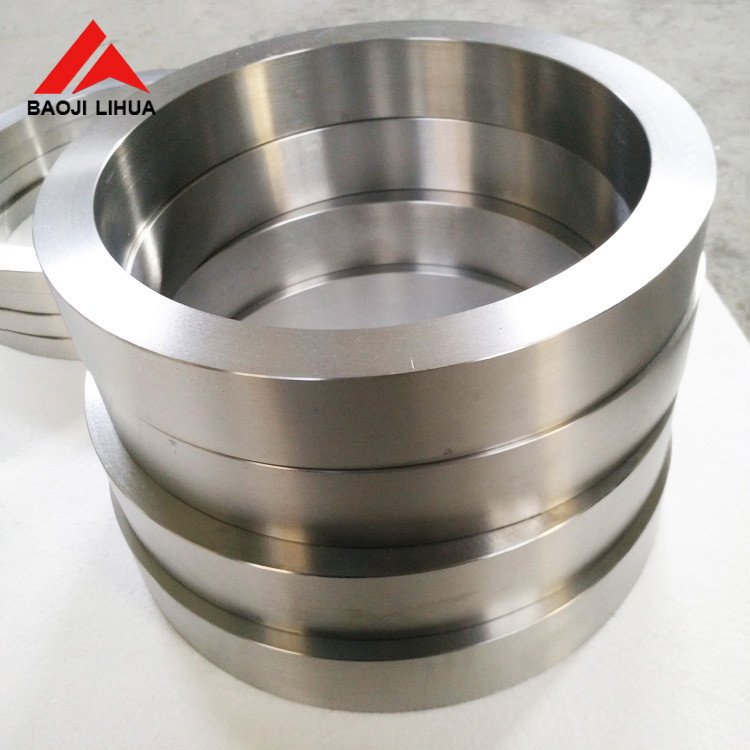

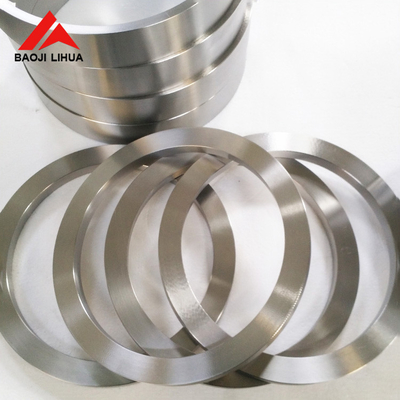

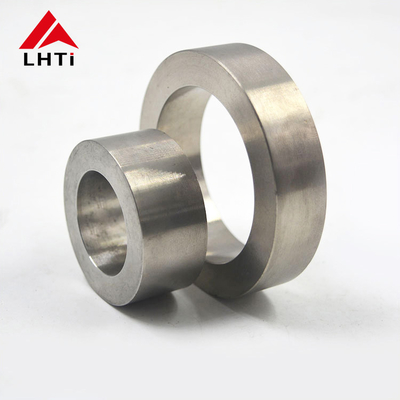

Product picture:
