Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $25/kg-US dollar $150/kg
Packaging Details: standard export plywood case
Delivery Time: 5-10 days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Grade: |
Gr1,Gr2,Gr5,Gr7,Gr12 Etc |
Technique: |
Forged,rolling |
Application: |
Chemical Industrial Or Aeronautics |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.0%min |
Dimensions: |
50-600mm Or As Your Requirment |
Material: |
Titanium |
Standard: |
ASTM B381/AMS4928 Etc |
Surface: |
Bright Surface |
Shape: |
Round Ring |
Density: |
4.51/m^3 |
Key Words: |
Forged Titanium Ring |
Titanium Round Ring AMS4928 6al4v
The Titanium Forged Ring ASTMB381 produced by Baoji LHTI has a longer service life. Compared with ordinary metals on the market, our ASTM B381 TC4 6AL4V titanium forging ring maintains good ductility and toughness at low temperatures. , With high performance. On the other hand, it has the longest decay time after mechanical and electrical vibration. In fact, it can be used as an ideal material for tuning forks, medical ultrasonic pulverizer vibration components and high-quality speaker diaphragms.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

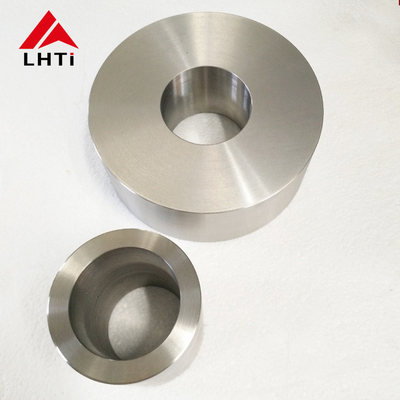

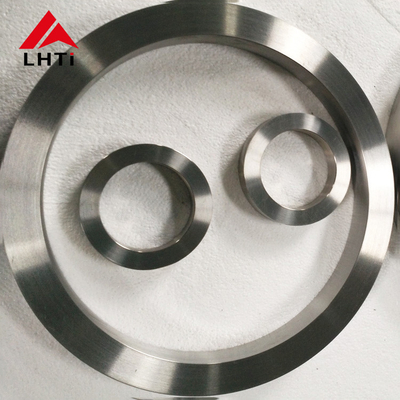

Product picture:
