Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Type: |
WN , SO , BL ,SW, PL, Lap Joint, Customized. |
Standard: |
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
Material: |
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9 |
Application: |
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc. |
Sealing Surface: |
RF |
Size: |
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure: |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/ |
Surface: |
Polished |
Technique: |
Forged And CNC Machined. |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |

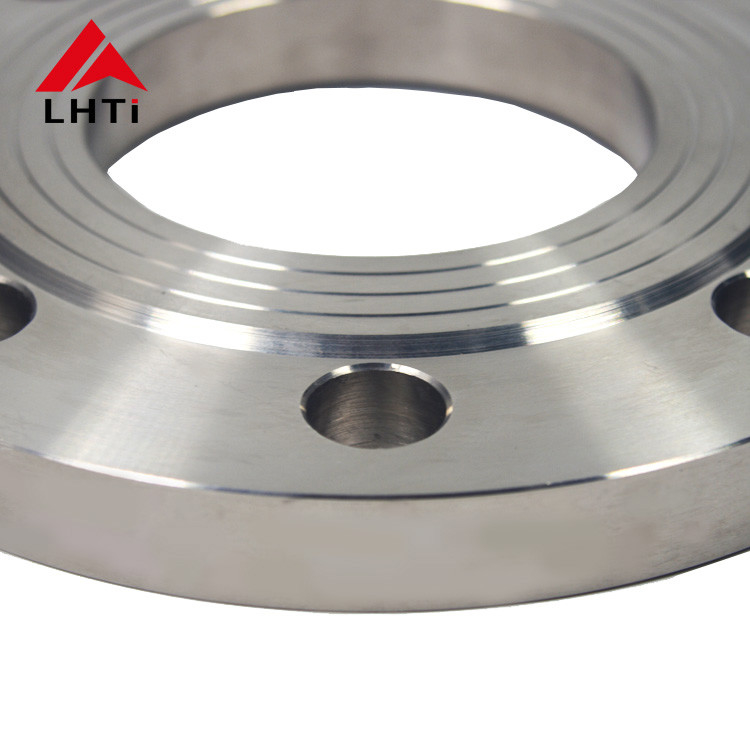

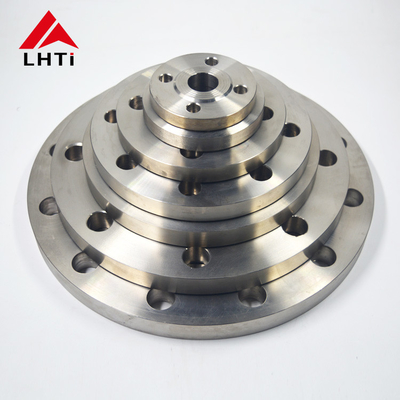

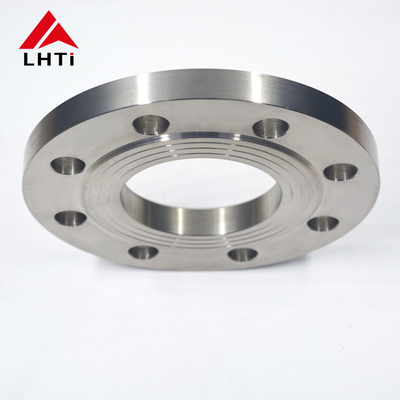

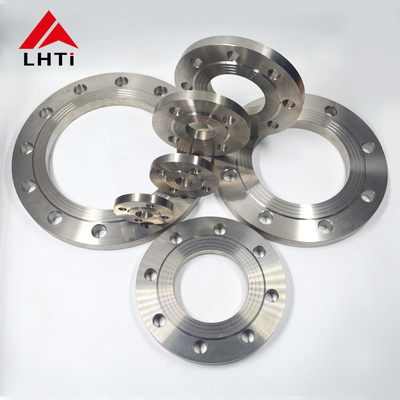

Titanium Welded Neck Flange Forged Flange Flat Welded Flange
Titanium Flange Type
WN/Welding neck flange. SO/Slip on flange
Line spade, and spacer, paddle blind, paddle spacer
PL /Plate flange. BL/Blind flange
Th/Threaded flange. SW/Socket welding flange
Orifice plate, pipe plate, bleed ring, plate flange
Orifice flange, reducing flange. API flange
Integral/compact flange, spectacle blind
LF/SE(lapped flange/stub end), LWN/Long welding neck flange
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
