ANSI B16.5 Grade 2 WN RF welding neck titanium flange

Brand Name:	LHTI
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

ANSI B16.5 titanium welding neck flange

Grade 2 titanium RF flange

welding neck titanium flange with RF

Product Description

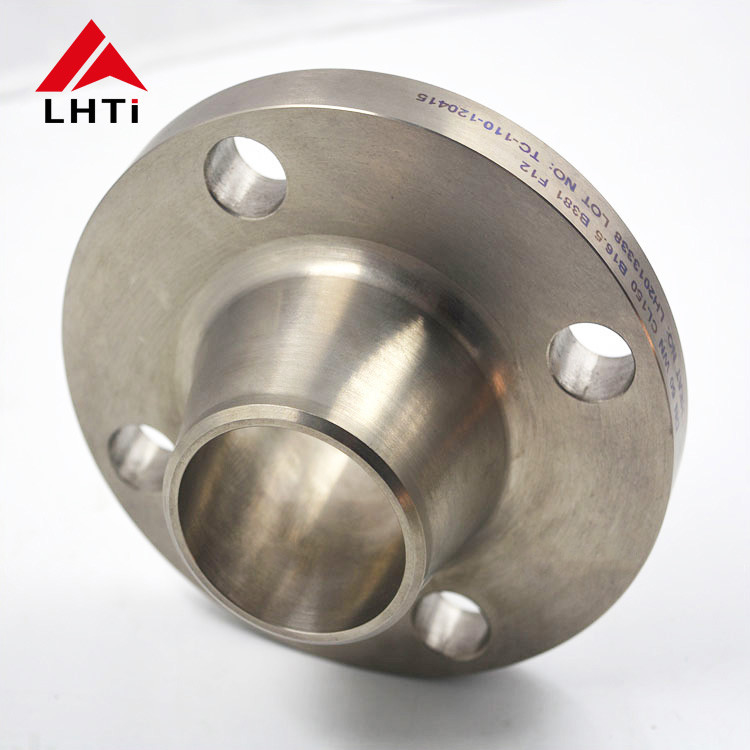

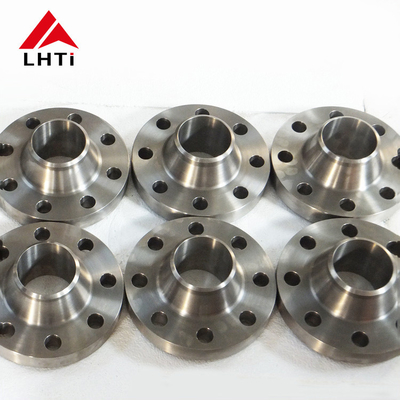

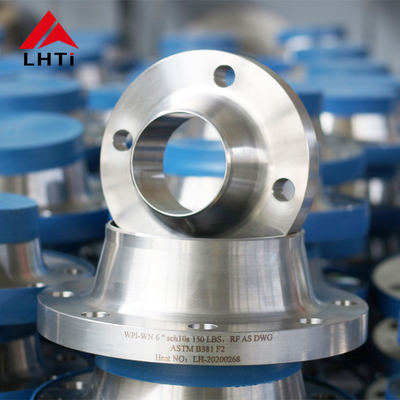

ANSI B16.5 Grade 2 WN RF Welding Neck Titanium Flange

Titanium flanges are essential components widely used in water conservancy, electric power, power stations, pipe fittings, industrial applications, and pressure vessels. These flanges are manufactured using advanced forging processes from high-quality titanium materials, making them ideal for demanding mechanical and chemical industry applications.

In addition to titanium flanges, we also manufacture nickel flanges, zirconium flanges, and other specialized metal flanges to meet diverse industrial requirements.

Grade 2 Titanium Advantages

Grade 2 titanium is the most commonly requested material in the pipeline valve and fittings industry, offering exceptional strength and superior corrosion resistance. Titanium components are particularly valuable in applications requiring high temperature and high pressure service while maintaining lightweight properties. Key applications include aerospace industry airframe components, advanced military equipment, offshore drilling components, and heat exchanger systems where excellent corrosion resistance in marine and chloride environments is essential.

ASME B16.47 Titanium Flange Specifications

Material Options: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)

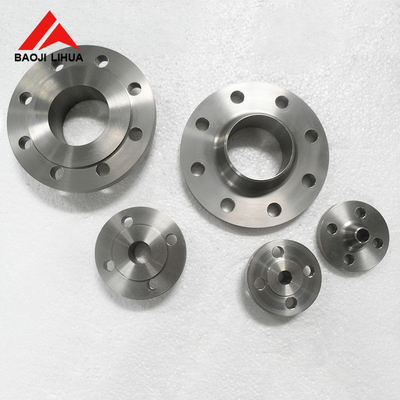

Flange Types:

Plate Flange
Flat Flange
Slip on Flange
Welding Neck Flange
Long Welding Neck Flange
Blind Flange
Socket Welding Flange
Thread Flange
Screwed Flange
Lap Joint Flange

Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove

Size Range: 1½" to 120" (DN40 to DN3000)

Ordering & Shipping Information

Minimum Order Quantity: 1 piece
Price Terms: EXW factory, FOB, C&F, CIF
Payment Methods: T/T, L/C, West Union, Money Gram
Packaging: Standard export plywood case or custom packaging as requested

Applications

Construction, petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage systems, light and heavy industry, plumbing, and electrical applications.

Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and other global markets.

Physical Properties

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
GR1	35 ksi / 240 MPa	20 ksi / 138 MPa	24
GR2	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR5	130 ksi / 895 MPa	120 ksi / 828 MPa	10
GR7	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR9	90 ksi / 620 MPa	70 ksi / 438 MPa	15
GR12	70 ksi / 438 MPa	50 ksi / 345 MPa	18
