Non Magnetic Titanium Alloy Wire 0.2mm-10mm

Name: Non Magnetic Titanium Alloy Wire 0.2mm-10mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium wire
Price: 171.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium wire

Detail Information

Product Description

Detail Information

Place of Origin:

China

Thermal Conductivity:

21.9-23.9W/m·K

Boiling Point:

3287℃

Melting Point:

1668℃

Length:

0.5-200m

Yield Strength:

800-2000MPa

Elongation:

20-50%

Material:

Titanium

Diameter:

0.2-10mm

Highlight:

Aerospace Titanium Wire

Non Magnetic Titanium Alloy Wire

0.2mm Titanium Alloy Wire

Product Description

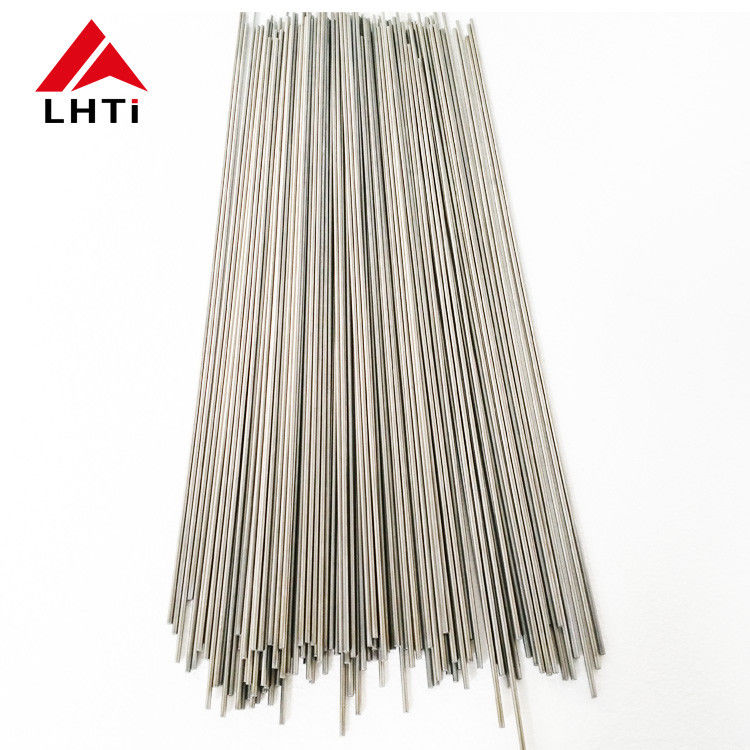

Non Magnetic Titanium Alloy Wire 0.2mm-10mm

Non magnetic titanium alloy wire is a high-end product developed by LHTi for aerospace, medical, automotive, chemical and electrical industries. It combines high tensile and yield strength with good elongation over a wide diameter range, and can be supplied in several forms including titanium wound wire, titanium threaded wire, titanium corrugated wire and titanium mesh wire.

Non Magnetic Titanium Alloy Wire

Technical Specifications

Product Name	Titanium Wire
Material	Titanium
Diameter	0.2-10 mm
Length	0.5-200 m
Tensile Strength	1000-2500 MPa
Yield Strength	800-2000 MPa
Elongation	20-50%

Physical Properties

Property	Value
Thermal Conductivity	21.9-23.9 W/m·K
Specific Heat	0.124-0.132 KJ/Kg·K
Electrical Resistivity	4.9-5.1 μΩ·m
Melting Point	1668 ℃
Boiling Point	3287 ℃

Available Types

Type	Description
Wound wire	Titanium wire wound on spools for continuous feeding
Threaded wire	Titanium wire for threading and fastening applications
Corrugated wire	Titanium wire with a corrugated profile
Mesh wire	Titanium wire for woven mesh and screening

Applications & Titanium Advantages

This non magnetic titanium alloy wire is widely used in aerospace, medical, automotive, chemical and electrical industries. Titanium is non magnetic, light, strong and highly corrosion resistant, so the wire keeps its performance in demanding environments and supports long service life in precision and structural applications.

Quality, Customization & Inquiry

LHTi supplies this titanium wire with strict quality control and offers OEM and ODM customization for diameter, length and form. Please send your drawing or specification for a quotation.
