AWS A5.16 ERTi-1 ERTi-2 Titanium Welding Wire

Brand Name:	LH
Model Number:	LHTS
MOQ:	1kg
Price:	USD15.00-29.00 per kg
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	20000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Material:

Pure Titanium, Alloy Titanium

Straight Wire Length:

1000mm

MOQ:

1kg

Grade:

Erti-1 Erti-2

Diameter:

2mm 2.4mm 3mm 3.2mm Or As Your Request

Shape:

Straight, Spool, Coil

Application:

Welding

Product Name:

Titanium Welding Filler Wire

Packaging Details:

Plastic bag with laber, outside plastic box, then plywod box

Supply Ability:

20000 kg per month

Highlight:

titanium alloy wire

pure titanium wire

Product Description

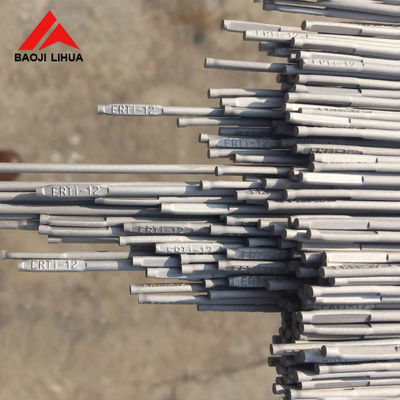

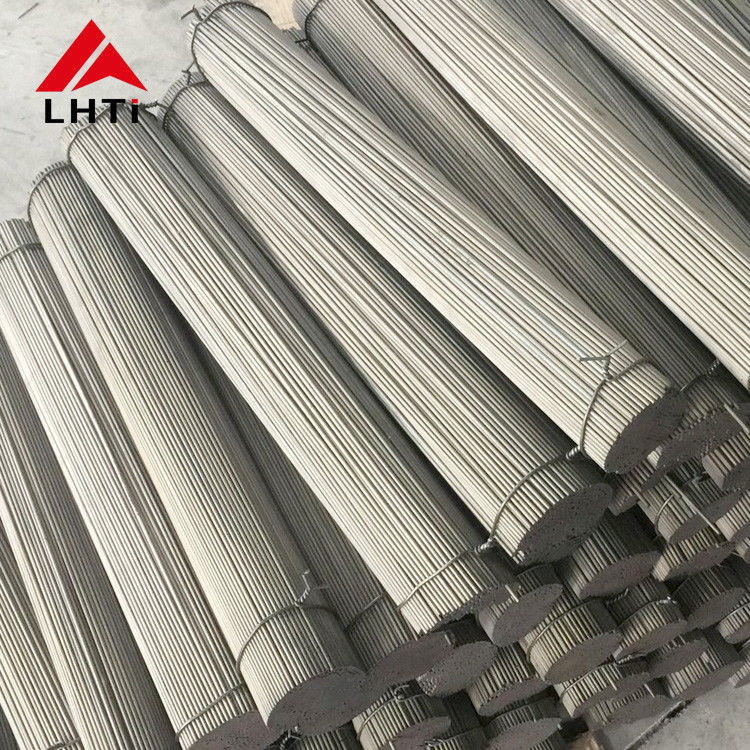

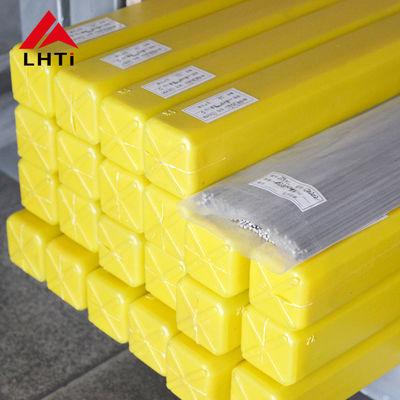

AWS A5.16 ERTi-1 ERTi-2 Titanium Welding Wire

This titanium welding filler wire is manufactured to AWS A5.16 in ERTi-1 and ERTi-2, made from pure titanium and alloy titanium. It is available in 1mm, 2mm, 2.4mm, 3mm and 3.2mm diameters (or as your request) in straight, spool or coil form, with 1000mm straight wire length, for TIG welding of commercially pure titanium and its alloys.

Titanium Welding Wire

Technical Specifications

Product Name	Titanium welding filler wire
Standard	AWS A5.16
Grade	ERTi-1, ERTi-2
Material	Pure titanium, alloy titanium
Diameter	2mm, 2.4mm, 3mm, 3.2mm or as your request
Straight Wire Length	1000mm
Shape	Straight, spool, coil
Application	Welding

Tensile Requirements

ERTi	Tensile Strength min (MPa)	Yield Strength min (MPa)	Elongation (%)
1	240	138	20
2	345	275	18
5	895	828	10
7	345	275	18
9	620	483	15
12	483	345	18

Filler Metal Selection Guide

Base Metal Grade	Normal Composition	Recommended Filler Metal
Grade 1	Unalloyed Ti CP1	ERTi-1
Grade 2	Unalloyed Ti CP2	ERTi-2
Grade 4	Unalloyed Ti CP4	ERTi-4
Grade 5	Ti 6Al-4V	ERTi-5
Grade 7	Ti 0.15Pd	ERTi-7

Chemical Composition (AWS A5.16)

Grade	UNS No.	C	O	N	H	Al	V	Pd
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	-	-	0.12-0.25

Applications & Titanium Advantages

This titanium welding filler wire is used for welding titanium pipe, plate and vessels in chemical, aerospace and industrial fabrication. Titanium filler metals match the base metal for strength and corrosion resistance and protect the weld from contamination, so joints keep high integrity and long service life.

Quality, Customization & Inquiry

LHTi supplies under ISO 9001:2015 with TUV, SGS and BV inspection and material certificates, following ASTM, DIN, UNS and GB/T standards. Diameters, packaging and wire form can be customized and discount is available according to order quantity. Please send your specification for a quotation.
