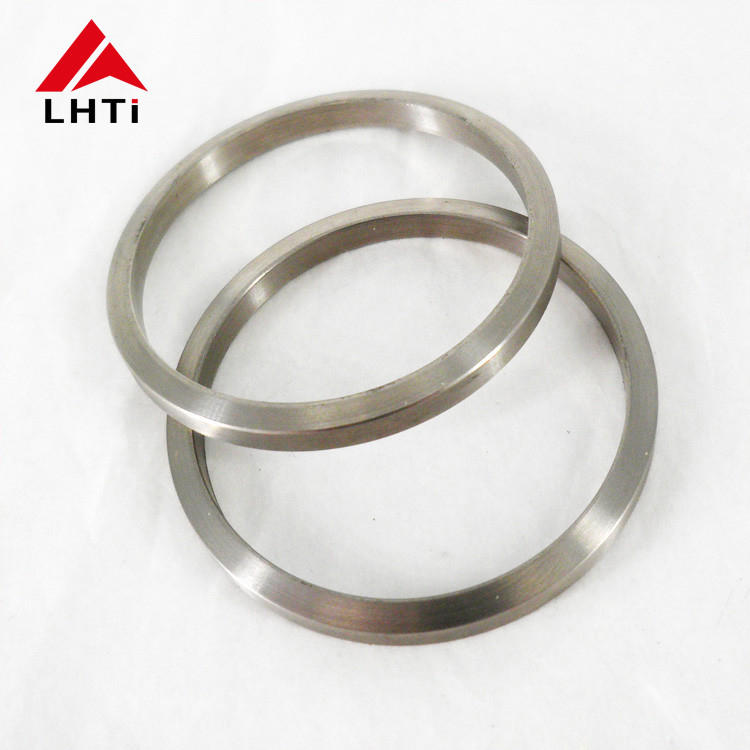

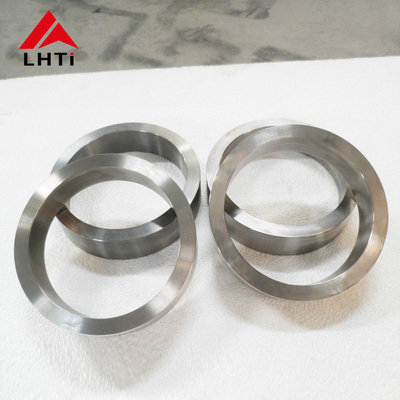

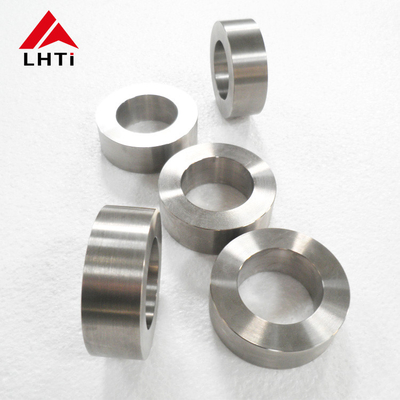

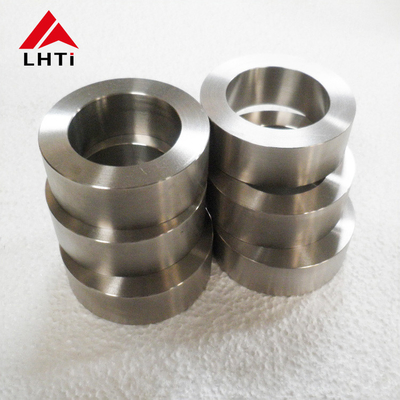

Seamless Forged Titanium Ring DN150 PN10 ASTM B381 Bright Surface

Brand Name:	LHTI
Model Number:	LH-12
MOQ:	1 piece
Price:	US dollar $25/kg-US dollar $150/kg
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji Shaanxi China

Certification:

ISO9001

Grade:

Gr1,Gr2,Gr5,Gr7,Gr12 Etc

Technique:

Forged,rolling

Application:

Chemical Industrial Or Aeronautics

Powder Or Not:

Not Powder

Ti Content (%):

99.0%min

Dimensions:

50-600mm Or As Your Requirment

Material:

Titanium

Product Name:

DN150 PN10 ASTM B381 GR2 GR5 GR7 GR12 Titanium Seamless Forged Rings

Color:

Natrual Metal

Keyword:

Seamless Rolled Rings

Standard:

ASTM B381/AMS4928 Etc

Surface:

Bright Surface

Shape:

Round Ring

Density:

4.51/m^3

Key Words:

Forged Titanium Ring

Packaging Details:

standard export plywood case

Supply Ability:

5 tons per month

Highlight:

PN10 Forged Titanium Ring

Seamless Forged Titanium Ring

Bright Titanium Wedding Rings

Product Description

Seamless Forged Titanium Ring DN150 PN10 ASTM B381 Bright Surface

In the industrial world, forged Titanium is valued for having a very attractive combination of properties such as high strength, low density, resistance to elevated temperatures and a high corrosion resistance. It has become one of the most popular metals in the marine and aerospace industries due to its resistance to corrosion, particularly in seawater and chlorine environments.

Titanium Forged Ring

Product Names	Dimensions(mm)				Grade	Standards
Product Names	Outer Diameter	Inner Diameter	Height	Thickness	Grade	Standards
Ring	200~400	100~300	35~120	40~150	GR1,GR2, Gr5,Gr7,Gr12	ASTM B381/AMS4928
	400~700	150~500	40~160	40~250
	700~900	300~700	50~180	40~300
	900~1500	400~900	70~250	40~400

Grade	State	Tensile strength(min)		Yeild strength (min)		Elongation (%)
Grade	State	Ksi	MPa	ksi	MPa	Elongation (%)
GR 5	(M)Annealed	130	895	120	828	10
GR 7	(M)Annealed	50	345	40	275	20
GR 9	(M)Annealed	90	620	70	438	15
GR 12	(M)Annealed	70	438	50	345	18

Dimension	OD(Max 6000mm)×ID(Max 5900mm)×L(max length 1000mm)
Titanium Grade	Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23
Certification	ISO 9001:2015 & Gold suppier on ALIBABA, Material Mill Test Report
Standard	ASTM B381, ASME SB381, AMS, MIL, DIN, BS, JIS, GB/T, ISO, etc.
Specification	Customized as request
Process	Forged , Rolling , Grinding, cold press molding
Type	Including titanium seamless rolled rings, forged rings, and casted rings The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings
Application	1. Electroplating; 2. Chemical engineering & Petrochemical technology;
