ASTM B348 AMS 4928 Titanium Alloy Bar Gr5

Brand Name:	LHTi
Model Number:	Ti bar
MOQ:	10kg
Price:	$20-$30/kg
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	5 Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

China baoji

Certification:

ISO9001:2015

Grade:

Gr5

Condition:

Annealed

Material:

Ti6Al4V Titanium Sponge

Standard:

ASTM B348 AMS4928

Key Word:

Titanium Alloy Bar

Shape:

Round

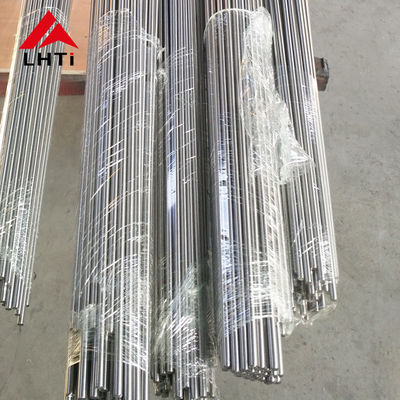

Packaging Details:

Packing products in wooden case.

Supply Ability:

5 Ton per month

Highlight:

Alloy Titanium Bar AMS4928

GR3 Titanium Round Bar

Round Alloy Titanium Bar

Product Description

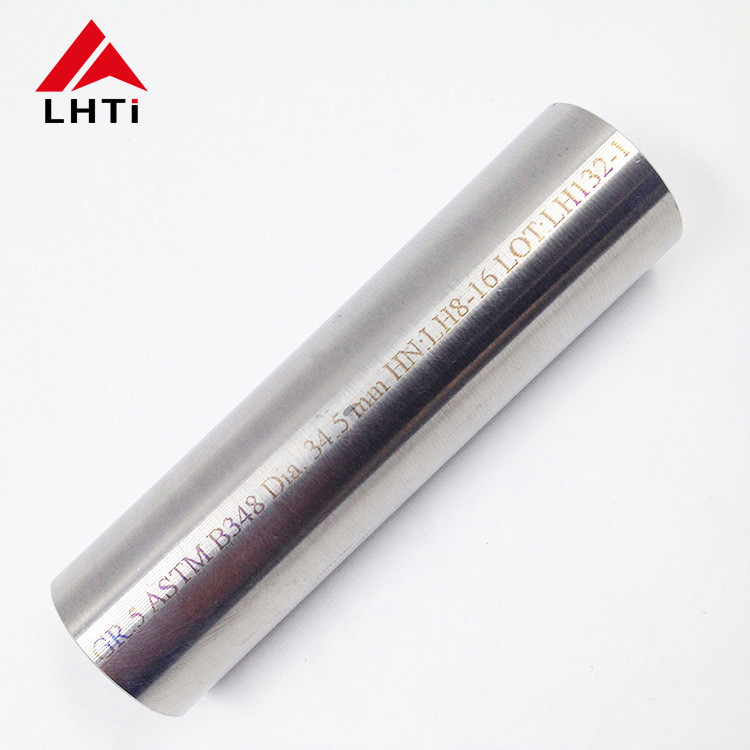

ASTM B348 AMS 4928 Titanium Alloy Bar Gr5

This titanium alloy bar is produced to ASTM B348 and AMS 4928 in Gr1, Gr2, Gr3, Gr5 and Gr7, in the annealed condition with a polished or pickled surface. It is supplied in round, square, flat and hex shapes from 6 mm to 350 mm diameter and up to 6000 mm in length, and is used for electronic, chemical, pharmaceutical, steel and ceramic parts. The bar has a polished surface free from cracks and pitting, with flat ends that keep the length tolerance.

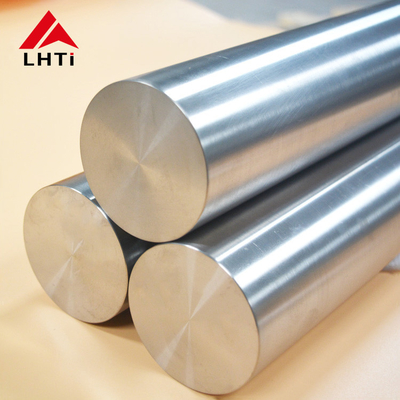

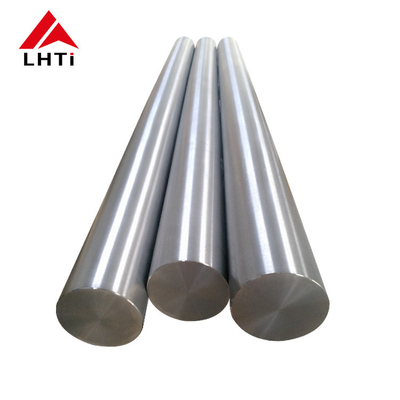

Annealed ASTM B348 titanium alloy bar

Technical Specifications

Item	Titanium bar / titanium rod
Standard	ASTM B348, AMS 4928
Material	Gr1, Gr2, Gr3, Gr4, Gr5
Grade	Gr5
Shape	Round, square, flat, hex
Diameter	6 mm - 350 mm
Length	Max 6000 mm, or as required
Surface	Polishing, pickling
Condition	Annealed

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
5	130 [895]	120 [828]	10
7	50 [345]	40 [275]	20
12	70 [438]	50 [345]	18

Applications & Titanium Advantages

This titanium bar is used in the electronic, chemical and pharmaceutical industries, and for steel, ceramic, cutting tool, superconducting material and alloying applications. Titanium alloy bar combines low density with high strength, excellent corrosion resistance and stable performance at both high and low temperature, which helps machined parts keep their accuracy over a long service life.

Quality, Customization & Inquiry

LHTi produces this titanium bar under ISO 9001:2015 and TUV quality control, and material test certificates to EN 10204 3.1 are available. Custom diameters, lengths and shapes are offered, and goods are packed in wooden cases. Please send your drawing or specification for a quotation.
