GR2 GR5 Titanium Blind Flange with High Yield Strength and 1/2"~30"NB Size Range for 150#~2500# Pressure Applications

GR2 GR5 Titanium Blind Flange with High Yield Strength and 1/2

GR2 GR5 Titanium Blind Flange with High Yield Strength and 1/2"~30"NB Size Range for 150#~2500# Pressure Applications

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

RF

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

CNC Machined Titanium SO Flange

,

Medical Titanium Blind Flange

,

GR5 Titanium Weld Neck Flange

Product Description

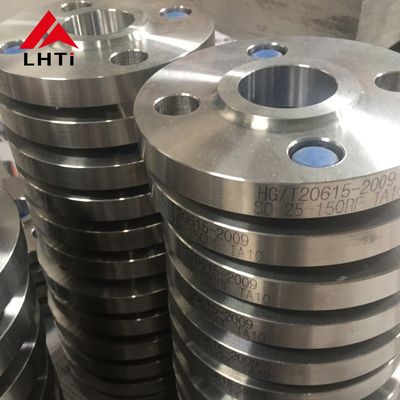

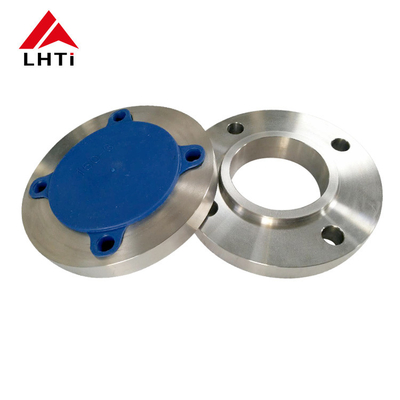

Titanium Blind Flange GR2 GR5 Titanium SO Weld Neck Flange

GR2 GR5 Titanium SO flange Slip On flange ASME ANSI B16.5

Chemical Requirements

N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	0.12~0.25	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	0.2~0.4	0.6~0.9	/	bal

Tensile Requirements

Grade	Tensile strength (min)	Yield strength (min)	Elongation (%)
	KSI \| MPa	Ksi \| MPa
1	35 \| 240	20 \| 138	24
2	50 \| 345	40 \| 275	20
5	130 \| 895	120 \| 828	10
7	50 \| 345	40 \| 275	20
12	70 \| 438	50 \| 345	18

Titanium Flanges Specifications

Material Grade: Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standard: ANSI B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116, ASTM B16.5
Technique: Forged and CNC Machined
Type: WN, SO, BL, SW, PL, Lap joint, customized
Application: Used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump valve, pipeline, aerospace, ocean industry
Advantage: Long service life, corrosion-resistant, high yield strength and tensile strength
