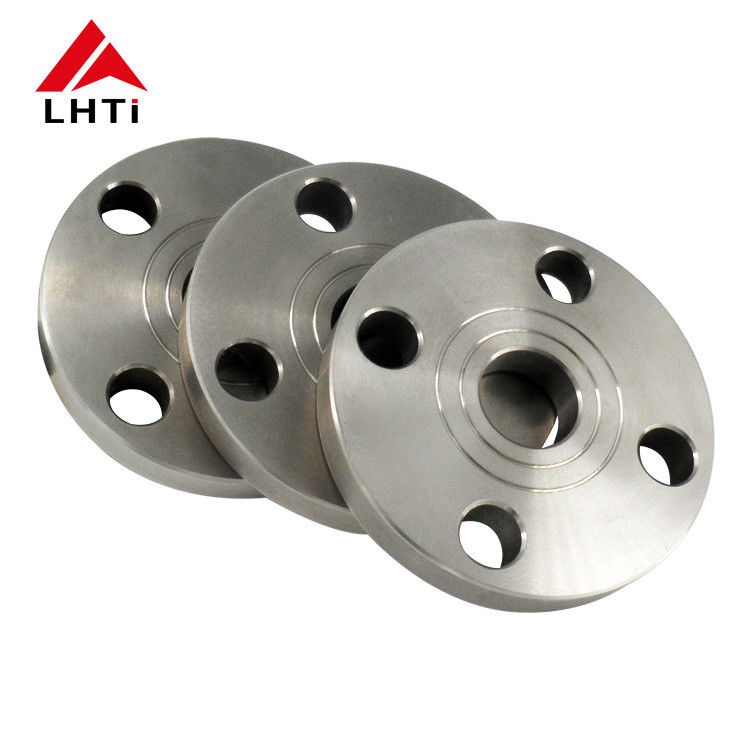

High-Performance GR2 & GR5 Titanium Slip On Flanges | Metals Titanium

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Gr2 Titanium Slip On Flange

Slip On Flange Corrosion Resistant

Petrochemical Equipment Titanium Blind Flange

Product Description

High-Performance GR2 & GR5 Titanium Slip On Flanges | Metals Titanium

In the challenging landscape of petrochemical processing, equipment failure due to corrosion is not an option. Our Titanium Slip On Flanges, crafted from high-purity Grade 2 and high-strength Grade 5 titanium, provide the ultimate solution for piping systems exposed to aggressive media.

These flanges are designed for easy alignment and cost-effective installation. Unlike standard stainless steel, our titanium slip-on solutions offer exceptional weight-to-strength ratios and a natural oxide layer that resists chloride-induced stress corrosion. Whether you are upgrading existing petrochemical reactors or building new heat exchangers, MetalsTitanium ensures every flange meets strict ASME/ANSI B16.5 standards.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18

Titanium Flange Specifications

Material: Titanium Grade 2 (Commercial Pure), Grade 5 (Ti-6Al-4V)
Standards: ASME B16.5, ANSI, DIN, JIS
Pressure Rating: Class 150, 300, 600, 900, 1500
Applications: Chemical Processing, Oil & Gas Refineries, Marine Engineering, Power Plants

Technique: Forged and CNC Machined
Type: WN, SO, BL, SW, PL, Lap joint, customized
Advantages: Long service life, corrosion-resistant, high yield strength and tensile strength

Company Overview

Baoji Lihua Non-ferrous Metal Co., Ltd., established in 2006, specializes in the production and sales of non-ferrous metals including titanium, tantalum, and nickel. Leveraging Baoji's industrial advantages and strong technical support, we have built a reputation for quality and reliability.

Factory Specifications: 800 square meters facility with over 20 sets of CNC machines, milling and drilling machines. Annual production value exceeds 30 million CNY.

Quality Assurance: Certified with ISO 9001:2015 and BV audit certification. Our focus on product quality improvement and stability ensures maximum customer satisfaction.

Frequently Asked Questions

Any discount?

The prices we quote are wholesale prices. We offer better discounts based on order quantity - please specify your purchase quantity when inquiring.

Are you a manufacturer?

Yes, we are a manufacturer with 13 years of experience, featuring fully equipped Product and QC Departments to ensure best-quality products.

How do I know if my products are delivered?

We provide tracking numbers for your reference and are available for shipment information updates anytime.

Has your company acquired any certificate?

We are certified with ISO9001 Quality Management System for our auto parts.

How about quality of products?

Each product undergoes careful inspection and testing before delivery, with strict quality control on every detail.

What about payment terms?

We accept T/T, L/C, Western Union, and Paypal.

How is your MOQ?

Minimum order quantity is 10kg for certain items, but can be lowered when purchasing multiple product types.

How about delivery time?

Typically 5-7 days via express delivery, depending on order quantity.
