Home > products > Titanium Flange > Polished Titanium Weld Neck / Threaded / Lap Joint / Plate / Blind Flange

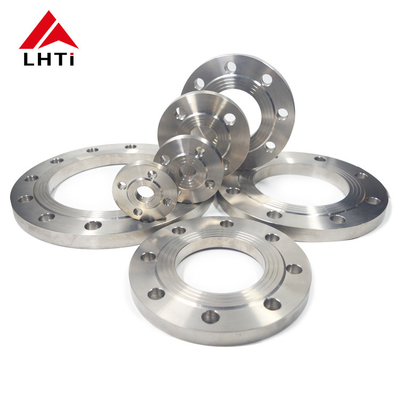

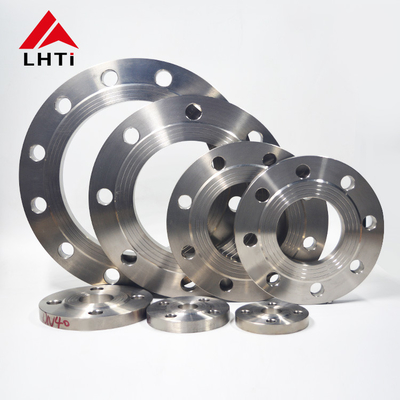

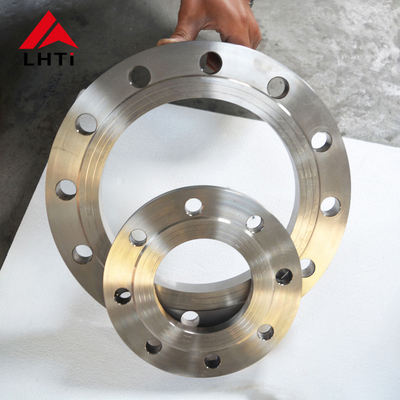

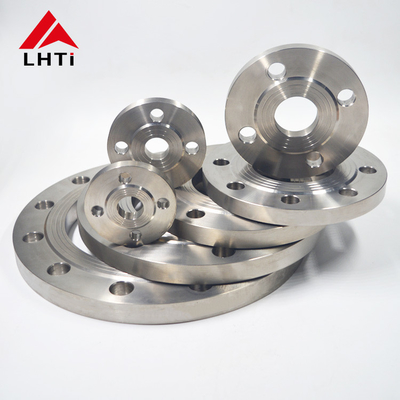

Polished Titanium Weld Neck / Threaded / Lap Joint / Plate / Blind Flange

Product Details

Place of Origin: Baoji, China

Brand Name: LH-Ti

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price
Highlight:

Polished Titanium Plate Flange

,

Titanium Lap Joint Flange

,

CNC Machined Titanium Threaded Flange

Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Type:
WN , SO , BL ,SW, PL, Lap Joint, Customized.
Standard:
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material:
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application:
Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.
Sealing Surface:
RF
Size:
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure:
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/
Surface:
Polished
Technique:
Forged And CNC Machined.
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Polished Titanium Weld Neck / Threaded / Lap Joint / Plate / Blind Flange

High quality titanium weld neck/ threaded/ lap joint/ plate /blind flange



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18


Titanium Flanges

Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.
Technique: Forged and CNC Machined.
Type: WN , SO , BL ,SW, PL, Lap joint, customized.
Application: used in cars, glasses,medical equipment , electronics , petrochemical equ ipment,Pump valve, pipeline, aerospace,Ocean Industry,etc.
Advantage: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength

Polished Titanium Weld Neck / Threaded / Lap Joint / Plate / Blind Flange 0
