ANSI B16.5 Ti-Pd DN50 Titanium Welding Neck Flange Alloy WN Pipe Connector

Basic Information
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Detail Information
Product Name: Ansi Titanium Blind Flange Standard: ANSI B16.5
Material: Gr2, Gr7, Gr12 Application: Chemical Industry
Sealing Surface: RF Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500# Surface: Polished
Technique: Froged And CNC Machined Inspection: Ultrasonic Testing & Material Test Report EN10204.3.1
High Light:

DN50 Titanium Pipe Flange


Titanium Alloy Welding Neck Flange


Ti-Pd Welding Neck Flange

Product Description


ANSI B16.5 Ti-Pd alloy WN pipe connector DN50 titanium welding neck flange




Flange is widely used in water conservancy, electric power, power station, pipe fittings, industry, pressure vessel, etc. Titanium flange is a kind of flange processed by forging process, made of titanium material, which is generally used in machinery and chemical industry.Besides titanium flanges, we can also manufacture nickel flange, zirconium flange etc.


ASME B16.47 titanium flange

Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,

Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc

Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc

Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)

MOQ: 1 piece

Price term:EXW factory, FOB, C&F and CIF

Payment term: T/T, L/C, West Union, Money Gram and etc

Package: Standard exporT plywood case or as you requested

Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.

Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc


Physical Properties


Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18

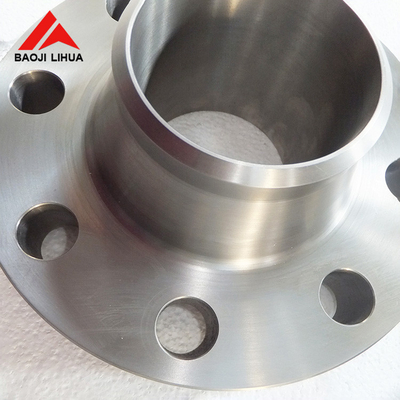

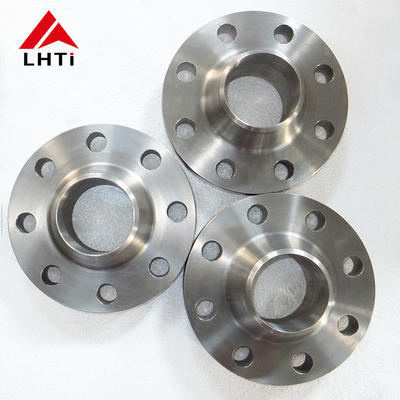

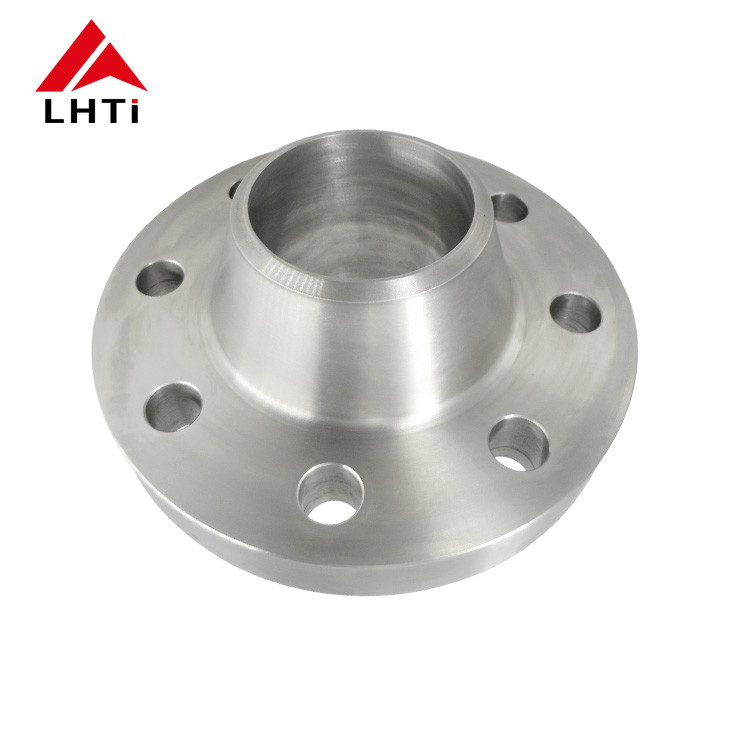

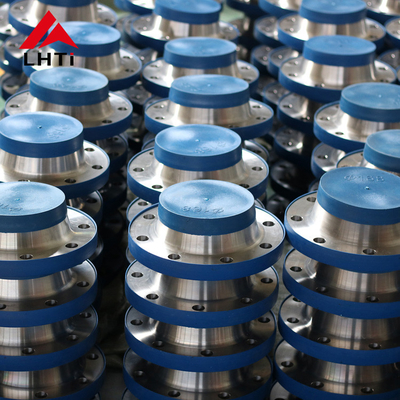

Detailed images:

Titanium SO Flange (2)
