Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Flange is widely used in water conservancy, electric power, power station, pipe fittings, industry, pressure vessel, etc. Titanium flange is a kind of flange processed by forging process, made of titanium material, which is generally used in machinery and chemical industry.Besides titanium flanges, we can also manufacture nickel flange, zirconium flange etc.
ASME B16.47 titanium flange
Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,
Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc
Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc
Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)
MOQ: 1 piece
Price term:EXW factory, FOB, C&F and CIF
Payment term: T/T, L/C, West Union, Money Gram and etc
Package: Standard exporT plywood case or as you requested
Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc
Physical Properties
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 438 | 15 |
| GR12 | 70 | 438 | 50 | 345 | 18 |

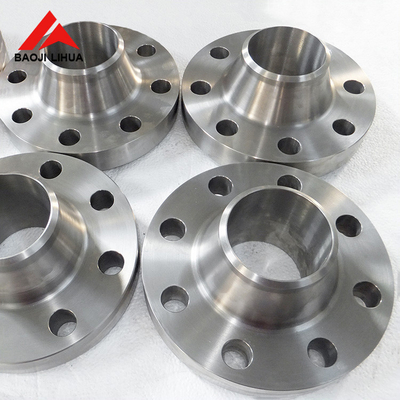

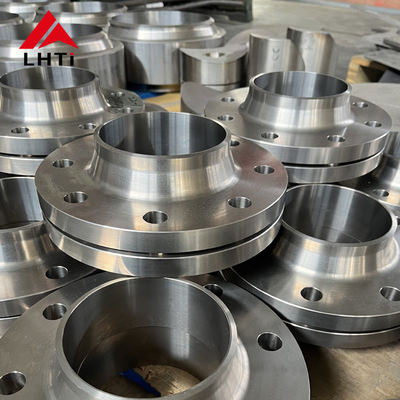

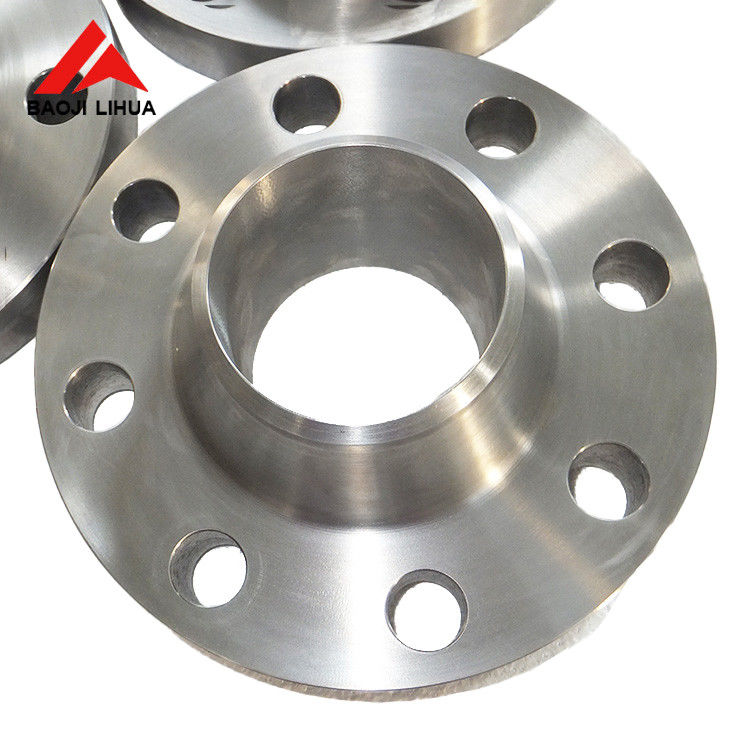

Detailed images:
