| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | LH-Ti |
| Certification: | ISO9001:2015 |
| Model Number: | Gr5 ti6al4v Titanium rod |
| Minimum Order Quantity: | 5 Kg |
| Price: | $20.00~$30.00/kg |
| Packaging Details: | First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case. |
| Delivery Time: | 10-25 work days |
| Payment Terms: | T/T, MoneyGram, L/C, Western Union, Paypal |
| Supply Ability: | 10000 Kilogram/Kilograms per Month |
| Model Number: | LHTB-007 | Shape: | Round |
|---|---|---|---|
| Material: | Gr1 Gr2 Gr5 Gr7 Gr9 Gr12etc. | Color: | Metal Bright |
| Application: | Industrial/Medical Ect. | Length: | Max 6000mm |
| Grade: | Pure Titanium | Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Standard: | ASTM B348 | Feature: | High Special Strength |
| High Light: | Ti6al4v Bright Titanium Rod,GR12 Titanium Round Bar,Medical Metal Bright Pure Titanium Rod |
||
ASTM B348 gr5 ti6al4v titanium rod bars titanium bar
Product Description:
Titanium rods have a very high strength-to-weight ratio, which means they are stronger than steel but lightweight. Titanium has a natural oxide layer that makes it resistant to corrosion, which means it can withstand harsh environments and conditions. Titanium is biocompatible, which means it is not harmful to the human body and is often used in dental and medical implants. Titanium is not magnetic, which makes it ideal for use in MRI machines and other medical equipment. Titanium has a unique and attractive appearance, which makes it popular in jewelry and other decorative applications. Titanium is highly resistant to wear and tear, which means it lasts longer than other materials. Overall, the advantages of titanium rods make them a popular choice in many industries, including aerospace, medical, and jewelry.
| Item Name | Titanium bar/titanium rod |
| Standard | ASTM B348,ASTM F67,ASTM F136 |
| Material | Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 |
| Diameter | 0.8~500mm |
| Length | 500~6000mm or according to customers' request |
| Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| Shape | Round bar, square bar , hex bar |
| Feature | 1.Polished surface without any defects free from cracks no pittings
2.Two ends flating making sure length torlerance and good looking |
| Certificate |
ISO9001:2015, TUV, material test certificate acc EN10204.3.1 |
| Chemical requirements | |||||||||||
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
|
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
|
KSI |
MPa |
Ksi |
MPa |
||
|
1 |
35 |
240 |
20 |
138 |
24 |
|
2 |
50 |
345 |
40 |
275 |
20 |
|
5 |
130 |
895 |
120 |
828 |
10 |
|
7 |
50 |
345 |
40 |
275 |
20 |
|
12 |
70 |
438 |
50 |
345 |
18 |
Product name: 6al4v titanium bar
Material grade : Grade 5
Standards: ASTM B348, ASTM F136, AMS4928
Titanium rod specifications: Diameter 6mm-250mm x L 500-6000mm
Titanium rod supply state: Annealing state
Titanium bar production process: hot forging-hot rolling-annealing straightening-turning (polishing)-polishing-flat head-inspection-packaging
Technical requirements of titanium bar:
1. The chemical composition of titanium and titanium alloy bars should meet the requirements of GB/T 3620.1. When repeated inspections are required, the allowable deviation of the chemical composition should meet the requirements of GB/T 3620.2.
2. The diameter or side length of the hot processed bar and its allowable deviation should meet the corresponding regulations.
3. After hot processing, after turning (polishing) the bar and cold rolling, the allowable deviation of the diameter of the cold drawn bar shall meet the industry regulations.
4. The out-of-roundness of the turned (polished) bar after hot working should not be more than half of its dimensional tolerance.

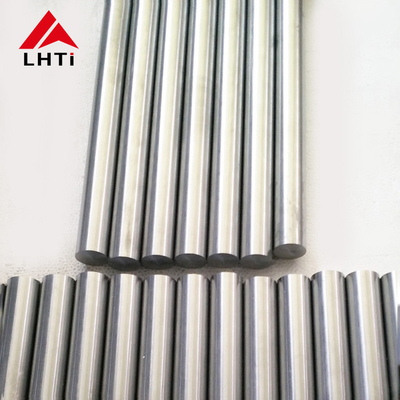

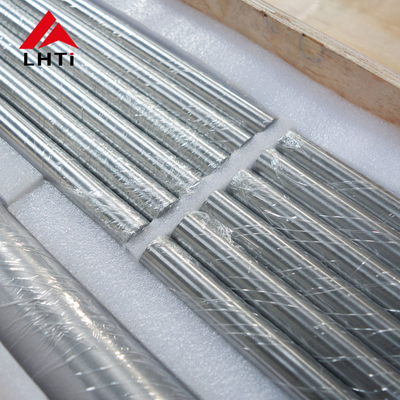

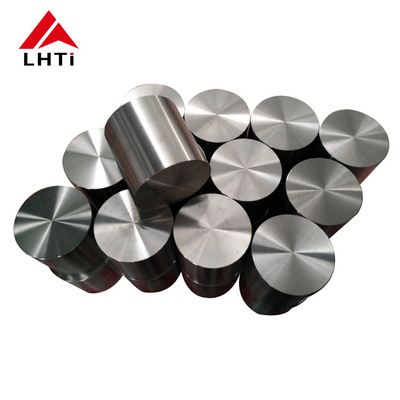

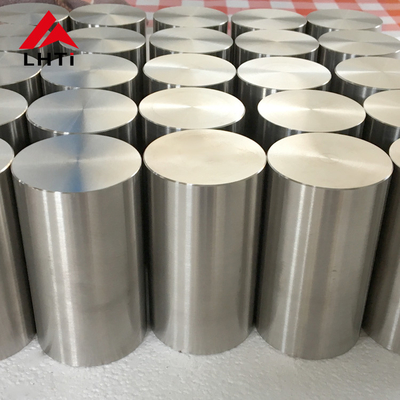

Product picture:
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.
The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
