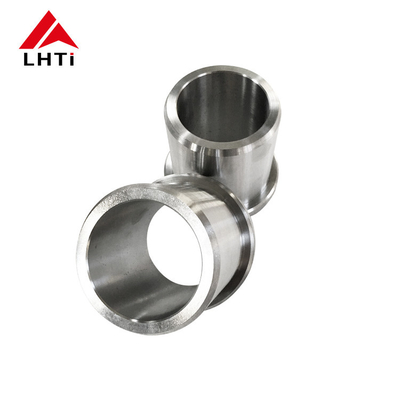

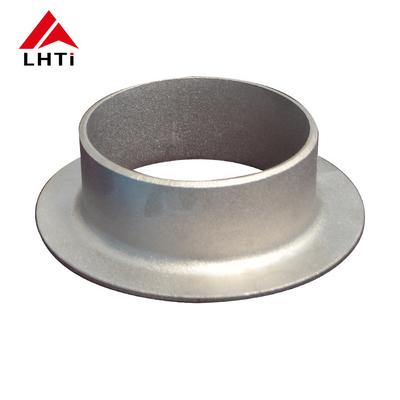

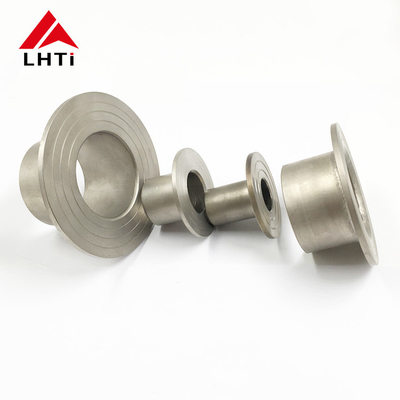

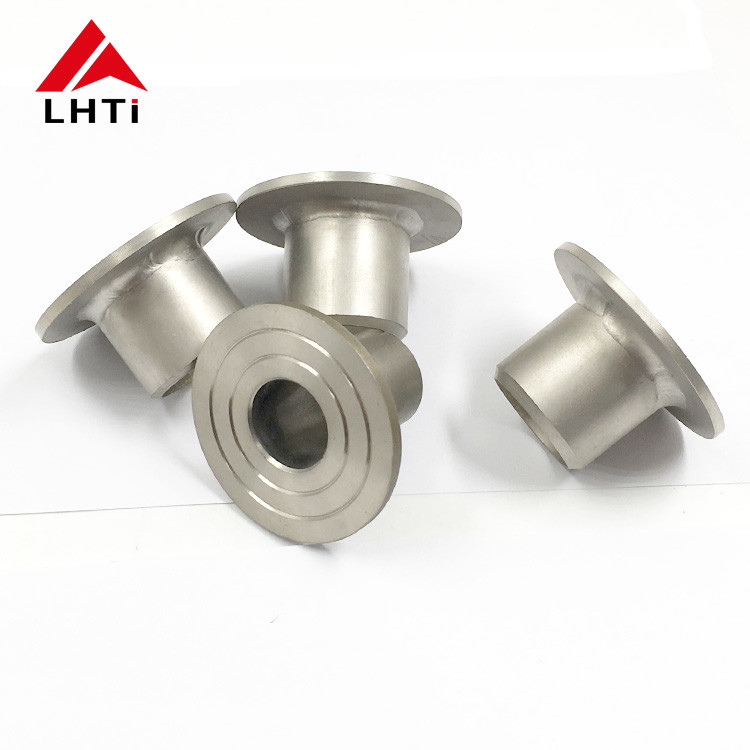

Gr2 Forged Titanium Stub End Flange ASTM B363

Gr2 Forged Titanium Stub End Flange ASTM B363

Gr2 Forged Titanium Stub End Flange ASTM B363

Brand Name: LH-Ti
Model Number: Titanium Stub End
MOQ: 5 Kg
Price: $20.00~$30.00/kg
Payment Terms: T/T,MoneyGram,L/C,Western Union,Paypal
Supply Ability: 10000 Kilogram/Kilograms per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Shaanxi, China
Certification:
ISO9001:2015
Technique:
Forged
Powder Or Not:
Not Powder
Processing Service:
Welding
Standard:
ASME B16.9/ASTM B363
Techics:
Forged
Application:
Indursty -oil Pipe, Industry
Pressure:
PN10/PN16/PN25
Size:
Customized Size
Packaging Details:
First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.
Supply Ability:
10000 Kilogram/Kilograms per Month
Highlight:

Gr2 Titanium Stub End

,

Titanium Stub End Flange

,

ASTM B363 Titanium Pipe Fittings

Product Description
Gr2 Forged Titanium Stub End Flange ASTM B363 For Oil Pipe Industry
Titanium Pipe Fittings ASTM B363 Gr2 Titanium Stub End designed for high-performance applications in the oil and gas industry.
Chemical Composition Requirements
Grade N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal
Mechanical Properties
Grade Tensile Strength (min) Yield Strength Elongation
1 35 KSI / 240 MPa 20 Ksi / 138 MPa 24%
2 50 KSI / 345 MPa 40 Ksi / 275 MPa 20%
5 130 KSI / 895 MPa 120 Ksi / 828 MPa 10%
7 50 KSI / 345 MPa 40 Ksi / 275 MPa 20%
12 70 KSI / 438 MPa 50 Ksi / 345 MPa 18%
These titanium stub end flanges meet ASTM B363 specifications and are ideal for demanding applications in oil and gas pipelines, offering excellent corrosion resistance and mechanical properties.
