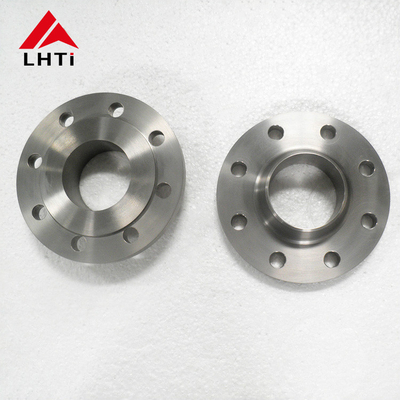

Titanium Blind Exhaust Flange 4" ANSI 150lbs 300 Ibs Class Gr2

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Ansi Titanium Blind Flange

Standard:

ANSI B16.5

Material:

Gr2, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Froged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

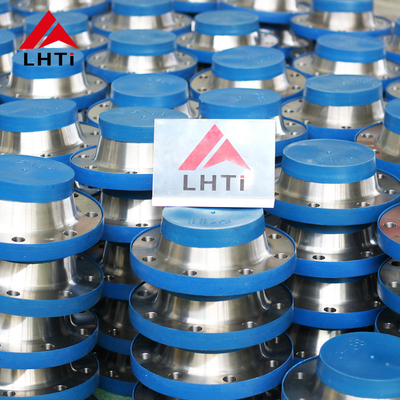

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Titanium Blind Exhaust Flange

4" Titanium Blind Flange

150lbs Exhaust Flange

Product Description

Titanium Blind Exhaust Flange 4" ANSI 150lbs 300 lbs Class Gr2

Titanium blind exhaust flange 4" ANSI 150lbs 300 lbs class Gr2 designed for demanding industrial applications.

Flanges are essential components widely used in water conservancy, electric power, power stations, pipe fittings, industrial systems, pressure vessels, and various mechanical and chemical processing applications. Titanium flanges are manufactured using advanced forging processes with premium titanium materials, offering exceptional corrosion resistance and durability.

ASME B16.47 Titanium Flange Specifications

Material: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)

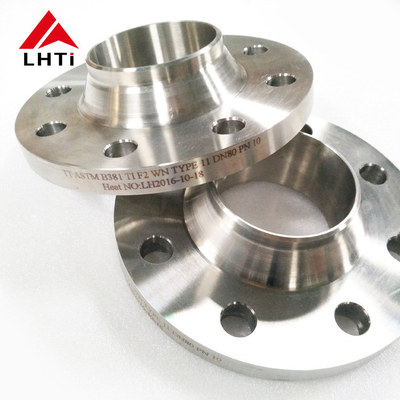

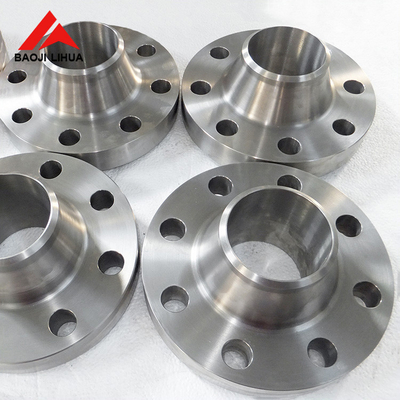

Types: Plate Flange, Flat Flange, Slip-on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange

Connection Types: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove

Size Range: 1-1/2" to 120" (DN40 to DN3000)

Minimum Order Quantity: 1 piece

Price Terms: EXW factory, FOB, C&F, CIF

Payment Terms: T/T, L/C, Western Union, Money Gram

Packaging: Standard export plywood case or customized packaging as requested

Applications: Construction, petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage systems, light and heavy industry, plumbing and electrical systems.

Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, and worldwide.

Physical Properties

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
GR1	35 ksi / 240 MPa	20 ksi / 138 MPa	24
GR2	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR5	130 ksi / 895 MPa	120 ksi / 828 MPa	10
GR7	50 ksi / 345 MPa	40 ksi / 275 MPa	20
GR9	90 ksi / 620 MPa	70 ksi / 438 MPa	15
GR12	70 ksi / 438 MPa	50 ksi / 345 MPa	18

We manufacture various types of titanium flanges to meet diverse industrial requirements.

Quality Assurance

Our titanium flanges undergo comprehensive quality testing including:

Chemical composition analysis
Physical performance testing
Ultrasonic testing (UT)
Positive Material Identification (PMI)
Additional testing available upon request: radiographic testing, hardness testing

We adhere to international and domestic industrial standards while implementing higher internal quality assurance protocols through comprehensive quality management systems. All incoming materials undergo PMI and physical properties inspection. Each titanium flange receives ultrasonic testing according to worldwide standards and customer specifications.

Manufacturing Excellence

Factory Advantages

Grade 1 titanium sponge raw materials ensuring optimal chemical composition and mechanical properties with material certification provided
Forged valve body and disc manufacturing for superior leakage control and visual quality
Advanced facilities and extensive fabrication experience
Continuous improvement capabilities and new design development
Fast delivery to meet urgent project timelines
Cost-effective bulk production reducing project budgets
Professional export team and comprehensive after-sales service
