Gr2 Pure Titanium Forged Ring Bright Surface

Brand Name:	LHTi
Model Number:	TST117
MOQ:	5 piece
Price:	$20.00~$30.00/kg
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	5000 piece per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Technique:

Forged

Powder Or Not:

Not Powder

Ti Content (%):

99.7% Min

Product Name:

Titanium Ring

Material:

Gr1 Gr2 Gr5 Gr7 Gr9 Gr12

Color:

Silver Gray

Surface:

Cold Rolled Bright

Density:

4.51g/cm^3

Packed:

Wooden Case

Purity:

>99.7%

Packaging Details:

Wooden Case

Supply Ability:

5000 piece per week

Highlight:

Gr2 Titanium Forging Ring

99.99% Pure Titanium Ring

Cold Rolled Bright Titanium Ring

Product Description

Gr2 Pure Titanium Forged Ring Bright Surface

This titanium ring is forged from Gr2 titanium and finished with a cold rolled bright surface. The ring is light, strong and free of the porosity that can form in cast parts, so it holds up under load and repeated use. Titanium resists corrosion in chlorides, sea water and many acids, stays non-magnetic and keeps its strength at elevated temperature. Purity is above 99.7% and the color is silver gray. The ring can be machined or rolled to the customer drawing and is supplied in several titanium grades for different service conditions.

Technical Specifications

Product	Titanium ring
Material	Titanium
Grade	Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Technique	Forged
Surface	Cold rolled bright
Color	Silver gray
Purity	Above 99.7%
Density	4.51 g/cm3
Powder or not	Not powder

Chemical Composition Requirements (max %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni
Gr1	0.03	0.08	0.015	0.20	0.18	-	-	-	-	-
Gr2	0.03	0.08	0.015	0.30	0.25	-	-	-	-	-
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	-	-	-
Gr7	0.03	0.08	0.015	0.30	0.25	-	-	0.12-0.25	-	-
Gr12	0.03	0.08	0.015	0.30	0.25	-	-	-	0.2-0.4	0.6-0.9

Tensile Strength Requirements

Grade	Tensile (min)	Yield (min)	Elongation
1	240 MPa / 35 KSI	138 MPa / 20 KSI	24%
2	345 MPa / 50 KSI	275 MPa / 40 KSI	20%
5	895 MPa / 130 KSI	828 MPa / 120 KSI	10%
7	345 MPa / 50 KSI	275 MPa / 40 KSI	20%
12	438 MPa / 70 KSI	345 MPa / 50 KSI	18%

Product Pictures

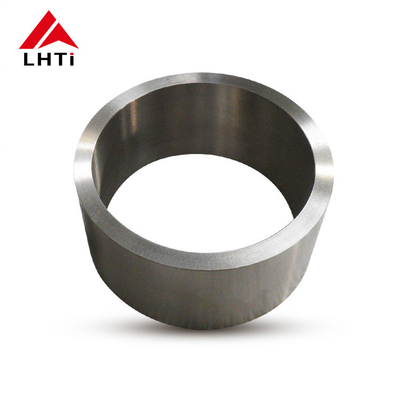

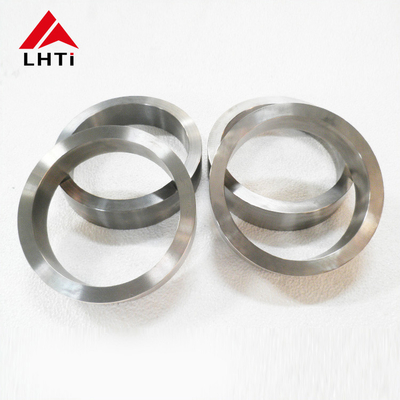

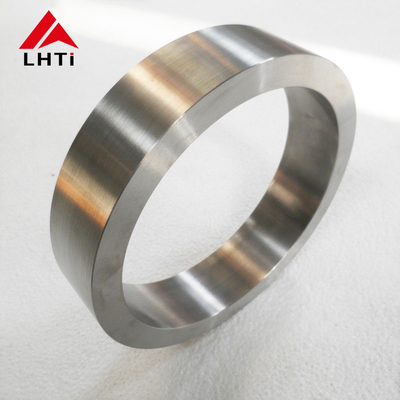

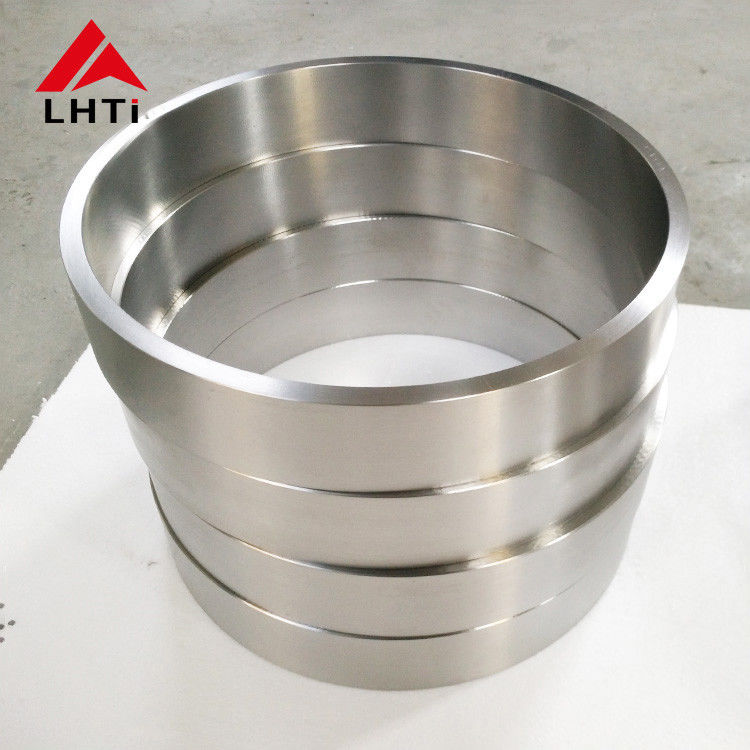

Gr2 pure titanium forged ring

Cold rolled bright titanium ring

Forged titanium ring silver gray

Titanium ring bright surface

Pure titanium ring for industry

Titanium ring Gr2 forged

Titanium ring stock

Titanium ring detail

Titanium ring machined

Titanium rings packed

Applications

The forged ring is used where a light, strong and corrosion resistant circular part is needed. Common uses include pipe and flange seals, pump and valve components, heat exchanger parts, marine hardware, chemical handling equipment and general engineering. Because the ring can be machined or rolled to the customer drawing and supplied in several grades, it can be matched to the strength and corrosion needs of each job. Rings are packed in wooden cases for export, with the bright surface protected against scratches in transit.
