High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings

Basic Information
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-TH
Minimum Order Quantity: 1 pieces
Price: US dollar $15/kg--US dollar $35/kg
Packaging Details: Plywood box for export
Delivery Time: 5-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 kgs per month
Detail Information
Product Name: Titanium Forged Ring Material: Gr5
Application: Chemical Industry Outer Diameter: 200-1300mm
Inner Diameter: 100-900mm Height: 35-250mm
Thickness: 40-400mm Quality Control: Ultrasonic Testing
High Light:

40mm Titanium Forging Rings

,

TC4 Titanium Alloy Ring

,

Forging Titanium Alloy Ring


Product Description

High Performance Forged Titanium Alloy TC4 TC11 Ring Titanium Forging Rings

Product Introduction
Product name: Pure titanium ring
Grade: TA1, TA2, TA9, TA10, TC4, GR1, GR2, GR5, GR7, GR12
Implementation standard: GB/T16598, ASMESB381
Surface: forging surface, rolling surface, polishing surface, polished surface.
Application: Pure titanium ring is widely used in aerospace, medical, chemical, petrochemical, shipbuilding, electrolysis, electroplating and other industries.
Properties of titanium:
1. High strength The density of titanium alloy is generally about 4.5g/cm², which is only 60% of steel. The strength of pure titanium is close to the strength of ordinary steel. Some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength of titanium alloy (strength/density) is much greater than other metal structure materials, can be produced with high unit strength, good rigidity, light weight of zero, parts. Currently, titanium alloys are used in engine components, skeleton, skin, fasteners and landing gear.
2, high thermal strength The use of temperature is a few hundred degrees higher than aluminum alloy, in the medium temperature can still maintain the required strength, can be 450~500℃ temperature for a long time work these two titanium alloy in the range of 150℃ ~500℃ still has a very high specific strength, and aluminum alloy at 150℃ specific strength decreased significantly. The operating temperature of titanium alloy can reach 500℃, and aluminum alloy is below 200℃.
3, good corrosion resistance The corrosion resistance of titanium alloy is much better than that of stainless steel when it works in moist atmosphere and seawater medium. Especially strong resistance to pitting corrosion, acid corrosion and stress corrosion; It has excellent corrosion resistance to alkali, chloride, chlorinated organic goods, nitric acid, etc. However, titanium has poor corrosion resistance to reductive oxygen and chromium salt media.


Chemical requirements
 NCHFeOAlVPdMoNiTi
Gr10.030.080.0150.200.18/////bal
Gr20.030.080.0150.300.25/////bal
Gr50.050.080.0150.400.205.5~6.753.5~4.5///bal
Gr70.030.080.0150.300.25//0.12~0.25//bal
Gr120.030.080.0150.300.25///0.2~0.40.6~0.9bal



Tensile requirements
GradeTensile srength(min)Yeild strength(mm)Elongation(%)
 KSIMPaKsiMPa
1352402013824
2503454027520
513089512082810
7503454027520
12704385034518

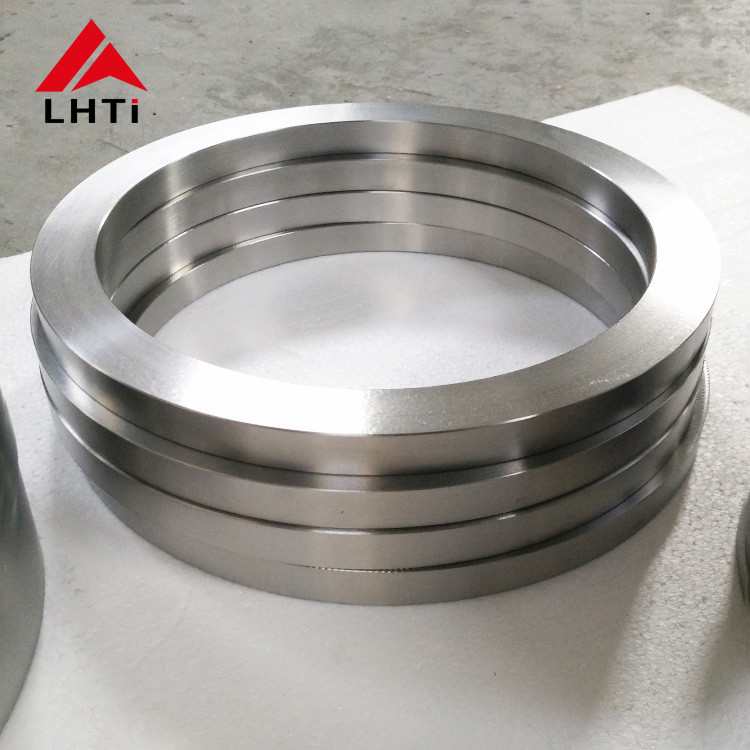

Product picture:

High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 0High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 1High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 2High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 3High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 4High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 5High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 6High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 7High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 8High Performance Titanium Alloy Ring TC4 TC11 Titanium Forging Rings 9

About us

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.

The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.

The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!


FAQ

1. Any discount?
A: The prices we quote are all wholesale price in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.

2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best-quality products as we have fully equipped Product Department and QC Department.

3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.

4. Has your company acquired any certificate?
A: We are certified manufacturer with our auto parts approved by ISO9001 Quality Management System.

5. How about quality of products?
A: We guarantee strict control on every detail of the products. Each product is carefully inspected and tested before delivery.

6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.

7. How is your MOQ?
A: Minimum quantity for certain items is only 10kg. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at anytime.

8. How about delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
