Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD

Basic Information
Place of Origin: Baoji, Shaanxi, China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Forged titanium ring
Minimum Order Quantity: 1 PCS
Price: USD13.5-95.5 per kg
Packaging Details: Standard export packging, Carton box/ plywood case outside
Delivery Time: 10-15 work days
Payment Terms: D/A, D/P, T/T, L/C, Western Union
Supply Ability: 200000 kgs per month
Detail Information
Product Name: ASME SB381 Grade 2 Gr2 Ti Forging Titanium Ring DN250 PN16 Type 32A Standard: ASME SB381 / ASTM B381
OD: 200-1300mm ,or As Customized ID: 100-900mm ,or As Customized
Height: 35-250mm Material: Titanium Gr2
Technique: Forged, Machined Quality Test: Ultrasonic Testing
High Light:

200mm Titanium Forged Ring


Bright Titanium Forged Ring


Industrial Ti-6AL-4V Titanium Ring

Product Description

Ti-6AL-4V Titanium forged ring


1. Product Feature

This ASTM B381 TC4 6AL4V Titanium forged Ring is a non-magnetic metal. It will not be magnetized in a large magnetic field. It is non-toxic and has good compatibility with human tissues and blood, so it is used by the medical community. There are various kinds of grade options, thus to provide more choice to meet need.


Item name Titanium forging ring
Standard ASTM B381
MOQ 10 pcs
Surface Bright
OEM/ODM Accepted
Processing Forged
Application Industrial
Nearest Port Shanghai
Certificate SGS ISO9001-2008


China America Russia Japan


Industrially Pure Titanium

GR1 BT1-00 TP270
TA2 GR2 BT1-0 TP340
TA3 GR3   TP450
TA4 GR4   TP550
TA8 Ti-0.05Pd GR16
TA9 Ti-0.2Pd GR7   TP340Pb
TA10 Ti-0.3Mo-0.8Ni GR12
TA18 Ti-3Al-2.5V GR9 0T4-1B TAP3250
TB5 Ti-15V-3Al-3Gr-3Sn Ti-15333
TC4 Ti-6Al-4V GR5 BT6




Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

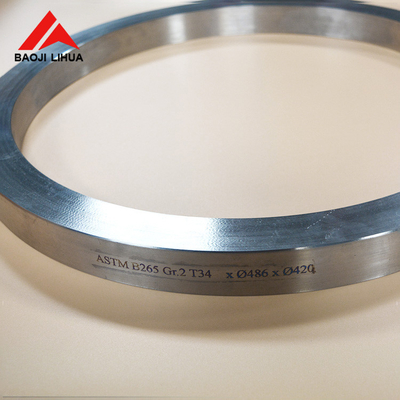

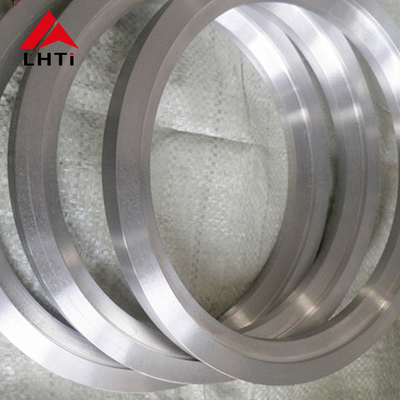

Product picture:


Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 0Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 1Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 2Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 3Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 4Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 5Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 6Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 7Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 8Ti-6AL-4V Titanium Forged Ring ASME B381 200 - 1300mm OD 9
