High Purity Titanium Coil Wire ASTM B863

Name: High Purity Titanium Coil Wire ASTM B863
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: High Purity Titanium Wire
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	High Purity Titanium Wire
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Gradetitanium:

Titanium

Strength:

106.4MPa

Product Name:

Titanium Wire

Color:

Black/alkaline Clean

Application:

Chemical, Petroleum, Paper, Industry

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Highlight:

ASTM B863 Titanium Coil Wire

0.8mm Titanium Coil Wire

High Purity Titanium Wire

Product Description

High Purity Titanium Coil Wire ASTM B863

This high purity titanium coil wire is produced to ASTM B863 in Gr1, Gr2, Gr5, Gr7 and Gr12. Titanium is a silver-white metal with a density of 4.54 g/cm3, roughly 43% lighter than steel, with mechanical strength close to steel and excellent resistance to acids and corrosion. Its high melting point near 1942 K keeps the wire stable at high temperature. The wire is supplied with a black or alkaline cleaned surface in diameters from 0.1 mm to 0.8 mm and can be bent, welded, decoiled, cut and punched.

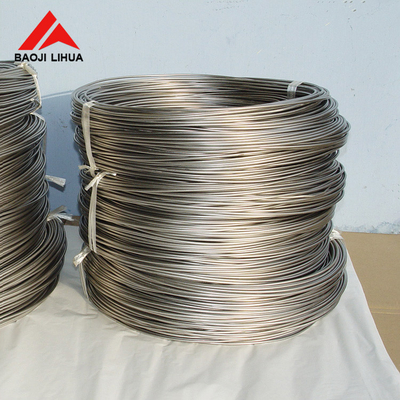

High purity titanium coil wire 1

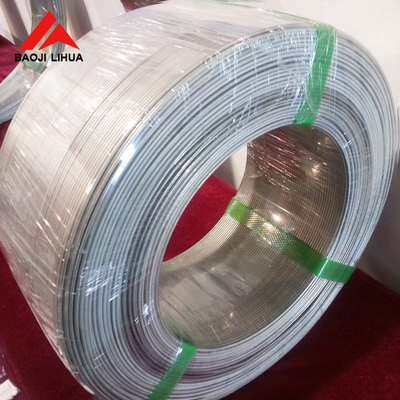

High purity titanium coil wire 2

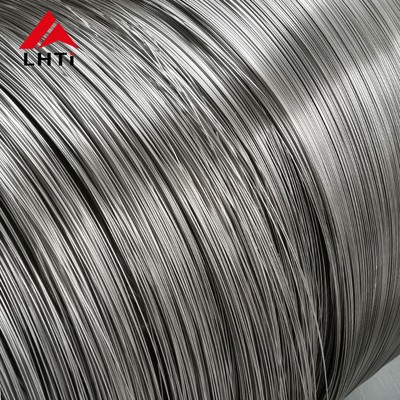

High purity titanium coil wire 3

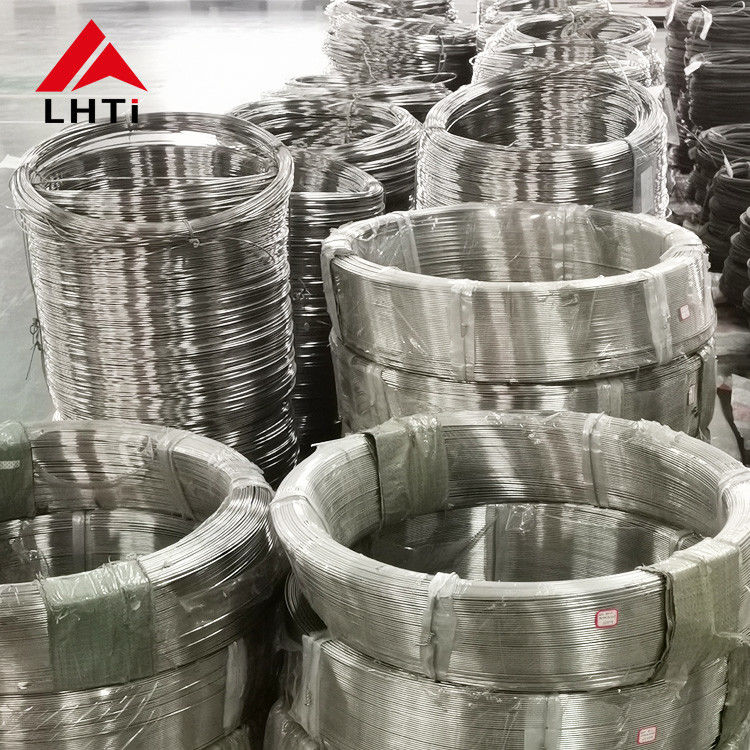

High purity titanium coil wire 4

High purity titanium coil wire 5

High purity titanium coil wire 6

High purity titanium coil wire 7

High purity titanium coil wire 8

High purity titanium coil wire 9

High purity titanium coil wire 10

Technical Specifications

Product name	Titanium wire
Grade	Gr1, Gr2, Gr5, Gr7, Gr12
Diameter	0.1 mm, 0.5 mm, 0.8 mm
Strength	106.4 MPa
Color	Black, alkaline clean
Processing Service	Bending, welding, decoiling, cutting, punching
Application	Chemical, petroleum, paper and general industry

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
5	130 [895]	120 [828]	10
7	50 [345]	40 [275]	20
12	70 [438]	50 [345]	18

Applications & Titanium Advantages

This titanium wire is supplied for the chemical, petroleum and paper industries and for general fabrication. Titanium is lighter than steel yet comparably strong, resists acids and corrosion, is non-magnetic and keeps its properties at high temperature, so the wire performs reliably in aggressive and long-life industrial service.

Quality, Customization & Inquiry

Baoji Lihua Non-ferrous Metal Co., Ltd. has produced titanium and other non-ferrous metals since 2006 and holds ISO 9001:2015 and BV audit certification. The wire is packed with moisture-proof paper, kraft paper and foam plastics inside a plywood case. Custom diameters and grades are available; please send your specification for a quotation.
