Gr5 Gr9 Seamless Titanium Tube Polished OD350mm

Name: Gr5 Gr9 Seamless Titanium Tube Polished OD350mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Seamless Titanium Tube
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Seamless Titanium Tube
MOQ:	5 Kg
Price:	$20.00~$30.00/Kg
Payment Terms:	L/C,T/T,,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Processing Service:

Bending, Welding, Cutting

Wall Thickness:

0.3mm-120mm

Inside Diameter:

2.0mm-219mm

Outer Diameter:

Dia1.0-dia350mm

Model Number:

Gr5 Or Gr9

Surface:

Polished

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Highlight:

Gr9 Seamless Titanium Tube

Titanium Tube 0.3mm

Polished Seamless Titanium Pipe

Product Description

Gr5 Gr9 Seamless Titanium Tube Polished OD350mm

The density of titanium alloy is about 4.51 g per cubic centimeter, only about 60% of steel, while the strength of pure titanium is close to that of ordinary steel and some high strength titanium alloys exceed many alloy structural steels. The specific strength of titanium alloy is therefore much higher than other metal structural materials, so it makes components with high unit strength, good rigidity and light weight. These polished seamless tubes are used for aerospace and lightweight structural components, fasteners and other demanding parts.

Technical Specifications

Grade	Gr5, Gr9
Processing Service	Bending, welding, cutting
Wall Thickness	0.3mm to 120mm
Inside Diameter	2.0mm to 219mm
Outer Diameter	1.0mm to 350mm
Surface	Polished

Seamless and Welded Tube Range

Type	Outer Diameter	Wall Thickness	Length	Material
Seamless titanium tube	2.0mm to 219mm	0.3mm to 120mm	Up to 18000mm	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr17, Gr23
Welded titanium tube	6mm to 219mm	0.5mm to 10mm	Up to 18000mm	Gr1, Gr2, Gr3, Gr5, Gr9

Chemical Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile (ksi)	Tensile (MPa)	Yield (ksi)	Yield (MPa)	Elongation (%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Detailed Images

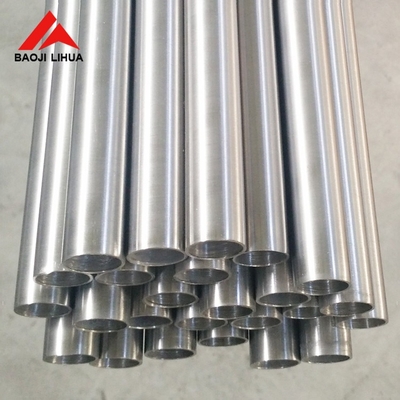

Gr5 Gr9 polished seamless titanium tube

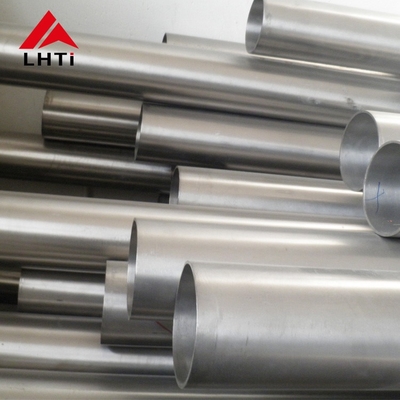

Seamless titanium tube outer diameter 1mm to 350mm

Gr9 titanium seamless tube polished surface

Titanium alloy tube wall thickness 0.3mm to 120mm

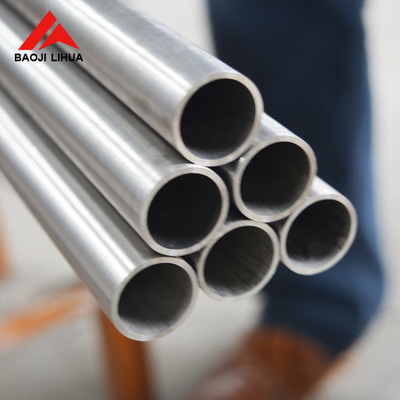

Polished titanium pipe end view

Gr5 titanium tube bundle

Seamless titanium tube length up to 18000mm

Titanium seamless tube inspection

Polished titanium tube surface detail

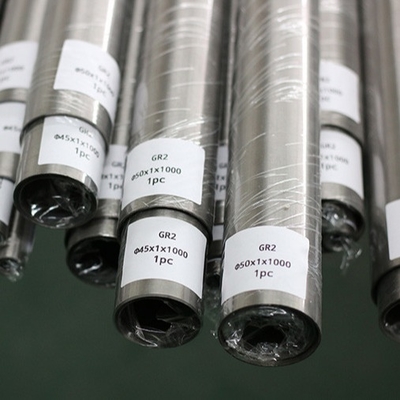

Titanium tube packing moisture proof paper

Seamless titanium tube plywood case packing

Gr5 Gr9 titanium tube ready for shipment

Applications

Titanium alloy tube is used for aerospace structural components, fasteners and landing gear, as well as for industrial equipment where high unit strength, good rigidity and light weight are needed. Tube can be supplied as seamless or welded, in outer diameters from 1.0mm up to 350mm.
