99.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-10
Minimum Order Quantity: 10 pieces
Price: US dollar $ 25.5/pc--US dollar $125/pc
Packaging Details: Pearl cotton wrap or Sealed packaging,outside is standard Carton case or plywood case,or according your requirment to package
Delivery Time: 15-20 days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 5000 piece per week
Detail Information
Product Name: High Purity Pvd Titanium Sputtering Target Metal Target Customized Material: Pure Titanium, Titanium Alloy
Application: Various Coating Industries, Such As Tool Coating, Optical Coating, Solar Energy Coating, Etc Keyword: Titanium Sputtering Target
Package: Plywood Case Or According Your Requirment
High Light:

99.6% Purity Titanium Target

,

Titanium Sputtering Target Hardware

,

Round Titanium Sputter Target


Product Description







The word "target" in "titanium sputtering target" comes from the common target materials in our daily life. In the sputtering deposition process, the coating material is bombarded by the electron beam or ion beam, just like the target is hit, so the material used in the sputtering process is called the "sputtering target".



From metal titanium to titanium sputtering target

Titanium sputtering target is a titanium product made of titanium metal as raw material, which is used to produce titanium film by sputtering. In brief, there are two methods to manufacture titanium sputtering target with metal titanium casting method and powder metallurgy method.



Casting: Melt the raw materials with a certain proportion, pour the alloy solution into the mold to form ingots, and finally machine them into sputtering targets. The method is melting and casting in vacuum.



Powder metallurgy: Melt the raw materials with a certain proportion, cast them into ingots, crush them, isostatic press the powder, and then sinter them at high temperature to make targets.





Product name: Titanium target sputtering

Material: Pure titanium: GR1 GR2

Purity >= 99.6%

Application:Hardware, decoration, tools, ceramics, golf and other coating industries.

Dimension:

Round sputtering target: Φ100×40, Φ95×45, Φ80×40, Φ90×40, Φ85×35 and other specific sizes.



Tube sputtering target: Φ70×7×L900--2000mm, Φ89.4mmX7.62mmX1728mm,Φ89.4mmX15mmX1728mm, Φ80mmX10mmX1728mm, and other specific sizes.



Plate sputtering target: T6-40×W60--800×L600--2000mm and other specific sizes.

We can customize alloy targets in different proportions according to customer needs

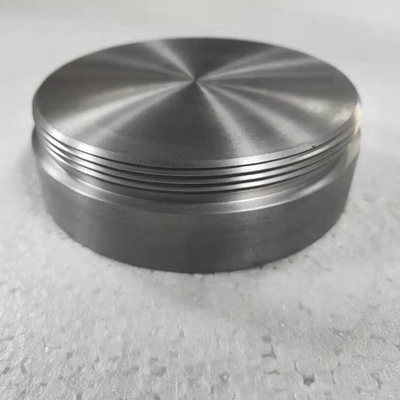

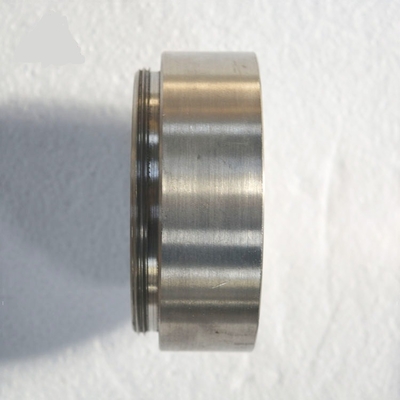

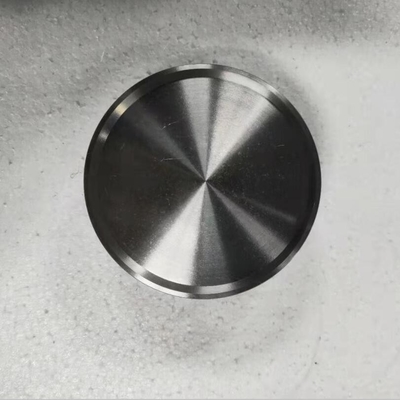

Detailed images:

99.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 099.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 199.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 299.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 3







Material:

1) Ti/Al alloy target (67:33,50:50at%)



2) W/Ti alloy target (90:10wt%),



3) Ni/V alloy target (93:7, wt%)



4) Ni/Cr alloy target (80:20, 70:30, wt%),



5) Al/Cr alloy target (70:30,50:50at%)



6) Nb/Zr alloy target (97:3,90:10wt%)



7) Si/Al alloy target (90:10, 95:5, 98:2, 70:30, wt%)



8) Zn/Al alloy target



9) High purity chromium target (99.95%, 99.995%)



10) Al/Cr alloy target (70:30, 50:50, 67:33, at%)



11) Ni/Cu alloy target (70:30, 80:20, wt%)



12) Al/Nd alloy target (98:2wt%)



13) Mo/Nb alloy target (90:10, wt%)



14) TiAlSi alloy target (Ti/Al/Si=30/60/10, 33/67, 40/50/10 ,wt% and at%)



15)CrAlSi alloy target (Cr/Al/Si=30/60/10 ,wt% and at%)





3.Factory

99.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 4





4.Package & Delivery



 99.6% Purity GR1 GR2 Round Titanium Sputtering Target Hardware 5



---1. The sealed packaging,then put in the Carton cas or standard standard plywood case.

---2.Using exclusive custom carton with customer logo, each individual packaging, to help buyers direct sales.

---Accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.





We still have more titanium products. If you need,Catalog will be sent.
