Cylindrical PVD Titanium Target Sputtering 100 X 40mm 300 X 40mm

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-10
Minimum Order Quantity: 10 pieces
Price: US dollar $ 25.5/pc--US dollar $125/pc
Packaging Details: Pearl cotton wrap or Sealed packaging,outside is standard Carton case or plywood case,or according your requirment to package
Delivery Time: 15-20 days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 5000 piece per week
Detail Information
Product Name: Titanium Target Cylindirc PVD Sputtering Target 100x40mm 300x40mm Material: Pure Titanium, Titanium Alloy
Application: Coating Industry, Sputtering Vacuum Coating Industry Keyword: Titanium Sputtering Target
Package: Plywood Case Or According Your Requirment
High Light:

100x40mm Titanium Target

,

Cylindrical PVD Sputtering Target

,

Gr5 Titanium Target


Product Description

 Titanium Target Cylindirc PVD sputtering target 100x40mm 300x40mm







Titanium target is mainly used in mechanical equipment, electronic equipment, electroplating equipment, aviation, medical, a variety of precision mechanical and electrical industries.





Product name:Titanium sputtering target cylindirc

Size: Diameter:50-200mm*Height 2-140mm

Diameter:200-400mm*Height 25-150mm

Diameter:400-600*Height 30-110mm

Material: Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12

Other available sputtering target: TiAl,TiCu,TiSi,Cr,Zr,Cu,Fe,Mo,W etc.

Standard: ASTM / ASME 348 , ASTM / ASME SB381 , ASTM F136 ,ASTM F67

Shape: cylindirc (Round)

Technique: Rolled, Forged, CNC Machined

Quality Control: PMI, Ultrasonic Testing etc.





Chemical composition
  N C H Fe O Al V Pd Mo Ni Ti
Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal
Grade 2 0.03 0.08 0.015 0.30 0.25 / / / / / Bal
Grade 3 0.05 0.08 0.015 0.30 0.35 / / / / / Bal
Grade 4 0.05 0.08 0.015 0.50 0.40 / / / / / /
Grade 5 0.05 0.08 0.015 0.40 0.20 5.5-6.75 3.5-4.5 / / / Bal





Physical Properties
  Tensile Strength(min) Yeild Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10







Titanium target / titanium alloy target is made of high quality titanium sponge, through the three vacuum melting, forging in anti-oxidation and no pollution environment, and mechanical. The company has strict quality request of the products of the processing and inspection (the product of high purity, uniform chemical composition, mechanical performance is good, good castability, high rate of moulds, good machining performance), the company's products fully meet the national standards ASTM / ASME 348 , ASTM / ASME SB381 etc.





Detailed imagies:

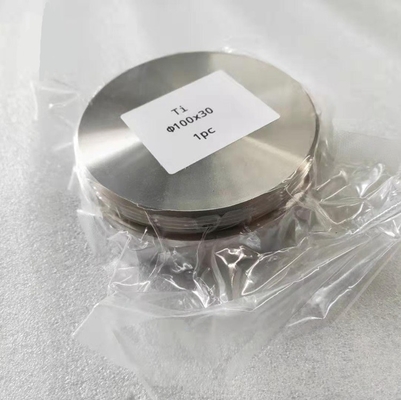

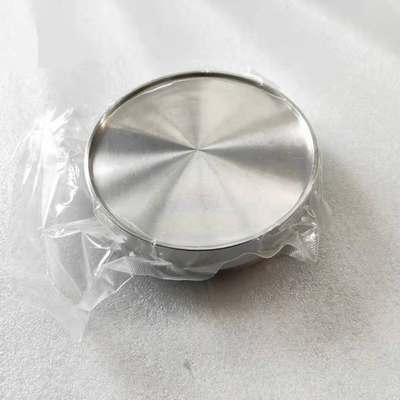

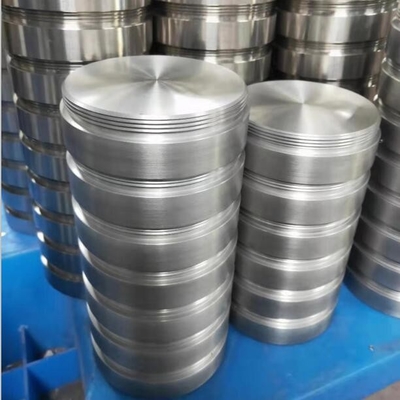

  Cylindrical PVD Titanium Target Sputtering 100 X 40mm 300 X 40mm 0Cylindrical PVD Titanium Target Sputtering 100 X 40mm 300 X 40mm 1Cylindrical PVD Titanium Target Sputtering 100 X 40mm 300 X 40mm 2

  target 07 (5)





Packaging and shipping:

In order to avoid extrusion deformation and bruise on the surface of titanium sputtering target during transportation, each titanium target is individually packed with vacuum packaging bag. The material and size of the corresponding products will be printed on each packaging bag to make it easy for customers to identify when they receive the goods.

ti target 07 (3)
