CNC Machined F2 Titanium Blind Flange UNS R50400 UNS R56400 with UT PT Testing and TUV SGS BV Certification

Brand Name:	LHTi
Model Number:	WN
MOQ:	1 pc
Price:	$35-258 / pc
Payment Terms:	L/C,T/T,D/P,D/A,Western Union
Supply Ability:	100000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China , Shaanxi , Baoji(The titanium valley of China)

Certification:

ISO9001:2015

Material:

Titanium Gr2 Gr5 Gr7

Standard:

ASME/ASTM B16.5

Class:

Class 150 Class 300 Class 600 Class 900 Class 1500

Quality Test:

UT,PT Etc.

MOQ:

1PC

The Third Party Test:

TUV,SGS,BV Etc.

Product Name:

CNC Machined UNS R50400 UNS R56400 F2 Titanium Flange Bl Blind Flange

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

100000 pcs per month

Highlight:

F2 Titanium Blind Flange

CNC Machined Titanium Blind Flange

UNS R56400 Titanium Flange

Product Description

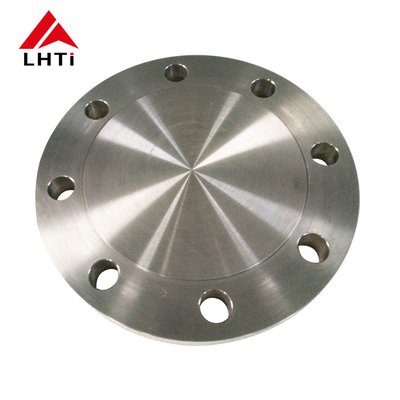

CNC Machined F2 Titanium Blind Flange UNS R50400 UNS R56400

CNC machined UNS R50400 UNS R56400 F2 Titanium Flange. Blind flange (BL flange) is a connection form of flange without a center hole. It serves to block pipeline ends and facilitates debris removal during maintenance. Unlike caps or plugs, blind flanges are bolted for easy installation and removal.

Product Specifications

Product Name:

Titanium Blind Flange

Standard:

ANSI / ASME B16.5

Material:

Gr1, Gr2, Gr5, Gr7, Gr12

Application:

Chemical industry

Unit Price:

$25 USD/pc - $85 USD/pc

Sealing Surface:

RF, FF, TG, RJ etc.

Size:

NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150# - 2500#

Surface:

Polished

Technique:

Forged and CNC Machined

Inspection:

UT%, PT%

Certificate:

ISO9001, TUV etc.

Quality Tests

Visual testing (VT)
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic particle testing (MT)
Penetrant Testing/Dye penetrate (PT)
Eddy Current testing (ET)
Acoustic Emission (AE)

Titanium Blind Flange Class 150 Dimensions

Nom. Pipe Size	Flange Dia.	Flange Thick	Raised Face Dia.	No. of Holes	Dia. of Bolts	Dia. Of Bolt Circle
1/2	3-1/2	7/16	1-3/8	4	1/2	2-3/8
3/4	3-7/8	1/2	1-11/16	4	1/2	2-3/4
1	4-1/4	9/16	2	4	1/2	3-1/8
1-1/4	4-5/8	5/8	2-1/2	4	1/2	3-1/2
1-1/2	5	11/16	2-7/8	4	1/2	3-7/8
2	6	3/4	3-5/8	4	5/8	4-3/4
2-1/2	7	7/8	4-1/8	4	5/8	5-1/2
3	7-1/2	15/16	5	4	5/8	6
3-1/2	8-1/2	15/16	5-1/2	8	5/8	7
4	9	15/16	6-3/16	8	5/8	7-1/2
5	10	15/16	7-5/16	8	3/4	8-1/2
6	11	1	8-1/2	8	3/4	9-1/2
8	13-1/2	1-1/8	10-5/8	8	3/4	11-3/4
10	16	1-3/16	12-3/4	12	7/8	14-1/4
12	19	1-1/4	15	12	7/8	17
14	21	1-3/8	16-1/4	12	1	18-3/4
16	23-1/2	1-7/16	18-1/2	16	1	21-1/4
18	25	1-9/16	21	16	1-1/8	22-3/4
20	27-1/2	1-11/16	23	20	1-1/8	25
24	32	1-7/8	27-1/4	20	1-1/4	29-1/2
