Polished Slip On Titanium Pipe Flange ASME B16.5 Gr F2 F5

Product Details

Place of Origin: China Baoji

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: SO flange

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: USD$25/pcs--USD$80/pcs

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 10 workday

Supply Ability: 5000pcs per month

Get Best Price
Highlight:

ASME B16.5 Titanium Pipe Flange

,

F5 Titanium Pipe Flange

,

Polished Pipe Slip On Flange

Material:
F2 F7 F12
Standard:
ANSI 16.5
Sealing Surface:
RF, FF, TG, RJ Etc.
Type:
BL WN SO PL TH Etc, Can Customize By Customers' Drawings
Application:
Pipe Fittings
Testing:
UT% PT%
Surface:
Polished
Product Name:
ASME B16.5 Gr F2 F5 F7150# 300# 600# Titanium Pipe Flange
Material:
F2 F7 F12
Standard:
ANSI 16.5
Sealing Surface:
RF, FF, TG, RJ Etc.
Type:
BL WN SO PL TH Etc, Can Customize By Customers' Drawings
Application:
Pipe Fittings
Testing:
UT% PT%
Surface:
Polished
Product Name:
ASME B16.5 Gr F2 F5 F7150# 300# 600# Titanium Pipe Flange
Polished Slip On Titanium Pipe Flange ASME B16.5 Gr F2 F5





 ASME B16.5 Gr F2 F5 F7150# 300# 600# Titanium pipe flange



Product name: Titanium pipe flange

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc

Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium

Type:BL WN SO PL TH etc, can customize by customers' drawings

Connection type:RF

Size:1/2"-60"(DN15-DN1200)

Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Price term: EXW factory, FOB, C&F and CIF

Payment term: T/T, L/C, West Union, Money Gram and etc



Physical Properties

Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR12 70 438 50 345 18



Quality & Inspection of Titanium Pipe Flange:

1. PMI test to verify material grade.

2. Dimension controlling during fabricating and finished.

3. All of the products have been 100% press tested before shipping.

4. Packed in Fumigation-free plywood box.

5. Third party inspection available.



Detailed images:

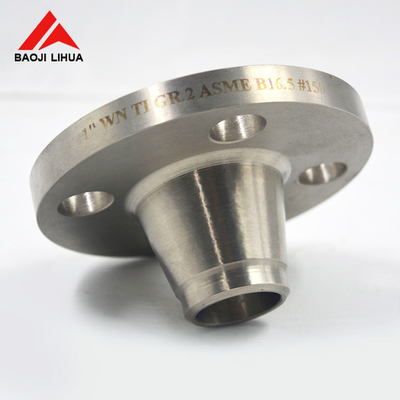

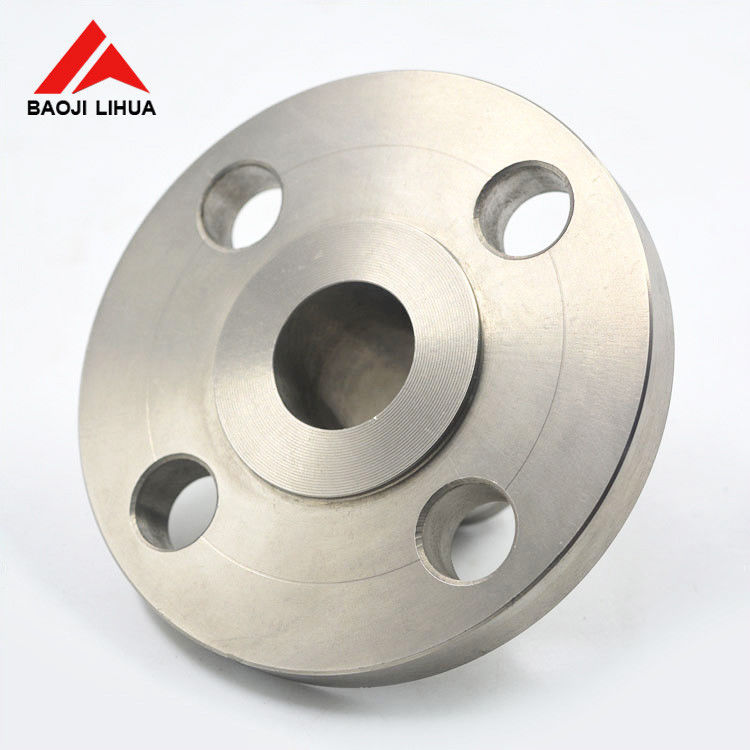

Titanium pipe flange



Packaging and shpping of Titanium Pipe Flange:

titanium flange packaging



Titanium flange production process:Polished Slip On Titanium Pipe Flange ASME B16.5 Gr F2 F5 2

About our company:

Baoji Lihua non-ferrous metals co.,ltd. founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing for titanium mill products and equipment. With 14 years production and export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628. Hamil metals was certified by ISO9001:2008 and IQNET. Many of our company's products have passed SGS,BV, LR'S ,TUV international inspection agency inspection.
