EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16

Name: EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: WN
Price: 107.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	WN
MOQ:	1 pc
Price:	$35-$180 / pc
Payment Terms:	L/C, T/T, D/P,D/A,Western Union
Supply Ability:	100000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China , Shaanxi , Baoji(The titanium valley of China)

Certification:

ISO9001:2015

Material:

Titanium Gr2

Type:

WN (weld Neck Flange)

Standard:

EN 1092-1

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

PN 6-PN 160

Quality Test:

UT,PT Etc.

MOQ:

1PC

The Third Party Test:

TUV,SGS,BV Etc.

Product Name:

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

100000 pcs per month

Highlight:

Type 11 Weld Neck Flange

F2 Gr2 Titanium Flange

Titanium WN Flange

Product Description

The EN 1092-1 Equivalent ASME is one of most common flanging used in the world. The EN 1092-1 Flange is used in industries like those of oil, gas & mining. Increasingly European rated EN 1092-1 Type 11 PN10 Flange is also specified in standards such as the BS4504 as well as AS4331 apart from the EN 1092-1. And EN 1092-1 Type 11 titanium weld neck flange is also one of our superior products.

Advantages of Titanium Flange EN1092-1

Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Long service life

Corrosion-resistant

High yeiled strength and tensile strength

Excellent strength to weight ratio

High temperature resistance

Low temperature resistance

Good thermal conductivity

Great malleability and weldability

Different Titanium Grade

grade	Tensile strength(min)	Yeild strength(min)	Elongation(%)
component	ksi	MPa	ksi	MPa
Gr1	Ta1	35	240	20	138	24
Gr2	Ta2	50	345	40	275	20
Gr5	Ti6Al4V	130	895	120	828	10
Gr7	Ti-0.2Pd	50	345	40	275	20
Gr9	Ti-3Al-2.5V	90	620	70	483	15
Gr12	Ti-0.3Mo-0.8Ni	70	483	50	345	18

Detailed images

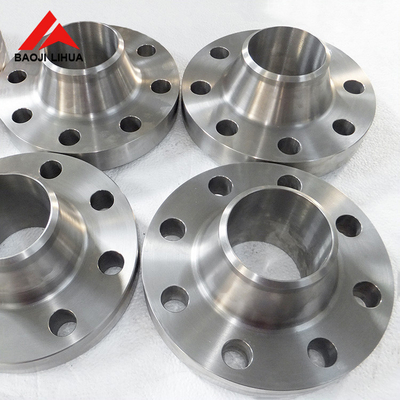

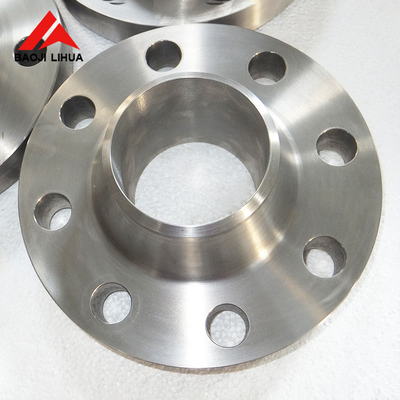

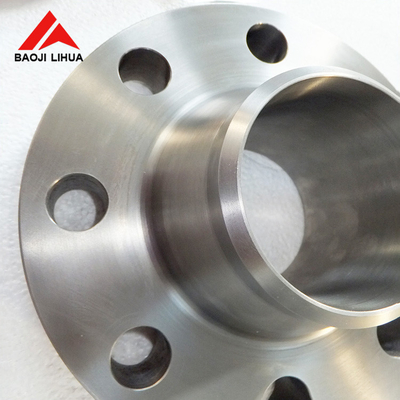

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 0

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 2

Our Factory

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 4

Application of Titanium Flange EN1092-1

Refineries

Gas Processing

Off-Shore Oil Drilling Companies

Petrochemicals

Paper & Pulp Companies

Power Generation

Specialty Chemicals

Pharmaceuticals

Water Pipe Line

General Piping

Construction

Engineering

Food Processing & Dairy

boiler & heatexchangers

Stock

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 5

Quality Inspection

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 6

Packaging

EN1092-1 Type 11 Weld Neck Flange F2 Gr2 Titanium Flange DN 100 PN16 7
