ASTM B381 F2 F5 ASME SB Titanium Grade 2 Slip On Flange For Pipe Fittings

Basic Information
Place of Origin: China Baoji
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: SO flange
Minimum Order Quantity: 5
Price: USD$25/pcs--USD$80/pcs
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 10 workday
Supply Ability: 5000pcs per month
Detail Information
Material: F2 F7 F12 Standard: ANSI 16.5
Sealing Surface: RF, FF, TG, RJ Etc. Type: SO Flange
Application: Pipe Fittings Testing: UT% PT%
Surface: Polished Product Name: ASTM B381 Gr F5 And ASME SB Titanium Grade 2 F2 Slip On Flange For Pipe Fittings
High Light:

Titanium Grade 2 Slip On Flange

,

Pipe Fittings Titanium Flanges

,

ASTM B381 Slip On Flange


Product Description

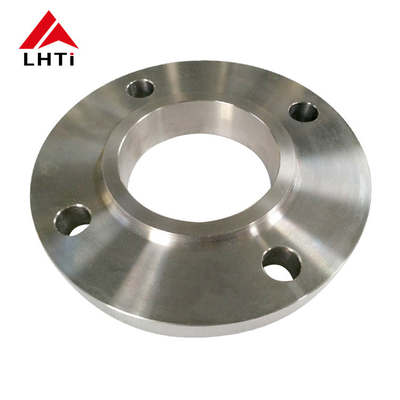

 ASTM B381 Gr F5 and ASME SB titanium Grade 2 F2 Slip On Flange for pipe fittings



Product Information



Product titanium slip on flange
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Standard ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Size 1/2''~80''(DN10~3600)
Pressure ANSI: Class 150-2500 DIN:PN6-PN250
Sealing Surface RF, FF, TG, RJ etc.
Technique Froged and CNC Machined



Specification



Titanium Slip On Flange Class 150
Nom. Pipe Size Flange Dia. Flange Thick Hub Dia. At Base Raised Face Dia. No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub
1/2 3-1/2 7/16 1-3/16 1-3/8 4 1/2 2-3/8 0.88 5/8
3/4 3-7/8 1/2 1-1/2 1-11/16 4 1/2 2-3/4 1.09 5/8
1 4-1/4 9/16 1-15/16 2 4 1/2 3-1/8 1.36 11/16
1-1/4 4-5/8 5/8 2-5/16 2-1/2 4 1/2 3-1/2 1.70 13/16
1-1/2 5 11/16 2-9/16 2-7/8 4 1/2 3-7/8 1.95 7/8
2 6 3/4 3-1/16 3-5/8 4 5/8 4-3/4 2.44 1
2-1/2 7 7/8 3-9/16 4-1/8 4 5/8 5-1/2 2.94 1-1/8
3 7-1/2 15/16 4-1/4 5 4 5/8 6 3.57 1-3/16
3-1/2 8-1/2 15/16 4-13/16 5-1/2 8 5/8 7 4.07 1-1/4
4 9 15/16 5-5/16 6-3/16 8 5/8 7-1/2 4.57 1-5/16
5 10 15/16 6-7/16 7-5/16 8 3/4 8-1/2 5.66 1-7/16
6 11 1 7-9/16 8-1/2 8 3/4 9-1/2 6.72 1-9/16
8 13-1/2 1-1/8 9-11/16 10-5/8 8 3/4 11-3/4 8.72 1-3/4
10 16 1-3/16 12 12-3/4 12 7/8 14-1/4 10.88 1-15/16
12 19 1-1/4 14-3/8 15 12 7/8 17 12.88 2-3/16
14 21 1-3/8 15-3/4 16-1/4 12 1 18-3/4 14.14 2-1/4
16 23-1/2 1-7/16 18 18-1/2 16 1 21-1/4 16.16 2-1/2
18 25 1-9/16 19-7/8 21 16 1-1/8 22-3/4 18.18 2-11/16
20 27-1/2 1-11/16 22 23 20 1-1/8 25 20.20 2-7/8
24 32 1-7/8 26-1/8 27-1/4 20 1-1/4 29-1/2 24.25 3-1/4



Advantages



Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Long service life

Corrosion-resistant

High yeiled strength and tensile strength

Excellent strength to weight ratio

High temperature resistance

Low temperature resistance

Good thermal conductivity

Great malleability and weldability



Detailed Images

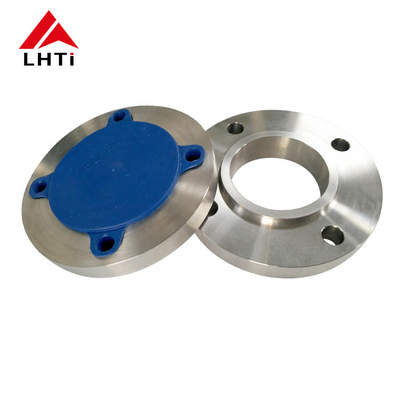

Titanium Slip On Flange Class 150ASTM B381 F2 F5 ASME SB Titanium Grade 2 Slip On Flange For Pipe Fittings 1

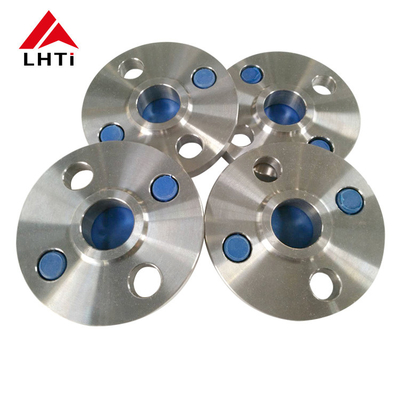

ASTM B381 F2 F5 ASME SB Titanium Grade 2 Slip On Flange For Pipe Fittings 2ASTM B381 F2 F5 ASME SB Titanium Grade 2 Slip On Flange For Pipe Fittings 3



Applications



Titanium Slip On Flange Class 150



Production Process



Titanium Slip On Flange Class 150



Related Products



Titanium Pipe

Titanium Elbow

Titanium Tee

Titanium Reducer

Titanium Stub End

Titanium Sockolet



Our Factory



Titanium Slip On Flange Class 150



Stock



Titanium Slip On Flange Class 150



Quality Inspection



Titanium Slip On Flange Class 150



Packaging



Titanium Slip On Flange Class 150
