Home > products > Weld Neck Flange > ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF

ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF

Product Details

Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: WN

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: $35 / pc

Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Delivery Time: 10-15 days

Payment Terms: L/C, T/T, D/P,D/A,Western Union

Supply Ability: 100000 pcs per month

Get Best Price
Highlight:

Gr2 Raised Face Flange

,

F2 Welding Neck Flange

,

Titanium Raised Face Flange

Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Product Name:
ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF
Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Product Name:
ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF
ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF



 ASTM B381 titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF



Titanium Grade 2 Flanges



Product Name: Titanium welding neck flange

Type:WN

Standard: ASME B16.5

Material: Gr2

Unit Price: $25usd/pc-$85usd/pc

Sealing Surface: RF, FF, TG, RJ etc.

Size: NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure: 150#-2500#

Surface: Polished

Technique: Forged and CNC Machined

Inspection: UT% , PT%

Certificate: ISO9001, TUV etc.



Chemical composition of Titanium grade 2 flanges (Wt%)



ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)



ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18

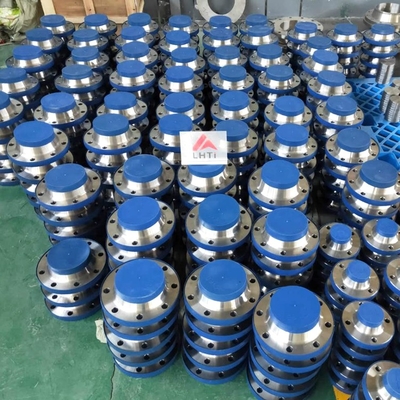

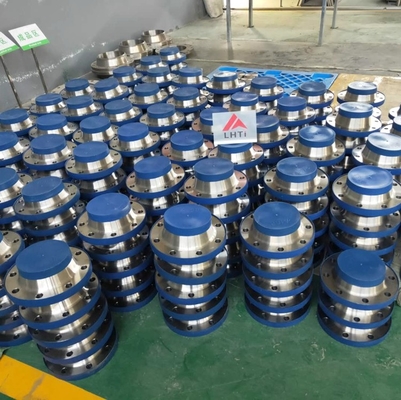

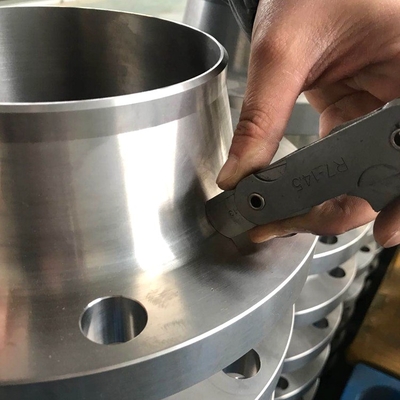

Detailed pictures

ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF 0ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF 1 ASTM B381 Titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF 2





Practical application of Titanium grade 2 flanges:



ASME B16.5 Titanium Blind Flange



Our Factory



Titanium Blind Flange Type 05



Our factory advantages:



The stock of commonly used titanium flanges is sufficient;

There are many titanium flange blanks, so production time is short;

There is our own machines in factory ,so titanium flange price is low, and quality is high.

Welcome to contact us in any time !



Stock



Titanium Blind Flange Type 05



Quality Inspection



Titanium Blind Flange Type 05



Packaging



Titanium Blind Flange Type 05
