Titanium Flange
Created with Pixso.

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj

Brand Name: LHTi
Model Number: WN
MOQ: 1 pc
Price: $35-258 / pc
Payment Terms: L/C, T/T, D/P,D/A,Western Union
Supply Ability: 100000 pcs per month
Detail Information
Place of Origin:
China , Shaanxi , Baoji(The titanium valley of China)
Certification:
ISO9001:2015
Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Size:
1/2''~80"
Class:
Class 150 Class 300 Class 600 Class 900 Class 1500
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Product Name:
ASME B16.5 Raised Face Reducing Gr. 2 Titanium 6" Rtj Welding Neck Flange
Packaging Details:
Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Supply Ability:
100000 pcs per month
Highlight:

Gr2 Titanium Welding Neck Flange

,

6" Welding Neck Flange

,

Raised Face Reducing Flange

Product Description

ASME B16.5 Raised face reducing Gr. 2 titanium 6" rtj welding neck flange



WN flange is not easy to deform and has good sealing so it is widely used. It has corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition. The distance between the welding port and the joint surface is large, and the joint surface is protected from welding temperature deformation. The horn-shaped body structure is suitable for pipelines with large fluctuations in pressure or temperature or high temperature, high pressure and low temperature pipelines. It is generally used for the connection of pipelines and valves with a PN greater than 2.5MPa; it is also used for transporting expensive, flammable and explosive On the pipeline of the medium.

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 0

Product Information of Titanium WN Flange

Product titanium weld neck flange
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Standard ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material Gr1, Gr2, Gr5, Gr7, Gr12
Size 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface RF, FF, TG, RJ etc.
Technique Froged and CNC Machined



Related Products

  • Titanium Elbow

  • Titanium Tee

  • Titanium Reducer

  • Titanium Stub End

  • Titanium Sockolet

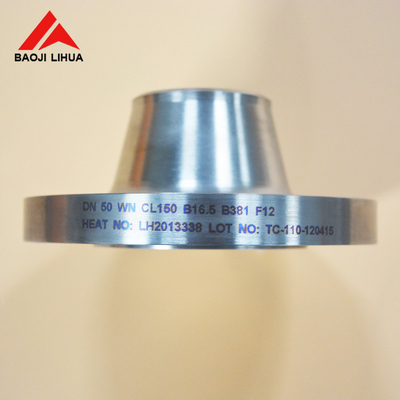

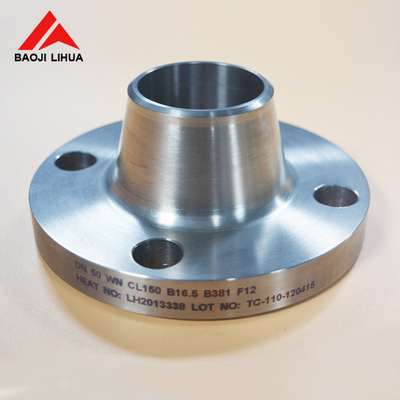

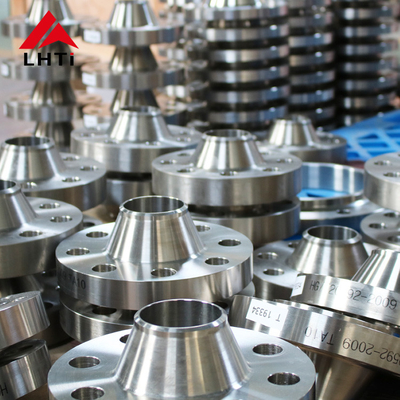

Detailed images of titanium WN flange:

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 1

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 26" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 36" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 4



Machining process/ production process of titanium flanges:6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 5

6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 66" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 7

About our company:6" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 86" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 96" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 106" Titanium Raised Face Reducing Welding Neck Flange ASME B16.5 Gr2 Rtj 11
