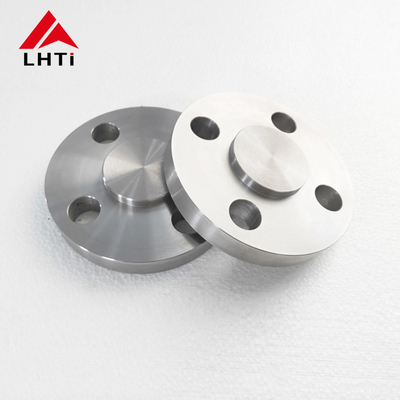

BL SO WN PL Alloy Titanium Pipe Flange For Machinery Chemical Industry

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price
Highlight:

Chemical Industry Titanium Flange

,

Alloy Titanium Pipe Flange

,

WN Titanium Pipe Flange

Product Name:
Ansi Titanium Blind Flange
Standard:
ANSI B16.5
Material:
Gr2, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Froged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product Name:
Ansi Titanium Blind Flange
Standard:
ANSI B16.5
Material:
Gr2, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Froged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
BL SO WN PL Alloy Titanium Pipe Flange For Machinery Chemical Industry





Titanium flange Ti alloy Flange pipe flange BL SO WN PL used in machinery and chemical industry.



BL SO WN PL Alloy Titanium Pipe Flange For Machinery Chemical Industry 0Flange is widely used in water conservancy, electric power, power station, pipe fittings, industry, pressure vessel, etc. Titanium flange is a kind of flange processed by forging process, made of titanium material, which is generally used in machinery and chemical industry.Besides titanium flanges, we can also manufacture nickel flange, zirconium flange etc.



ASME B16.47 titanium flange

Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,

Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc

Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc

Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)

MOQ: 1 piece

Price term:EXW factory, FOB, C&F and CIF

Payment term: T/T, L/C, West Union, Money Gram and etc

Package: Standard exporT plywood case or as you requested

Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.

Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc



Physical Properties



Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18


We can manufacture different type titanium flanges:

Titanium flange

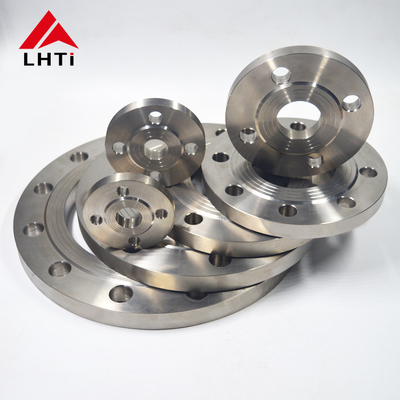

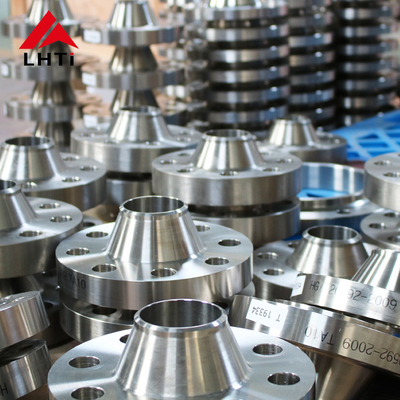

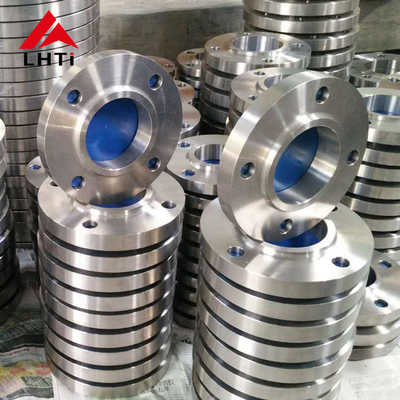

Detailed images:

PL Titanium FlangeTitanium SO Flange (2)

gr2 titanium flange

Quality inspections:

For titanium flange, we generally do these quality tests: chemical composition analysis, physical performance test, UT, etc

high quality titanium flange

our companyTitanium Factory 3

Based on international and domestic industrial standards and customer requirements, we set up higher internal quality assurance standards to implement comprehensive and full quality management.Our factory always arrange PMI and physical properties inspection for all incoming materials.We strictly performance the ultrasonic testing for each titanium flange according to the worldwide standards and customer requirements.Additional test such as radiographic testing, hardness testing ect can be arranged upon request.We will never allow any defective products leave from the factory.

Equipment



Advantages of our factory:

1. Used grade 1 titanium sponge as raw material to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.

2. Forged valve body and disc to control the leakage and visual.

3. Superior facilities and good experiences for fabrication.

4. In ability to improve and develop new design.

5. Fast delivery is possible to meet your needs well in time.

6. Low cost from bulk production will reduce your budget and improve your business.

7.Professional export team and long-term after-sales service

Welcome to send inquiry !
