Product Details
Place of Origin: China Baoji
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: SO flange
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: USD$25/pcs--USD$80/pcs
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 10 workday
Supply Ability: 5000pcs per month
Material: |
F2 F7 F12 |
Standard: |
ANSI 16.5 |
Sealing Surface: |
RF, FF, TG, RJ Etc. |
Type: |
SO Flange |
Application: |
Pipe Fittings |
Testing: |
UT% PT% |
Surface: |
Polished |
Product Name: |
Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 SO Slip On Titanium Flange RF Ø2" 300# |
Material: |
F2 F7 F12 |
Standard: |
ANSI 16.5 |
Sealing Surface: |
RF, FF, TG, RJ Etc. |
Type: |
SO Flange |
Application: |
Pipe Fittings |
Testing: |
UT% PT% |
Surface: |
Polished |
Product Name: |
Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 SO Slip On Titanium Flange RF Ø2" 300# |
Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 SO Slip on Titanium flange RF Ø2" 300#
Titanium Slip On Flange is widely used in petrochemical, oil and gas, power generation, bulk liquid transportation, chemical, pharmaceutical, pulp and paper, textiles and other industries. All of our Titanium Flanges are manufactured according to international standards. Titanium Flanges are packed to ensure that they are not damaged during shipment. For export, standard export packaging is done in plywood boxes. All Titanium Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. We also accept customized markings on Titanium Flanges.
ANSI B16.5 Titanium Slip On Flange
Product Name: Titanium SO Flange
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Application: Chemical industry
Sealing Surface: RF, FF, TG, RJ etc.
Size: 1/2''~80''(DN10~3600)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ:1PC
| ANSI B16.5 Titanium Slip On Flange Class 150 | |||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick | Hub Dia. At Base | Raised Face Dia. | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-1/2 | 7/16 | 1-3/16 | 1-3/8 | 4 | 1/2 | 2-3/8 | 0.88 | 5/8 |
| 3/4 | 3-7/8 | 1/2 | 1-1/2 | 1-11/16 | 4 | 1/2 | 2-3/4 | 1.09 | 5/8 |
| 1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 4 | 1/2 | 3-1/8 | 1.36 | 11/16 |
| 1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 4 | 1/2 | 3-1/2 | 1.70 | 13/16 |
| 1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 4 | 1/2 | 3-7/8 | 1.95 | 7/8 |
| 2 | 6 | 3/4 | 3-1/16 | 3-5/8 | 4 | 5/8 | 4-3/4 | 2.44 | 1 |
| 2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 4 | 5/8 | 5-1/2 | 2.94 | 1-1/8 |
| 3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 4 | 5/8 | 6 | 3.57 | 1-3/16 |
| 3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 8 | 5/8 | 7 | 4.07 | 1-1/4 |
| 4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 8 | 5/8 | 7-1/2 | 4.57 | 1-5/16 |
| 5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 8 | 3/4 | 8-1/2 | 5.66 | 1-7/16 |
| 6 | 11 | 1 | 7-9/16 | 8-1/2 | 8 | 3/4 | 9-1/2 | 6.72 | 1-9/16 |
| 8 | 13-1/2 | 1-1/8 | 9-11/16 | 10-5/8 | 8 | 3/4 | 11-3/4 | 8.72 | 1-3/4 |
| 10 | 16 | 1-3/16 | 12 | 12-3/4 | 12 | 7/8 | 14-1/4 | 10.88 | 1-15/16 |
| 12 | 19 | 1-1/4 | 14-3/8 | 15 | 12 | 7/8 | 17 | 12.88 | 2-3/16 |
| 14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 12 | 1 | 18-3/4 | 14.14 | 2-1/4 |
| 16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16 | 1 | 21-1/4 | 16.16 | 2-1/2 |
| 18 | 25 | 1-9/16 | 19-7/8 | 21 | 16 | 1-1/8 | 22-3/4 | 18.18 | 2-11/16 |
| 20 | 27-1/2 | 1-11/16 | 22 | 23 | 20 | 1-1/8 | 25 | 20.20 | 2-7/8 |
| 24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 20 | 1-1/4 | 29-1/2 | 24.25 | 3-1/4 |
| ANSI B 16.5 Titanium Slip On Flange Class 300 | |||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick | Hub Dia. At Base | Raised Face Dia. | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-3/4 | 9/16 | 1-1/2 | 1-3/8 | 4 | 1/2 | 2-5/8 | 0.88 | 7/8 |
| 3/4 | 4-5/8 | 5/8 | 1-7/8 | 1-11/16 | 4 | 5/8 | 3-1/4 | 1.09 | 1 |
| 1 | 4-7/8 | 11/16 | 2-1/8 | 2 | 4 | 5/8 | 3-1/2 | 1.36 | 1-1/16 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 2-1/2 | 4 | 5/8 | 3-7/8 | 1.70 | 1-1/16 |
| 1-1/2 | 6-1/8 | 13/16 | 2-3/4 | 2-7/8 | 4 | 3/4 | 4-1/2 | 1.95 | 1-3/16 |
| 2 | 6-1/2 | 7/8 | 3-5/16 | 3-5/8 | 8 | 5/8 | 5 | 2.44 | 1-5/16 |
| 2-1/2 | 7-1/2 | 1 | 3-15/16 | 4-1/8 | 8 | 3/4 | 5-7/8 | 2.94 | 1-1/2 |
| 3 | 8-1/4 | 1-1/8 | 4-5/8 | 5 | 8 | 3/4 | 6-5/8 | 3.57 | 1-11/16 |

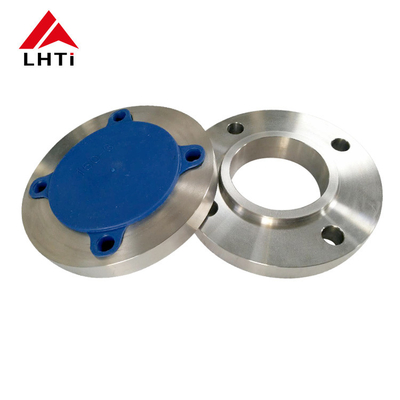

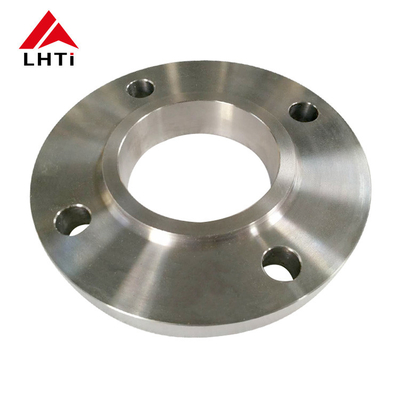

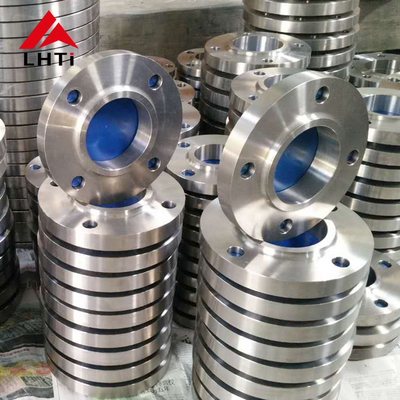

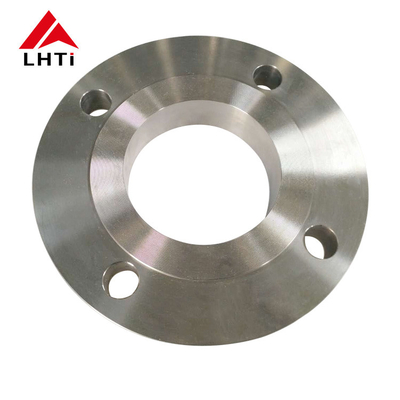

Detailed Images of ANSI B16.5 Titanium Slip On Flange
Package of Titanium Flange
