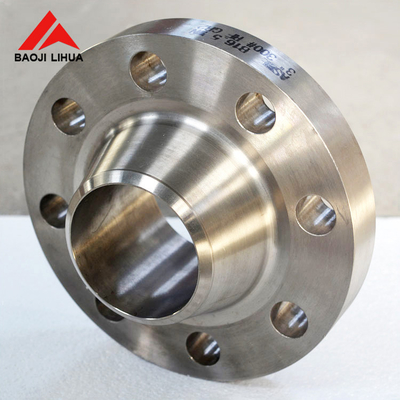

EN 1092-1 Gr2 Titanium Weld Neck Flange Class 150 For Oil And Gas Pipeline

Basic Information
Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: WN
Minimum Order Quantity: 1 pc
Price: $35-$180 / pc
Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P,D/A,Western Union
Supply Ability: 100000 pcs per month
Detail Information
Material: Titanium Gr2 Type: WN (weld Neck Flange)
Standard: EN 1092-1 Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: PN 6-PN 160 Quality Test: UT,PT Etc.
MOQ: 1PC The Third Party Test: TUV,SGS,BV Etc.
Product Name: EN 1092-1 Gr2 Titanium Flange Class 150 Used In Oil And Gas Pipeline
High Light:

Gas Pipeline Weld Neck Flange

,

EN 1092-1 Weld Neck Flange

,

Oil Pipeline Gr2 Titanium Flange


Product Description

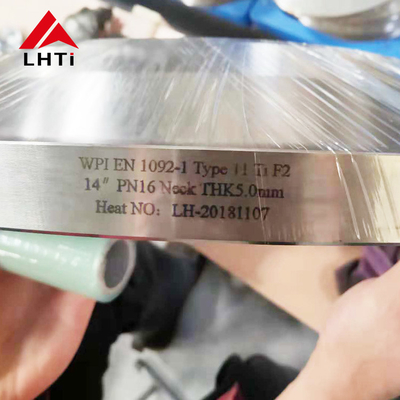

Titanium Flange EN1092-1



The EN 1092-1 Equivalent ASME is one of most common flanging used in the world. The EN 1092-1 Flange is used in industries like those of oil, gas & mining. Increasingly European rated EN 1092-1 Type 11 PN10 Flange is also specified in standards such as the BS4504 as well as AS4331 apart from the EN 1092-1. And EN 1092-1 Type 11 titanium weld neck flange is also one of our superior products.



Advantages of Titanium Flange EN1092-1



Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Long service life

Corrosion-resistant

High yeiled strength and tensile strength

Excellent strength to weight ratio

High temperature resistance

Low temperature resistance

Good thermal conductivity

Great malleability and weldability



Different Titanium Grade



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18





Titanium flange 651



Applications



ASME Titanium Flanges



Production Process



ASME Titanium Flanges



Our Factory



Baoji Lihua Non-ferrous Metals Co., Ltd. has been engaged in the production and export of titanium flanges for more than 15 years, and can produce standard size titanium flanges in accordance with ASME/ANSI, DIN, JIS, EN 1092-1 and other standards. Special-shaped flanges can also be customized according to customer drawings. Welcome to send drawings and customize non-standard flanges.

Titanium forging products include titanium flanges, titanium forged disc/disk/cake, titanium forged rings, titanium blocks and so on. While we provide our customers with good quality products, we guarantee that the price is a competitive in the market.

factory8

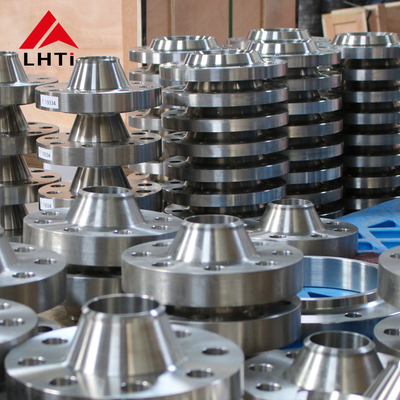

Stock



ASME Titanium Flanges



Quality Inspection



ASME Titanium Flanges



Packaging



ASME Titanium Flanges
