Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400

Name: Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: WN
Price: 35 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	WN
MOQ:	1 pc
Price:	$35 / pc
Payment Terms:	L/C, T/T, D/P,D/A,Western Union
Supply Ability:	100000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China , Shaanxi , Baoji(The titanium valley of China)

Certification:

ISO9001:2015

Material:

Titanium Gr2 Gr5 Gr7

Type:

WN (weld Neck Flange)

Standard:

ASME/ASTM B16.5

Class:

CL300

Size:

2" Sch.20s

Quality Test:

UT,PT Etc.

MOQ:

1PC

The Third Party Test:

TUV,SGS,BV Etc.

Product Name:

Gr2 Gr7 Gr12 WN Titanium Reducing Weld Neck Flanges Pipe Fitting 2" Sch.20s Class 300

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

100000 pcs per month

Highlight:

Titanium Raised Faced Flange

UNS R50400 Titanium Weld Neck Flange

Raised Faced Weld Neck Flange

Product Description

Welding Neck Flanges

Product Information

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Froged and CNC Machined

Functions

1. Flange, gasket and bolts are connected to each other as a detachable connection of a combined sealing structures.

2. Flange connection is an important connection method for pipeline construction.

3. The flange connection is easy to use and can withstand large pressures.

Different Titanium Grade

grade	Tensile strength(min)			Yeild strength(min)		Elongation(%)
grade	component	ksi	MPa	ksi	MPa
Gr1	Ta1	35	240	20	138	24
Gr2	Ta2	50	345	40	275	20
Gr5	Ti6Al4V	130	895	120	828	10
Gr7	Ti-0.2Pd	50	345	40	275	20
Gr9	Ti-3Al-2.5V	90	620	70	483	15
Gr12	Ti-0.3Mo-0.8Ni	70	483	50	345	18

Detailed Images

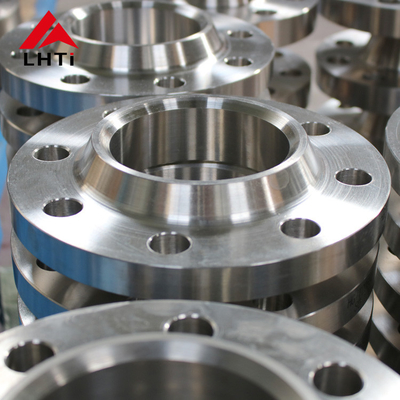

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 0

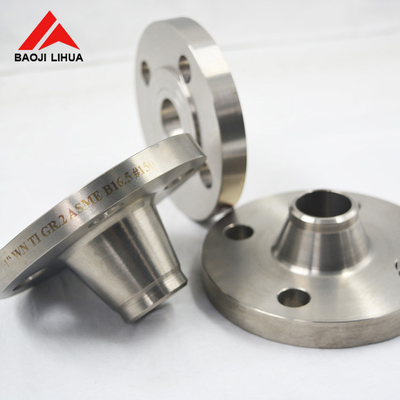

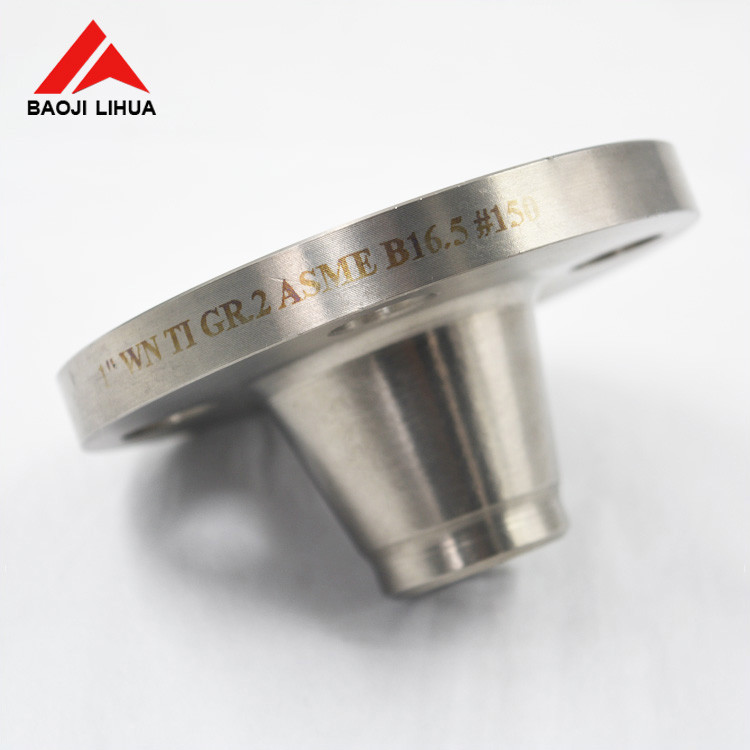

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 1

Applications

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 3

Production Process

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 4

Our Factory

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 5

Stock

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 6

Quality Inspection

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 7

Packaging

Titanium Gr2 Raised Faced Weld Neck Flange WN ASME B16.5 UNS R50400 8
