Home > products > Weld Neck Flange > Grade 2 Titanium Weld Neck Ring Flange WNRF ASME SB381

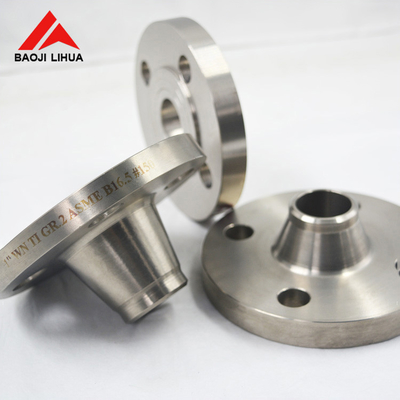

Grade 2 Titanium Weld Neck Ring Flange WNRF ASME SB381

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-WN

Payment & Shipping Terms

Minimum Order Quantity: 5 Pieces

Price: US dollar $25/pc--US dollar $85/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 Working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

Weld Neck Ring Flange

,

WNRF Ring Flange

,

Grade 2 Titanium Weld Neck Flange

Product Name:
ASTM Titanium Flange
Standard:
ASTM/ASME B16.5
Material:
Gr1, Gr2, Gr5, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF, FF, TG, RJ Etc.
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product Name:
ASTM Titanium Flange
Standard:
ASTM/ASME B16.5
Material:
Gr1, Gr2, Gr5, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF, FF, TG, RJ Etc.
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1

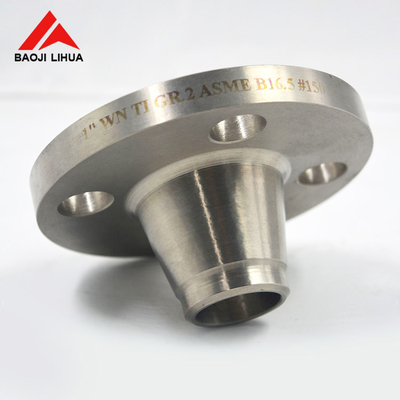

Grade 2 Titanium Weld Neck Ring Flange WNRF ASME SB381



Gr2 Titanium Weld Neck Flange



Product name: Gr2 Titanium weld neck flange

Type: WNRF

Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.

size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Technique: Forged and CNC Machined.

Advantages: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength.



Drawing



Weld-Neck-Flange-(2)



Other flange type:



Products Size
Titanium Threaded Flanges Titanium Reducing Flanges

1/8’’ - 36’’

Raised Face or Flat Face

Titanium Blind Flanges Titanium Plate Flanges
Titanium Slip-On Flanges Titanium Forged Flanges
Titanium Lap Joint Flanges Titanium Socket Weld Flanges



Tensile requirements



Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18

Titanium weld neck flangeGr2 Titanium weld neck flangeGr2 Titanium weld neck flange (2)



Applications



ASME B16.5 Titanium Weld Neck Flange



Production Process



ASME B16.5 Titanium Weld Neck Flange



Our Factory



ASME B16.5 Titanium Weld Neck Flange

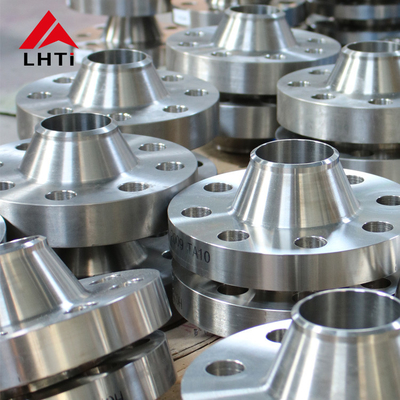

Stock



Titanium Weld Neck Flange



Quality Inspection



ASME B16.5 Titanium Weld Neck Flange



Packaging
