Product Details
Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: WN
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: $35 / pc
Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P,D/A,Western Union
Supply Ability: 100000 pcs per month
Material: |
Titanium Gr2 |
Type: |
BL (blind Flange) |
Standard: |
ASME/ASTM B16.5 |
Class: |
CL300 |
Size: |
2" Sch.20s |
Quality Test: |
UT,PT Etc. |
MOQ: |
1PC |
The Third Party Test: |
TUV,SGS,BV Etc. |
Product Name: |
ASME B16.5 BL RF Titanium Blind Flange 4" Class 300 UNS R50400 Pipe Flanges |
Material: |
Titanium Gr2 |
Type: |
BL (blind Flange) |
Standard: |
ASME/ASTM B16.5 |
Class: |
CL300 |
Size: |
2" Sch.20s |
Quality Test: |
UT,PT Etc. |
MOQ: |
1PC |
The Third Party Test: |
TUV,SGS,BV Etc. |
Product Name: |
ASME B16.5 BL RF Titanium Blind Flange 4" Class 300 UNS R50400 Pipe Flanges |

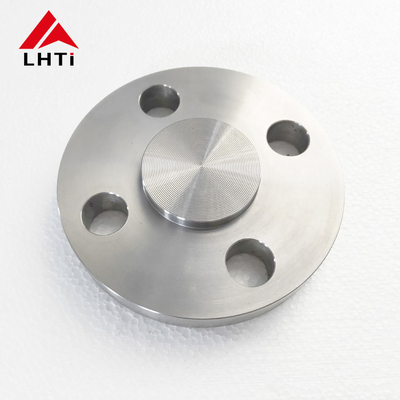

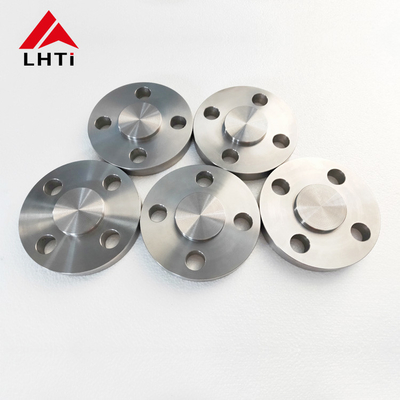

Titanium Blind Flanges
| Product name | Titanium blind flanges |
| Flange Type | BL |
| Standard | ANSI B16.5,ANSI B16.47A, ANSI B16.47 |
| Size | 1/2''~60'' |
| Class Rating | 150~20000LBS |
| Material | Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12) |
| Manufacturing process | Forged, CNC machined |
| Surface | CNC machined polished |
| Facing | RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face),TG(tongue and groove face);MFM(male and female face) |
| Application | Pipe connections for chemical and petrochemical equipment. It has low density and performs impressively in corrosive environments. |
Dimensional Tolerances of Blind Flanges ASME B16.5
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm | Inside Diameter not applicable |
| Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm | Outside Diameter of Hub 2≤ 1 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore not applicable | Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 | Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm |
| Titanmium Bind flange |
Applications
Production Process
Our Factory
Stock
Quality Inspection
Packaging
Advantages of our factory
1. Used grade 1 titanium sponge as raw material to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.
2. Forged valve body and disc to control the leakage and visual.
3. Superior facilities and good experiences for fabrication.
4. In ability to improve and develop new design.
5. Fast delivery is possible to meet your needs well in time.
6. Low cost from bulk production will reduce your budget and improve your business.
7.Professional export team and long-term after-sales service
We are always available. Welcome to contact us!
