Product Details
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: USD35-48.500 per kg
Packaging Details: Packing products in wooden case.
Delivery Time: 10-15 days
Supply Ability: 5 Ton per month
Product Name: |
Titanium Sheet |
Unit Price: |
$15.5-$36.9/kg |
Material: |
Titanium Grade 5 (Ti6al4v) |
Standard: |
ASTM/ASME B265 AMS 4911 ASTM F136 |
Demension: |
Thickness*1000*2000mm Thickness*3000*6000mm (Standard Size); |
Thickness: |
0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm Etc Br>Technique : Rolled |
Status: |
Annealed(M) |
MTC: |
EN10204.3.1 Certificate |
MOQ: |
10kgs |
Applications: |
Petroleum ,chemical Industry, Marine, Medical |
Package: |
Standard Export Packaging, Inside Foam Film And Pearl Cotton Protection, Outside Fumigation-free Plywood Case. Customized Size Welcome. Hot Rolled Titanium Plate Titanium Plate Gr5 Grade 5 Titanium Plate Titanium Alloy Plate Ti6al4v Plate |
Product Name: |
Titanium Sheet |
Unit Price: |
$15.5-$36.9/kg |
Material: |
Titanium Grade 5 (Ti6al4v) |
Standard: |
ASTM/ASME B265 AMS 4911 ASTM F136 |
Demension: |
Thickness*1000*2000mm Thickness*3000*6000mm (Standard Size); |
Thickness: |
0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm Etc Br>Technique : Rolled |
Status: |
Annealed(M) |
MTC: |
EN10204.3.1 Certificate |
MOQ: |
10kgs |
Applications: |
Petroleum ,chemical Industry, Marine, Medical |
Package: |
Standard Export Packaging, Inside Foam Film And Pearl Cotton Protection, Outside Fumigation-free Plywood Case. Customized Size Welcome. Hot Rolled Titanium Plate Titanium Plate Gr5 Grade 5 Titanium Plate Titanium Alloy Plate Ti6al4v Plate |

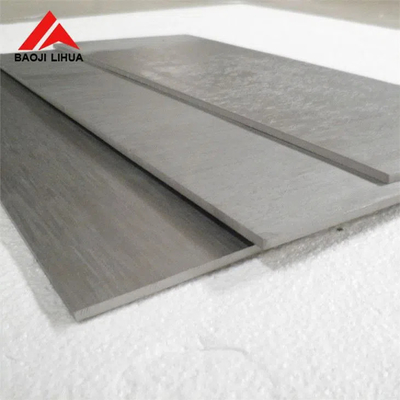

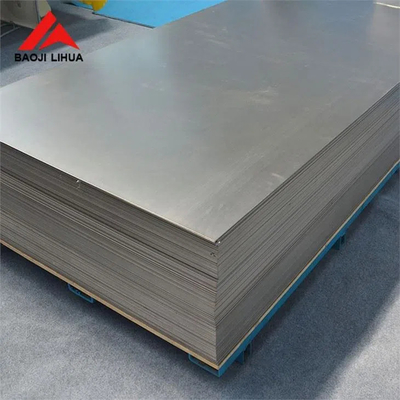

10mm Titanium Sheet Grade 5
Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.
Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg
Material: Titanium Grade 5 (Ti6al4v)
Standard: ASTM/ASME B265, AMS 4911, ASTM F136
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Technique : Rolled
Status: Annealed(M)
MTC: EN10204.3.1 certificate
| Grade 5 (Ti6Al4V) titanium sheet/plate | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Remainder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
| Physical properties(>=) | ||||
|
Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%)
|
ψ Reduction of area (%) |
|
| 895 | 830 | 12 | 25 | |
Detailed images:
The production process of titanium plates/sheets:
About our company:
